Milan 500mm basin | BB Whitebook

Welcome to the Bathroom Brands Technical Whitebook

Milan 500mm basin

asaq2.Model.Web_product_new?.web_name

Product Options

pedestal options

Milan 500mm basin with full pedestal

full pedestal

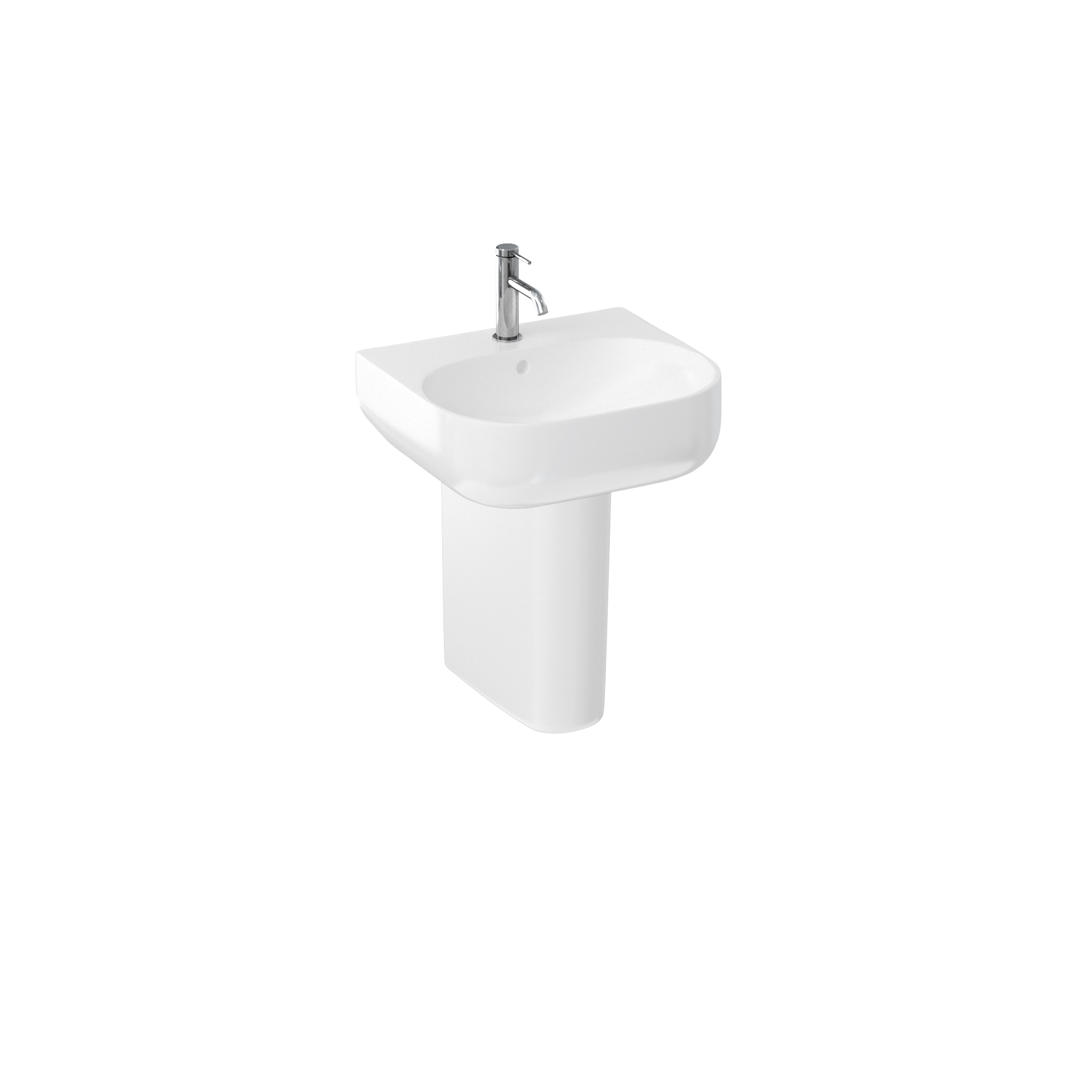

Milan 500mm basin with semi pedestal

semi pedestal

Alternate Text

As Shown

MAR0002 Milan Washbasin 500mm 1TH

FP1032 Round full pedestal

Colour

MAR0002 - basin - Gloss White

FP1032 - pedestal - Gloss White

Material

MAR0002 - basin - Vitreous China

FP1032 - pedestal - Vitreous China

Size

MAR0002 - 450 x 500 x 173mm

FP1032 - 163 x 190 x 690mm

Nett Weight

MAR0002 - basin - 15.15kg

FP1032 - pedestal - 13.4kg

Gross Weight Including Packaging

MAR0002 - basin - 16.75kg

FP1032 - pedestal - 14.4kg

Packed Dimension

MAR0002 - 530 x 192 x 475 = 0.0483 m3

FP1032 - 735 x 230 x 222 = 0.0375 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14688:2015

BS EN 31:2011

SP1714

basin fixings for Burlington & Britton basins

Downloads

2D CAD-File - DWG - MAR.0002 (MAR.0002_FP.1032.dwg)

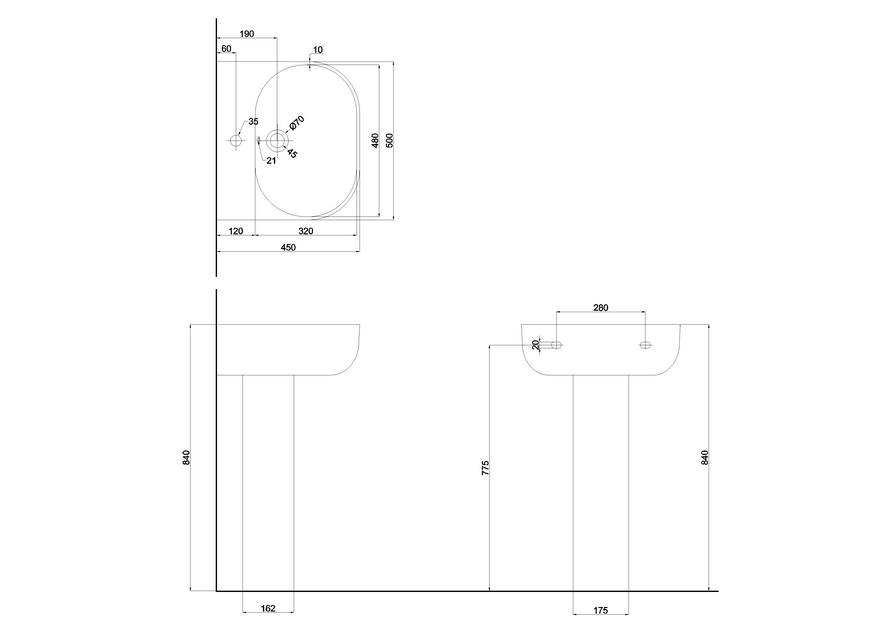

2D Drawing - PDF - MAR.0002 (MAR.0002_FP.1032.pdf) 2D Drawing - PDF - MAR.0002

3D RFA BIMM Objects - File - RFA - MAR.0002 (MAR.0002_FP.1032.rfa)
3D DWG - File - DWG - MAR.0002 (MAR.0002_FP.1032.dwg)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
