Milan close-coupled WC

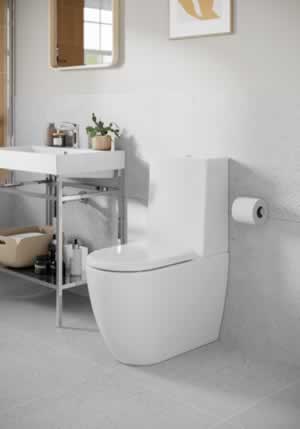

As Shown
| 15B35307 Milan Rimless Close Coupled WC and seat excluding cistern tank |
| MAR0006 Milan Cistern With Lid (including dual flush cistern fittings with back entry cut) |
Nett Weight
| 15B35307 - pan - 39kg |
| MAR0006 - cistern - 13.35kg |
Gross Weight Including Packaging
| 15B35307 - pan - 44kg |
| MAR0006 - cistern - 15kg |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Dual flush cistern fittings. Push large button down for 6 litre flush and small button for 3 litre flush. |
| SP173 | dual Flush Button of the cistern fittings for CC.1036 & CC.1980 |
| SP1269 | dual Flush valve of universal cistern fitting SP697 |
| SP1308 | floor fixings for Sphere, Stadium, Milan pans - chrome |
| SP697 | full set of cistern fittings for CC.1036, CM.0007, SPH002, 15.B.27353, 15.B.27349 |
| SP504 | inlet valve for Britton close coupled cisterns |
| MAR0014 | slimline soft close WC seat for Milan |
Downloads
- Instructions - PDF - 15B35307 (English)
- Instructions - PDF - MAR0006 (English)
- Instructions - PDF - 15B35307 (French)
- Instructions - PDF - MAR0006 (French)
-
2D CAD-File - DWG -
15.B.35307 MAR.0006
(15.B.35307_MAR.0006.dwg)
-

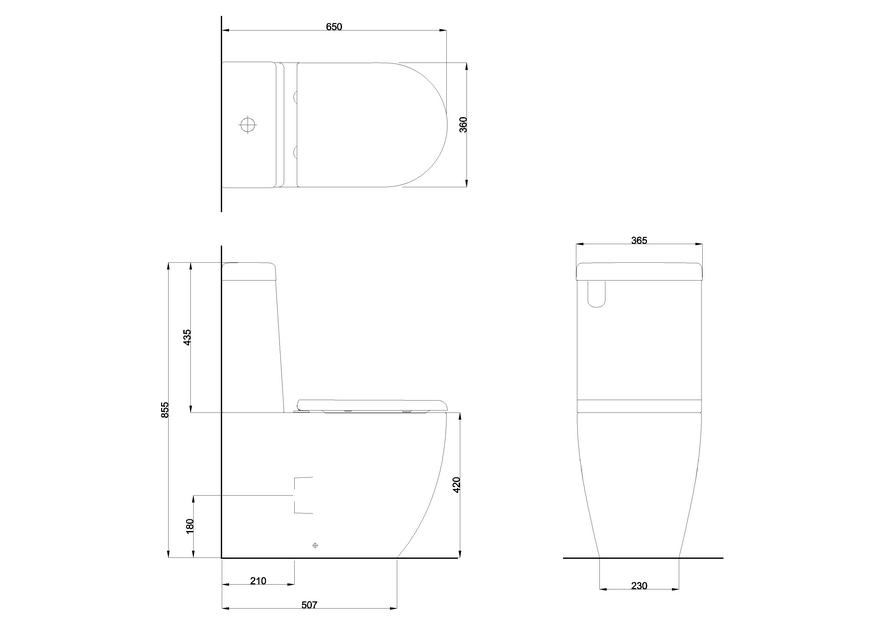

2D Drawing - PDF -
15.B.35307 MAR.0006
(15.B.35307_MAR.0006.pdf)
2D Drawing - PDF - 15.B.35307 MAR.0006
-
3D RFA BIMM Objects - File - RFA
-
15.B.35307 MAR.0006
(MAR.0006_15.B.35307.rfa)
- 3D DWG - File - DWG - MAR0006 (MAR.0006.dwg)
- 3D DWG - File - DWG - 15B35307 (15.B.35307.dwg)
