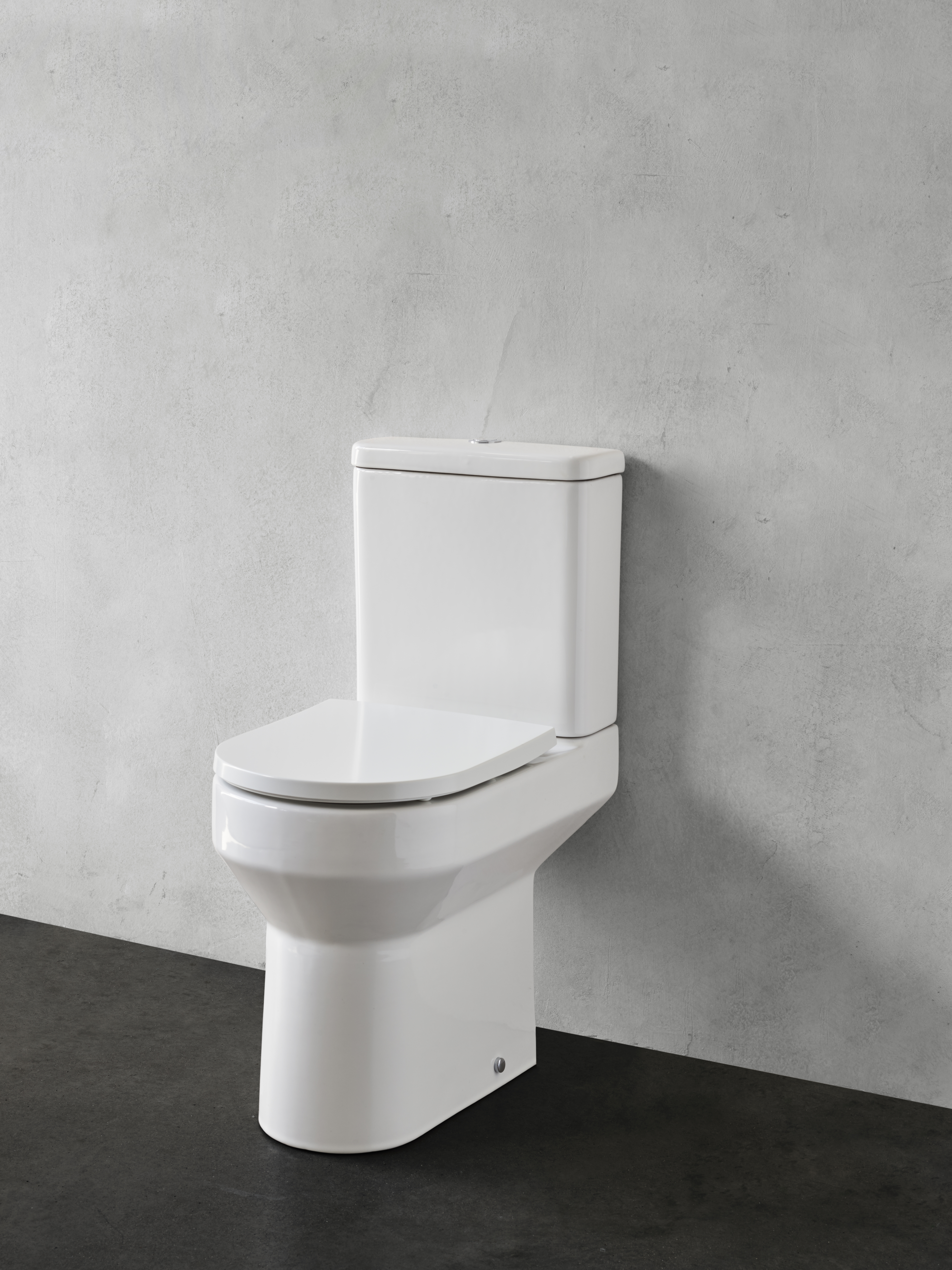

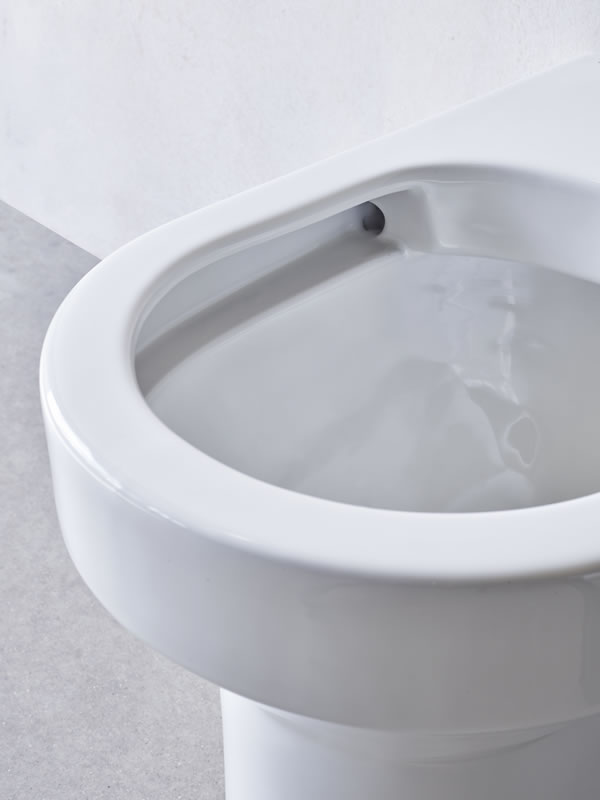

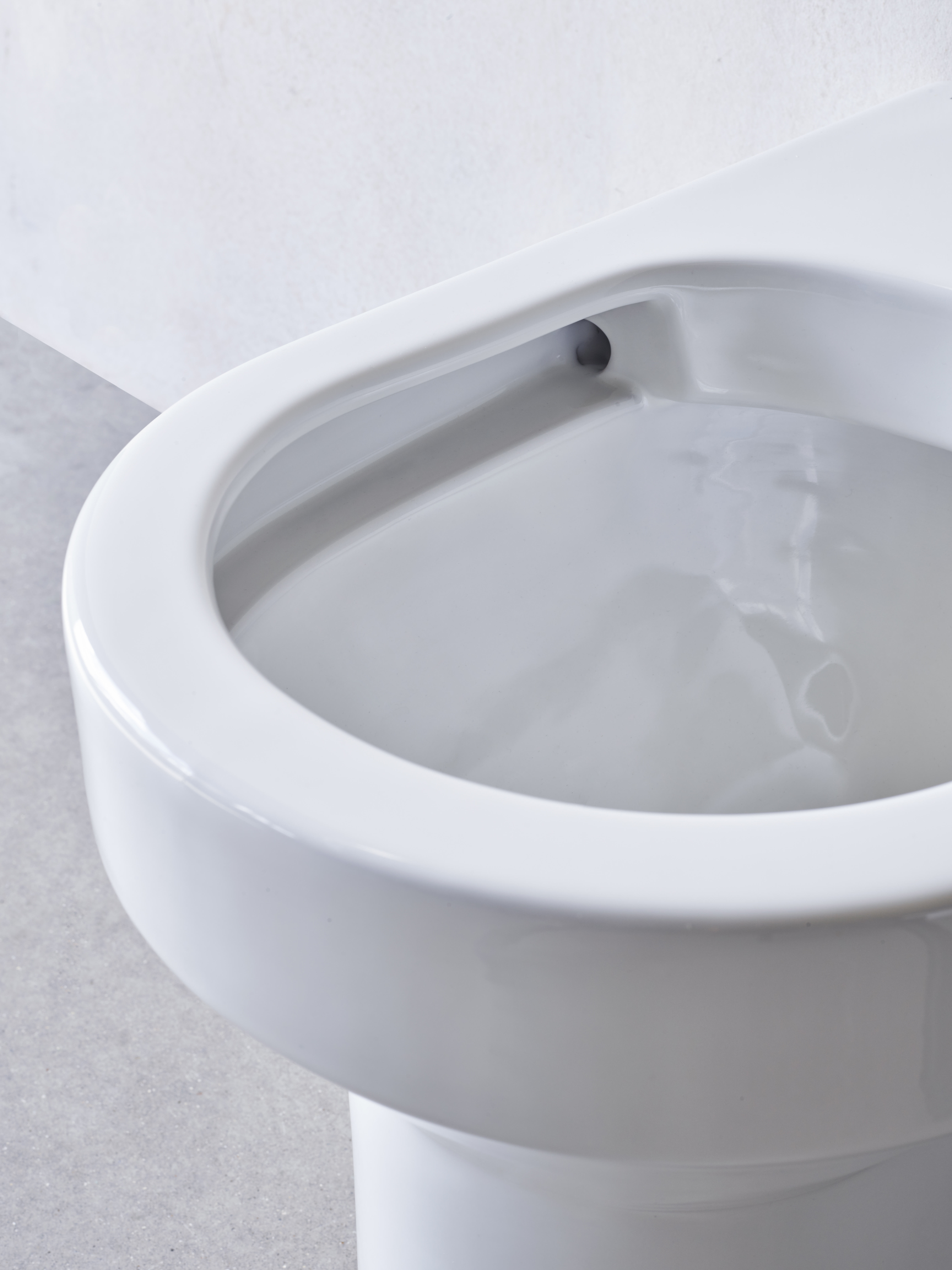

Shoreditch Round Close Coupled Rimless Pan and soft close seat
As Shown
| SHR.044 Shoreditch Round Close Coupled Rimless Pan and soft close seat |
| SHR.045 Shoreditch Round Close Coupled Cistern |
Nett Weight
| SHR.044 - pan - 20.8kg |
| SHR.045 - cistern - 12kg |
Gross Weight Including Packaging
| SHR.044 - pan - 29.8kg |
| SHR.045 - cistern - 12.5kg |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Dual flush cistern fittings. Push large button down for 6 litre flush and small button for 3 litre flush. |
| SP1618 | britton round button Chrome |
| SP504 | inlet valve for Britton close coupled cisterns |
Downloads
- Instructions - PDF - SHR.044 (English)
- Instructions - PDF - SHR.045 (English)
- Instructions - PDF - SHR.044 (French)
- Instructions - PDF - SHR.045 (French)
-
2D CAD-File - DWG -
SHR.044
(SHR.044_SHR.045.dwg)
-

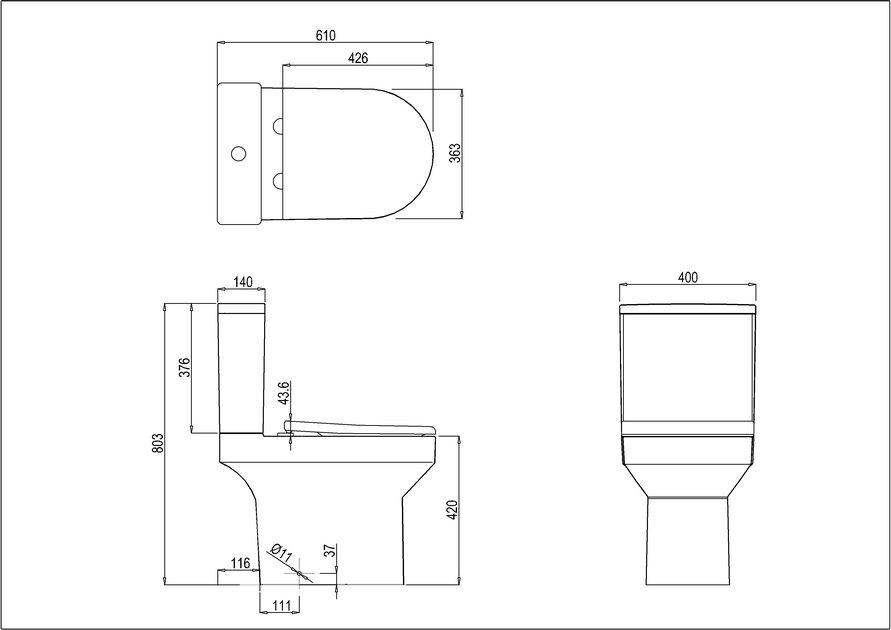

2D Drawing - PDF -
SHR.044
(SHR.044_SHR.045.pdf)
2D Drawing - PDF - SHR.044
