Shoreditch Square Back to Wall Rimless pan and soft close seat

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

SHR.050 Shoreditch Square Back to Wall Rimless pan and soft close seat

Colour

SHR.050 - pan - Gloss White

Material

SHR.050 - pan - Vitreous China

Size

SHR.050 - 500 x 363 x 410mm

Nett Weight

SHR.050 - pan - 20.5kg

Gross Weight Including Packaging

SHR.050 - pan - 27.2kg

Packed Dimension

SHR.050 - 520 x 470 x 445 = 0.1088 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2018

BS EN 33:2019

Downloads

Instructions - PDF - SHR.050 (English)
Instructions - PDF - SHR.050 (French)

2D CAD-File - DWG - SHR.050 (SHR.050_1.dwg)

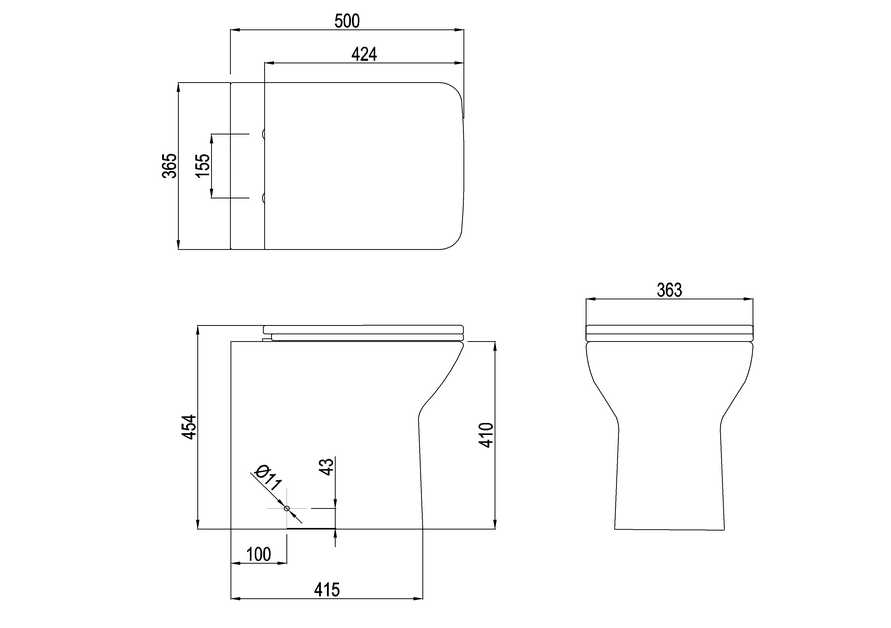

2D Drawing - PDF - SHR.050 (SHR.050_1.pdf) 2D Drawing - PDF - SHR.050

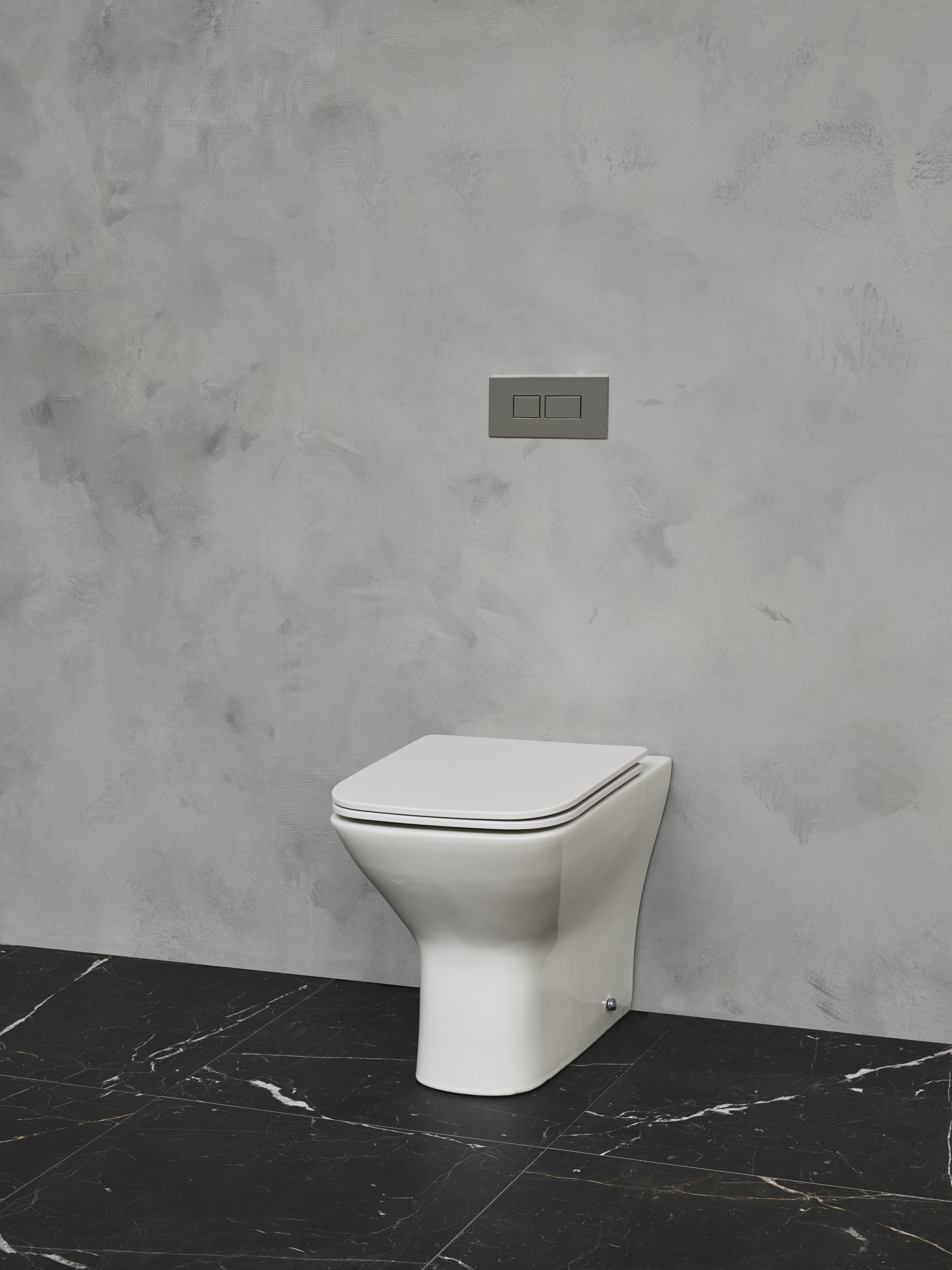

Lifestyle image 1 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
