Hoxton Slim Basin Mixer Chrome

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

Hoxton Slim Basin Mixer Chrome

Chrome

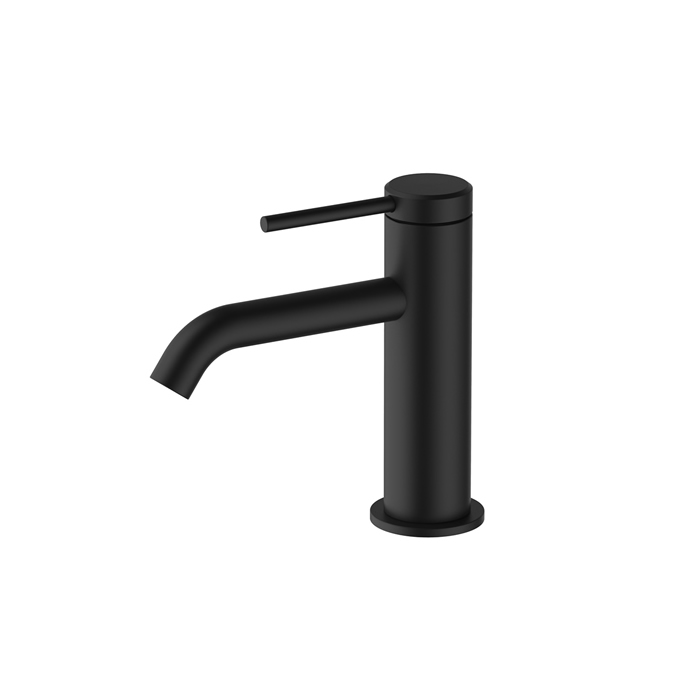

Hoxton Slim Basin Mixer Matt Black

Matt Black

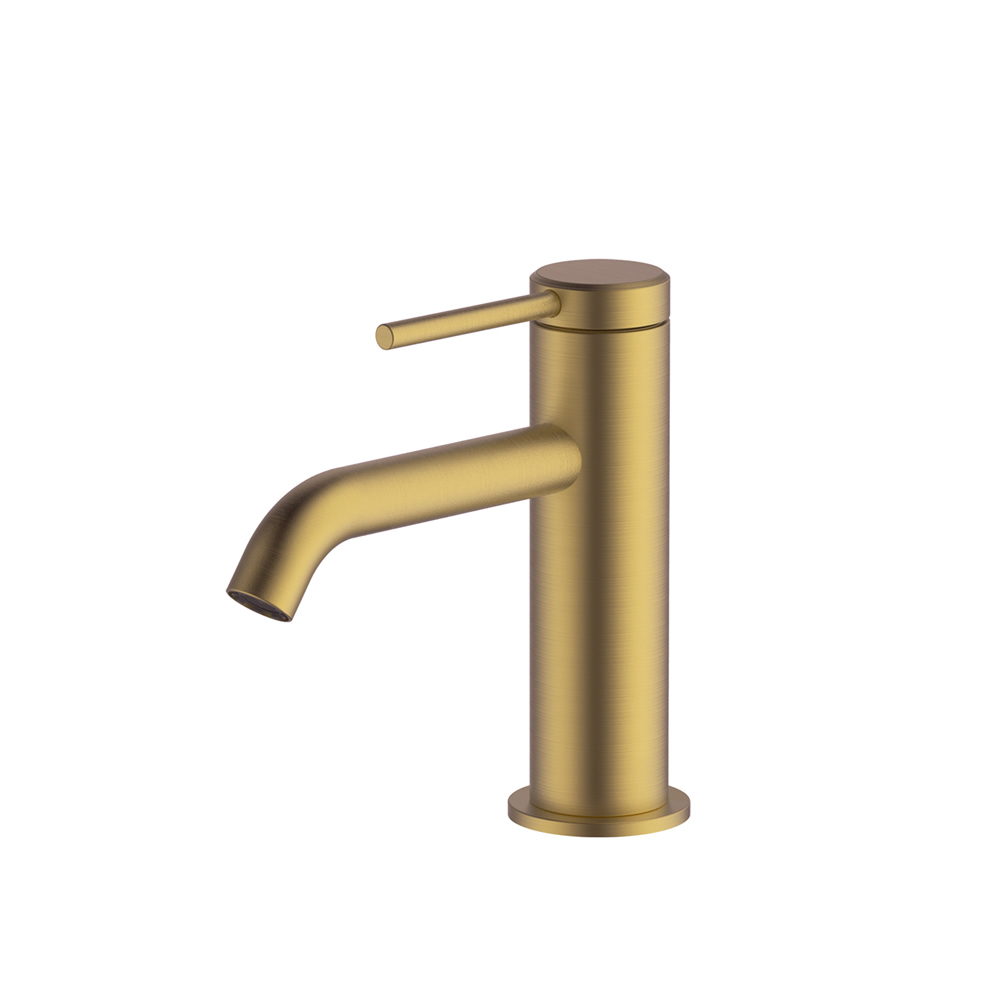

Hoxton Slim Basin Mixer Brushed Brass

Brushed brass

Alternate Text

As Shown

HOX.001CP −

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	3.2	4.8	6.8	9.7	11.8	n/a	15.6

Downloads

Instructions - PDF - HOX.001CP (English)
Instructions - PDF - (French)

2D CAD-File - DWG - HOX.001CP (HOX.001CP-MB-BB.dwg)

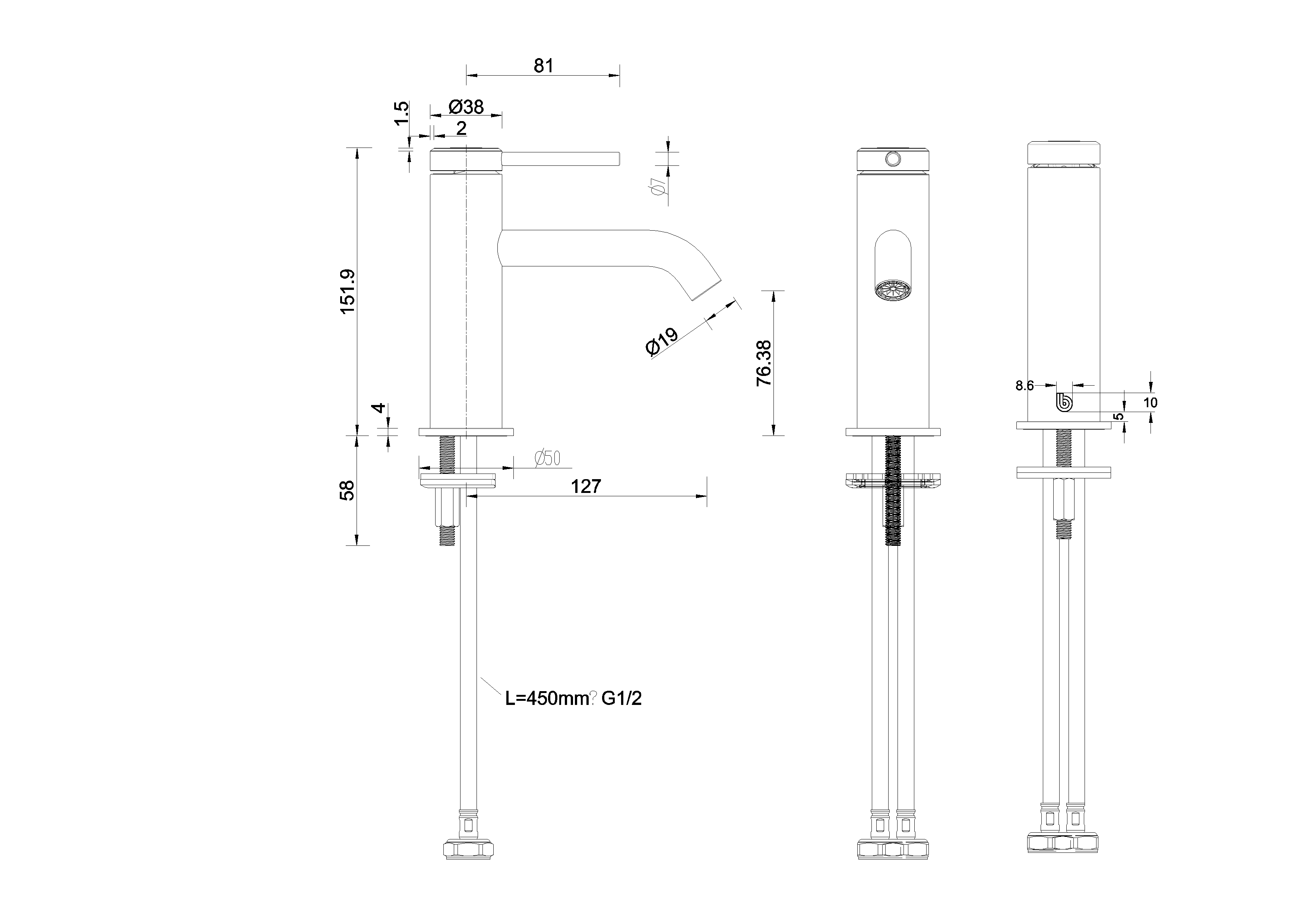

2D Drawing - PDF - HOX.001CP (HOX.001CP-MB-BB.pdf) 2D Drawing - PDF - HOX.001CP

3D IGS - File - IGS - HOX.001CP (HOX.001.igs)
3D RFA BIMM Objects - File - RFA - HOX.001CP (HOX.001.rfa)

Lifestyle image 1 - tiff

jpg
Lifestyle image 2 - tiff

jpg
Lifestyle image 3 - tiff

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
