Hoxton 600 LED Black Mirror with demister
As Shown
| HOX.021MB Hoxton 600 LED Black Mirror with demister |
Material
| HOX.021MB - mirror - Aluminium |
Nett Weight
| HOX.021MB - mirror - 5.45kg |
Gross Weight Including Packaging
| HOX.021MB - mirror - 6.33kg |
Packed Dimension
| HOX.021MB - 670 x 670 x 70 = 0.0314 m3 |
Guarantee
|
3 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-2-1:1989 |
|
BS EN 60598-1:2015 |
|
UTE C 15-801:2012 |
Additional Information
|
IP rating: IP44 |
|
Demister pad size: 200mm*200mm |
|
Light control: Press and hold |
|
LED colour temperature: 2700K-6400K |
|
Lumen: 782 |
|
Sensor placement: 90mm from bottom edge of mirror |
|
Power cable length: 1050mm |
Downloads
-
2D CAD-File - DWG -
HOX.021MB
(HOX.021MB_LD.dwg)
-

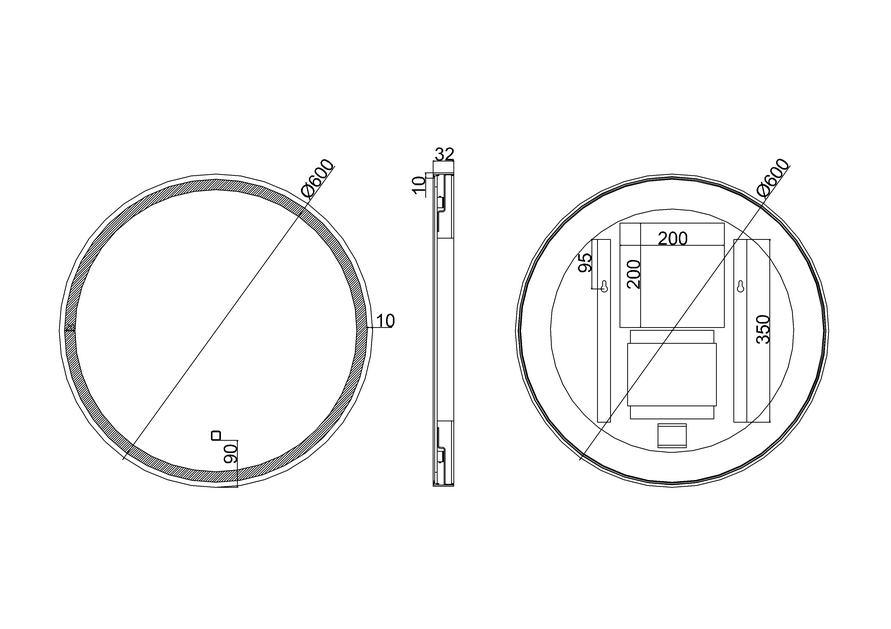

2D Drawing - PDF -
HOX.021MB
(HOX.021MB_LD.pdf)
2D Drawing - PDF - HOX.021MB
-
3D IGS - File - IGS
-
HOX.021MB
(HOX.021.igs)
-
3D RFA BIMM Objects - File - RFA
-
HOX.021MB
(HOX.021.rfa)
-
