Hoxton 800 LED Black Mirror with demister
As Shown
| HOX.022MB Hoxton 800 LED Black Mirror with demister |
Material
| HOX.022MB - mirror - Aluminium |
Nett Weight
| HOX.022MB - mirror - 8.45kg |
Gross Weight Including Packaging
| HOX.022MB - mirror - 10.23kg |
Packed Dimension
| HOX.022MB - 870 x 870 x 70 = 0.053 m3 |
Guarantee
|
3 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-2-1:1989 |
|
BS EN 60598-1:2015 |
|
UTE C 15-801:2012 |
Additional Information
|
IP rating: IP44 |
|
LED colour temperature: 2700K-6400K |
|
Lumen: 1105 |
|
Sensor placement: 100mm from bottom edge of mirror |
|
Power cable length : 1050mm |
|
Demister pad size: 250mm*350mm |
|
Light control: Press and hold |
Downloads
- 2D CAD-File - DWG - HOX.022MB (HOX.022MB_LD.dwg)
-

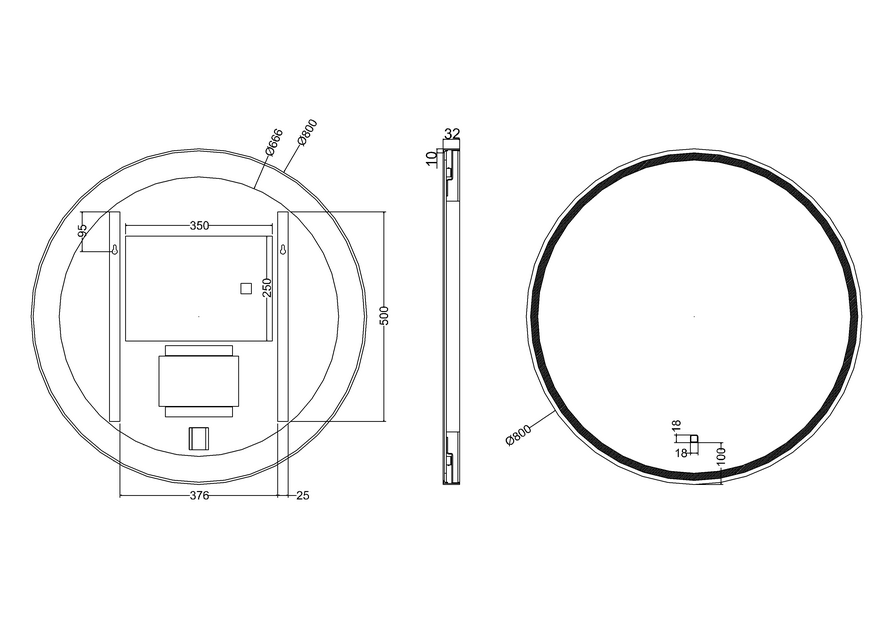

2D Drawing - PDF -
HOX.022MB
(HOX.022MB_LD.pdf)
2D Drawing - PDF - HOX.022MB
-
3D IGS - File - IGS
-
HOX.022MB
(HOX.022.igs)
-
3D RFA BIMM Objects - File - RFA
-
HOX.022MB
(HOX.022.rfa)
