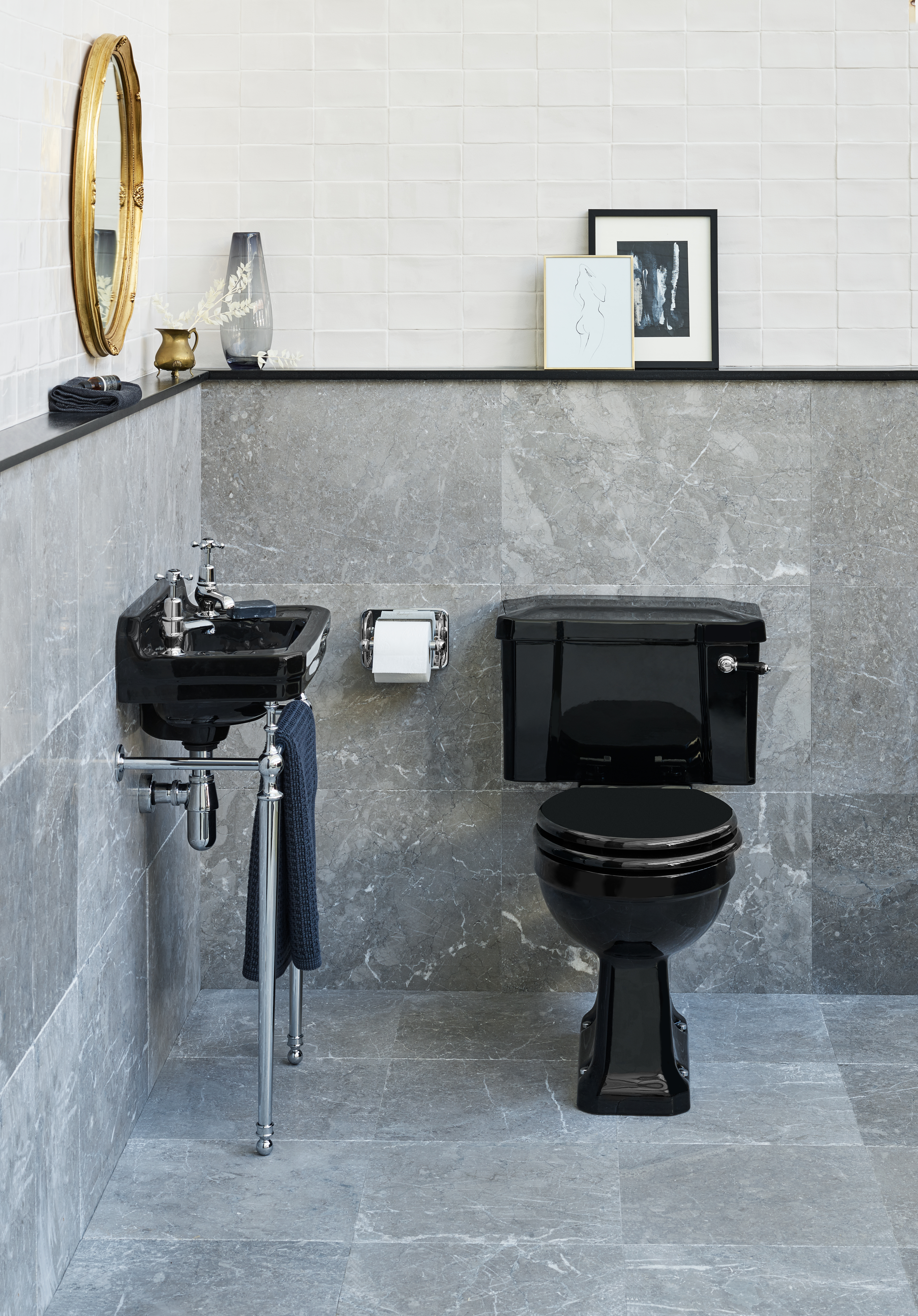

Standard CC WC with 520 lever cistern JET

As Shown

P5 JET Close Coupled Pan Jet

C1 JET Close Coupled/Low Level Cistern - 51cm Ceramic Lever (Inc Cistern Fittings) Jet

S48 Matt Black Seat - Chrome Soft Close

P5 C1 JET - Combined product code

Colour

P5 JET - pan - black

C1 JET - cistern - black

S48 - seat - Matt Black

Material

P5 JET - pan - vitreous china

C1 JET - cistern - vitreous china

S48 - seat - Engineered Wood - MDF

Size

P5 JET - 655 x 355 x 450mm

C1 JET - 205 x 515 x 320mm

S48 - 432 x 371 x 67mm

Nett Weight

P5 JET - pan - 21.45kg

C1 JET - cistern - 16kg

S48 - seat - 3.25kg

Gross Weight Including Packaging

P5 JET - pan - 24.15kg

C1 JET - cistern - 18.25kg

S48 - seat - 3.49kg

Packed Dimension

P5 JET - 378 x 680 x 485 = 0.1247 m3

C1 JET - 225 x 540 x 370 = 0.045 m3

S48 - 440 x 373 x 67 = 0.011 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

P trap standard height pan - height from floor to pan rim is 42cm.

Ceramic soil connection pipes : straight connector to the wall : C29 JET. The S trap connector bending down to the floor : C26 JET.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

Regal Height pan ( floor to pan rim height 48cm ) available : P12.

Metal connection bracket.

Close coupled wc must be used with standard Burlington toilet seats.

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25.

Spare parts

SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
BX1	black cistern lever
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP462	burlington soft close hinges with screws (pair) - Chrome
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP192	hinge fixings for S11, S12, S16, S17 seats
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A	lever Flush Bottom Entry cistern fitting with ceramic lever
SP802	the bigger stopper for SP5A, ARCSP7, C24C, SP7
