Semi recessed basin JET
Product Options
tap hole options
|
1 tap hole
|
As Shown
| B12 1TH JET Semi recessed basin 58cm 1TH Jet |
| B12 1TH JET - Combined product code |
Colour
| B12 1TH JET - basin - black |
Material
| B12 1TH JET - basin - vitreous china |
Nett Weight
| B12 1TH JET - basin - 16.3kg |
Gross Weight Including Packaging
| B12 1TH JET - basin - 17.6kg |
Packed Dimension
| B12 1TH JET - 600 x 500 x 230 = 0.069 m3 |
Tap Hole Options
| 1 or 2 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To order the correct tap hole (TH) configuration simply use 1TH or 2TH at the end of the basin product code. |
Downloads
-
2D CAD-File - DWG -
B12 1TH JET
(B12 1TH JET_LD.dwg)
-

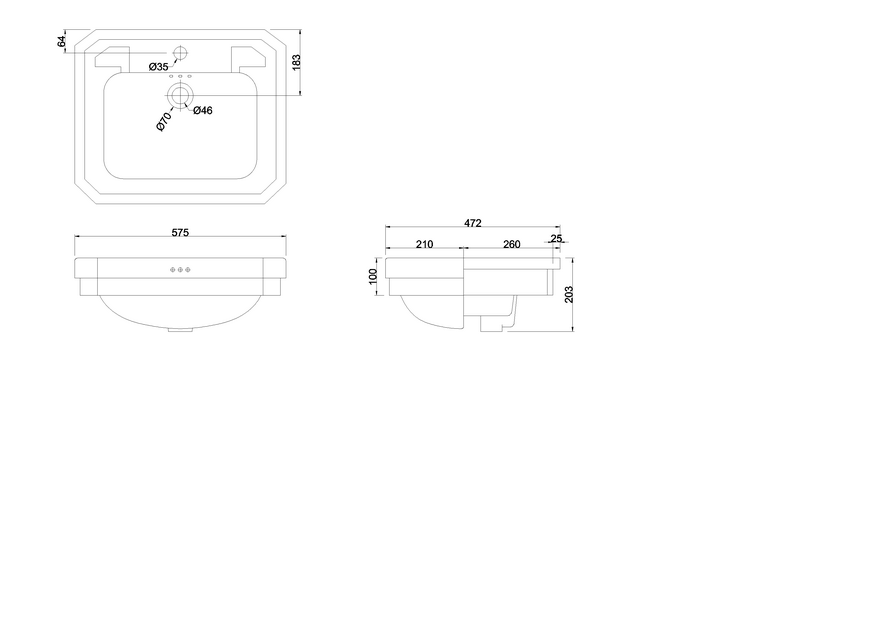

2D Drawing - PDF -
B12 1TH JET
(B12 1TH JET_LD.pdf)
2D Drawing - PDF - B12 1TH JET
-
3D DWG - File - DWG
-
B12 1TH JET
(B12 1TH-20201207.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B12 1TH JET
(B12 1TH-20201207.rfa)
-
3D STP - File - STP
-
B12 1TH JET
(B12 1TH.stp)
-
3D STP - File - STP
-
B12 1TH JET
(B12 3TH.stp)
-
3D STP - File - STP
-
B12 1TH JET
(B12 2TH.stp)
