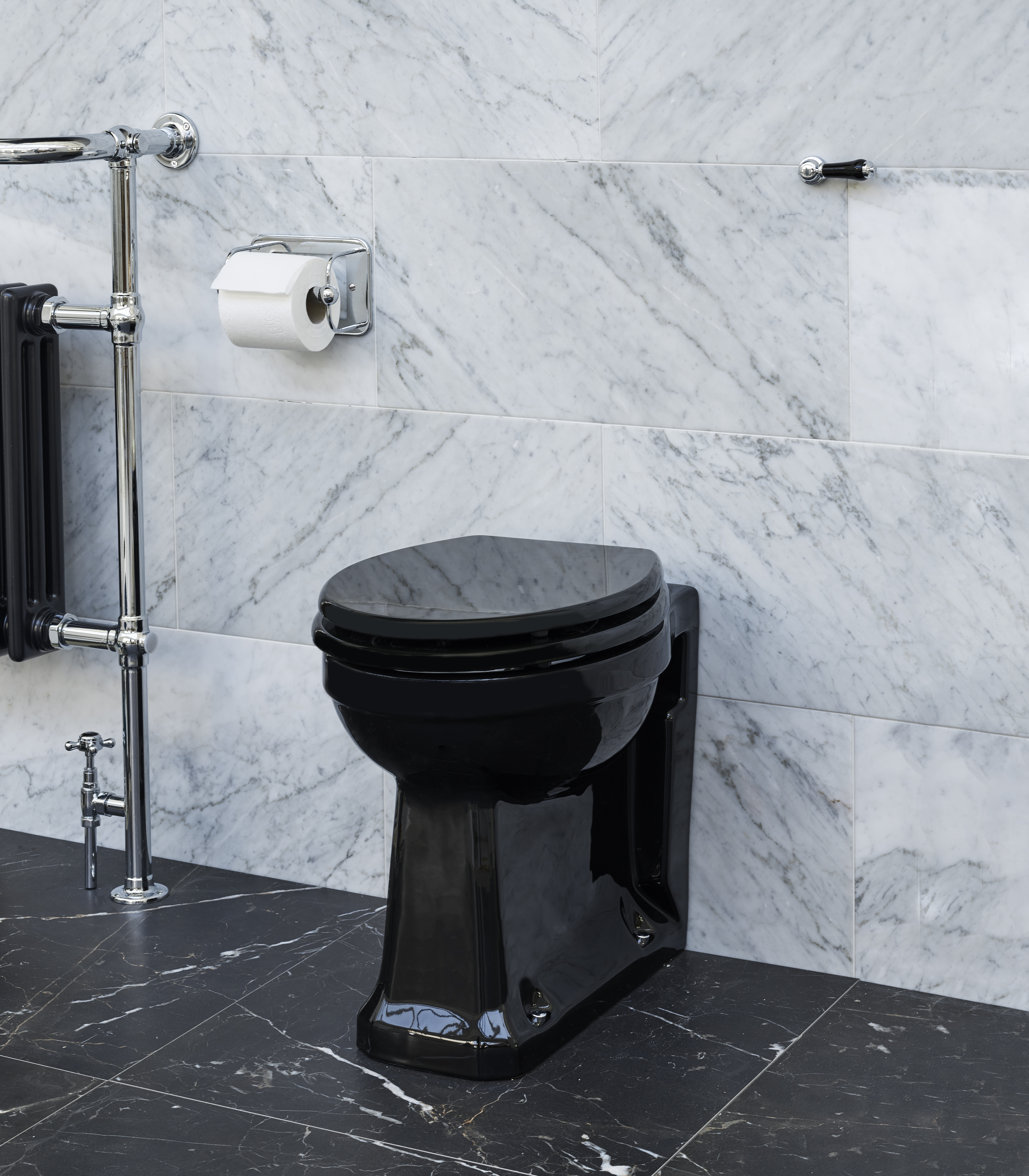

Back-to-wall pan JET
As Shown
| P14 JET Back to wall pan Jet |
| S48 Matt Black Seat - Chrome Soft Close |
| P14 JET - Combined product code |
Nett Weight
| P14 JET - pan - 22.45kg |
| S48 - seat - 3.25kg |
Gross Weight Including Packaging
| P14 JET - pan - 24.3kg |
| S48 - seat - 3.49kg |
Packed Dimension
| P14 JET - 525 x 410 x 470 = 0.1012 m3 |
| S48 - 440 x 373 x 67 = 0.011 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Recommended lever flush concealed cistern is: F6CC - Front / Top Access Concealed Cistern With Lever Flush |
|
Back to wall pans stand on the floor - it is important that the pan is safely secured into the floor |
|
Recommended button flush concealed cisterns are : W31A - top and front access with flush button; W32A - front access dual flush plate; W35A - top access dual flush plate |
|
Back to wall pans must be used with standard Burlington toilet seats |
|
Supplied with floor fixings. |
| SP462 | burlington soft close hinges with screws (pair) - Chrome |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP17 | screw fixing pack for pan and bidet |
Downloads
- Instructions - PDF - S48 (English)
- Instructions - PDF - S48 (French)
- Instructions - PDF - S48 (French)
-
2D CAD-File - DWG -
P14 JET
(P14_LD.dwg)
-
2D Drawing - PDF -
P14 JET
(P14_LD.pdf)
2D Drawing - PDF - P14 JET
-
3D DWG - File - DWG
-
P14 JET
(CY244NP P14 2016 08 08.dwg)
-
3D DXF - File - DXF
-
P14 JET
(CY244NP P14 2016 08 08.dxf)
-
3D IGS - File - IGS
-
P14 JET
(CY244NP P14 2016 08 08.igs)
-
3D RFA BIMM Objects - File - RFA
-
P14 JET
(CY244NP P14 2016 08 08.rfa)
