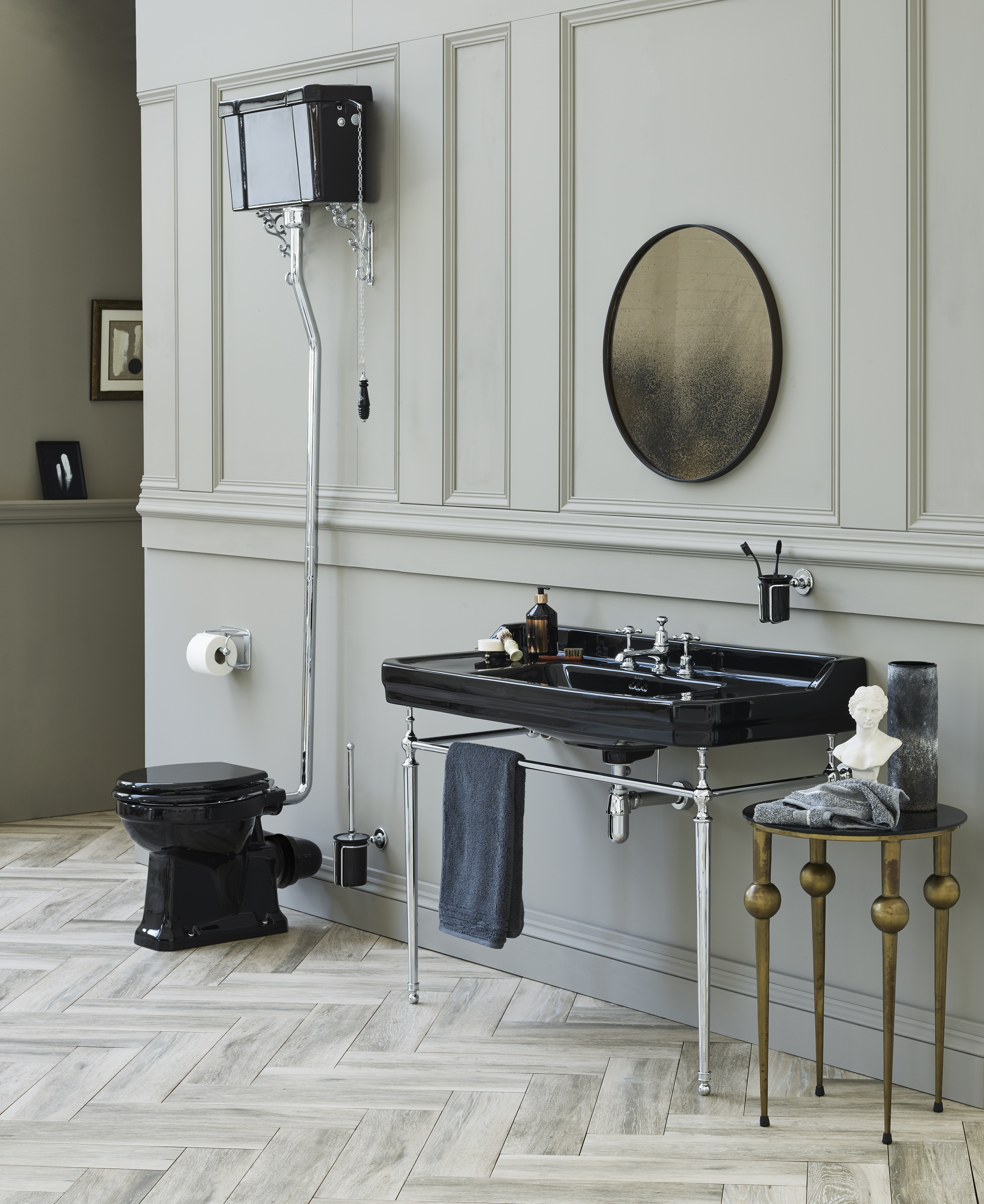

Standard high level WC with single flush ceramic cistern JET
As Shown
| C28S JET Single flush high level cistern tank with chain & ceramic handle (including cistern fittings) Jet |
| P2 JET Low/high level pan Jet |
| T30 CHR High Level Flush Pipe kit including Lever, Rigid pull chain, Flush pipes, reverse screw cistern connector, Stopper and Ornate brackets |
| S48 Matt Black Seat - Chrome Soft Close |
| C28S JET T30 CHR P2 JET - Combined product code |
Colour
| C28S JET - cistern - black |
| P2 JET - pan - black |
| T30 CHR - fittings - Polished Chrome |
| S48 - seat - Matt Black |
Material
| C28S JET - cistern - vitreous china |
| P2 JET - pan - vitreous china |
| T30 CHR - fittings - Brass |
| S48 - seat - Engineered Wood - MDF |
Size
| C28S JET - 520 x 203 x 333mm |
| P2 JET - 525 x 360 x 403mm |
| T30 CHR - 188 x 35 x 1720mm |
| S48 - 432 x 371 x 67mm |
Nett Weight
| C28S JET - cistern - 15.15kg |
| P2 JET - pan - 17kg |
| T30 CHR - fittings - 3.45kg |
| S48 - seat - 3.25kg |
Gross Weight Including Packaging
| C28S JET - cistern - 17.3kg |
| P2 JET - pan - 18.7kg |
| T30 CHR - fittings - 4.91kg |
| S48 - seat - 3.49kg |
Packed Dimension
| C28S JET - 540 x 370 x 225 = 0.045 m3 |
| P2 JET - 380 x 550 x 438 = 0.0915 m3 |
| T30 CHR - 1115 x 385 x 70 = 0.03 m3 |
| S48 - 440 x 373 x 67 = 0.011 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
| SP459 | black rubber wedge for all finishes products of T30 |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP429 | buffer Clip for T30CHR without black rubber wedge |
| SP462 | burlington soft close hinges with screws (pair) - Chrome |
| SP104 | control bracket for T30CHR |
| SP119 | decorative cover of cistern connection for T30CHR & T33CHR |
| SP15 | handle for high level cistern from T30CHR kit |
| SP14 | high Level Rod for T30 CHR, T34 CHR |
| SP721 | high level single flush cistern fittings for C28S |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP1351 | long pull arm for High level cistern from T30CHR kit |
| SP146 | pin screw for T30 CHR |
| SP17 | screw fixing pack for pan and bidet |
| SP1352 | spares for T30CHR: screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1 |
| SP1365 | the bottom section of the high level flush pipe |
| SP95 | washers & plastic fixing nut for flush pipe |
Downloads
- Instructions - PDF - T30 CHR (English)
- Instructions - PDF - S48 (English)
- Instructions - PDF - S48 (French)
- Instructions - PDF - T30 CHR (French)
- Instructions - PDF - S48 (French)
-
2D CAD-File - DWG -
C28S JET T30 CHR P2 JET
(P2-C28S-T30.dwg)
-
2D Drawing - PDF -
C28S JET T30 CHR P2 JET
(P2-C28S-T30.pdf)
2D Drawing - PDF - C28S JET T30 CHR P2 JET
-
3D DWG - File - DWG
-
C28S JET T30 CHR P2 JET
(99202.dwg)
-
3D RFA BIMM Objects - File - RFA
-
C28S JET T30 CHR P2 JET
(99202.rfa)
-
3D STP - File - STP
-
C28S JET T30 CHR P2 JET
(C28S.stp)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
