Edwardian 56cm basin with basin stand JET
Product Options
tap hole options
|
3 tap holes
|
As Shown
| B43THJET Edwardian Basin 56cm 3TH Jet |
| T22ACHR 56cm/58cm basin wash stand chrome |
| B4 3TH JET T22A CHR - Combined product code |
Nett Weight
| B43THJET - basin - 18.85kg |
| T22ACHR - wash stand - 3kg |
Gross Weight Including Packaging
| B43THJET - basin - 21.35kg |
| T22ACHR - wash stand - 4.12kg |
Tap Hole Options
| 1,2 or 3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B4 3TH JET T22A CHR
(B4 3TH T22A CHR_LD.dwg)
-

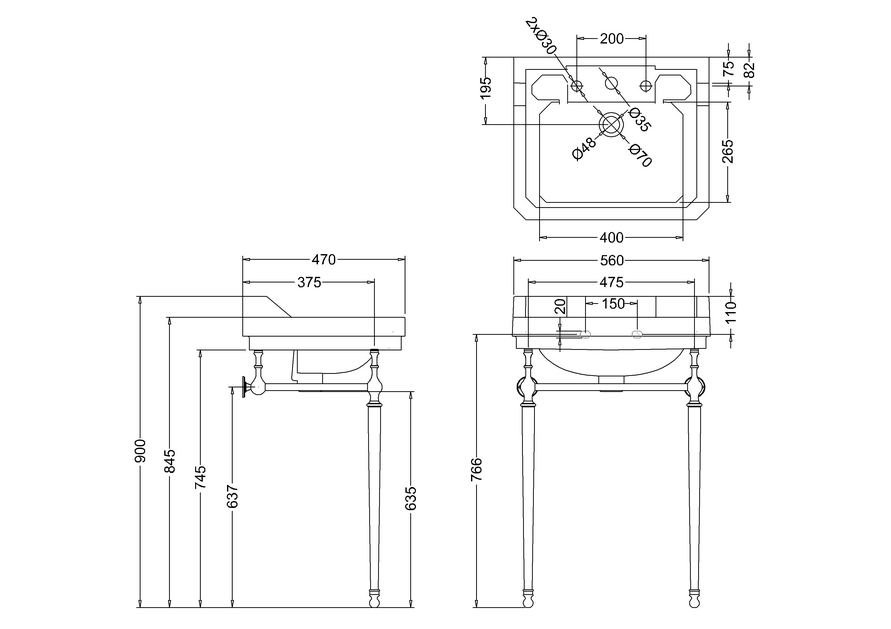

2D Drawing - PDF -
B4 3TH JET T22A CHR
(B4 3TH T22A CHR_LD.pdf)
2D Drawing - PDF - B4 3TH JET T22A CHR
-
3D STP - File - STP
-
B4 3TH JET T22A CHR
(B4 3TH.stp)
-
3D IGS - File - IGS
-
B4 3TH JET T22A CHR
(T22A.igs)
