Milan 500mm basin

asaq2.Model.Web_product_new?.web_name

Product Options

pedestal options

Milan 500mm basin with full pedestal

full pedestal

Milan 500mm basin with semi pedestal

semi pedestal

Alternate Text

As Shown

MAR.0002 Milan Washbasin 500mm 1TH

SP.1033 Round semi pedestal

Colour

MAR.0002 - basin - Gloss White

SP.1033 - pedestal - Gloss White

Material

MAR.0002 - basin - Vitreous China

SP.1033 - pedestal - Vitreous China

Size

MAR.0002 - 450 x 500 x 173mm

SP.1033 - 265 x 175 x 250mm

Nett Weight

MAR.0002 - basin - 15.15kg

SP.1033 - pedestal - 5.6kg

Gross Weight Including Packaging

MAR.0002 - basin - 16.75kg

SP.1033 - pedestal - 6.44kg

Packed Dimension

MAR.0002 - 530 x 192 x 475 = 0.0483 m3

SP.1033 - 277 x 192 x 270 = 0.0144 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14688:2015

BS EN 31:2011

SP1714

basin fixings for Burlington & Britton basins

Downloads

2D CAD-File - DWG - MAR.0002 SP.1033 (MAR.0002_SP.1033.dwg)

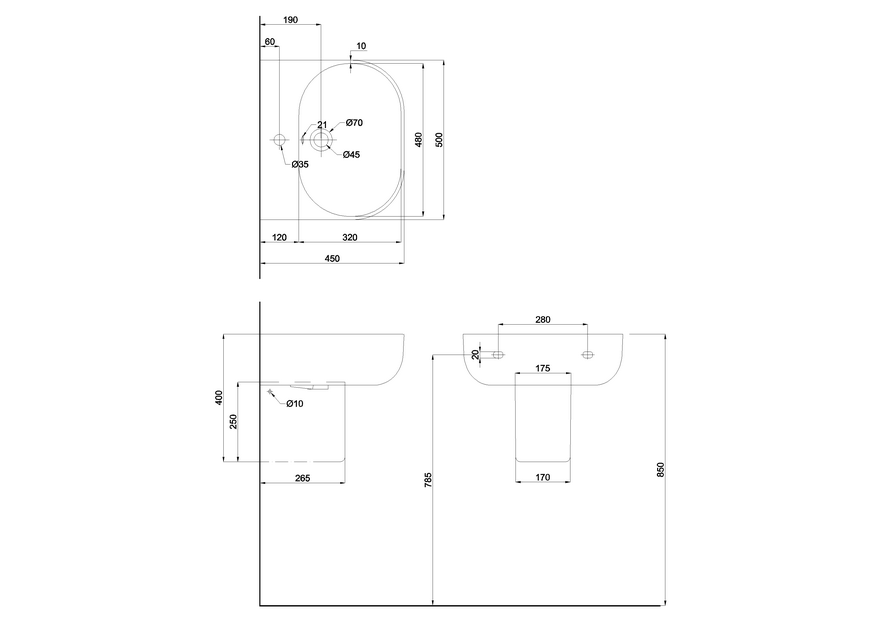

2D Drawing - PDF - MAR.0002 SP.1033 (MAR.0002_SP.1033.pdf) 2D Drawing - PDF - MAR.0002 SP.1033

3D RFA BIMM Objects - File - RFA - MAR.0002 SP.1033 (MAR.0002_SP.1033.rfa)
3D DWG - File - DWG - MAR.0002 SP.1033 (MAR.0002_SP.1033.dwg)
3D STP - File - STP - SP.1033 (SP.1033.stp)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
