Kai 6 Bi-fold door

asaq2.Model.Web_product_new?.web_name

Product Options

Sizes (click on size to refresh details)

76cm (A)

Kai 6 Bifold Door 800

80cm (A)

Kai 6 Bifold Door 900

90cm (A)

Alternate Text

As Shown

KLBFSC0760 Kai 6 Bifold Door 760

Colour

KLBFSC0760 - door - Polished Aluminum

Material

KLBFSC0760 - door - Aluminum

Size

KLBFSC0760 - 6 x 720 x 1900mm

Nett Weight

KLBFSC0760 - door - 21kg

Gross Weight Including Packaging

KLBFSC0760 - door - 23kg

Packed Dimension

KLBFSC0760 - 2000 x 780 x 75 = 0.117 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

1900mm enclosure height

Suitable for tray or tiled floors (wet room)

Silver anodised aluminium finish

Reversible door for left or right hand entry

40mm width adjustment for easy fitting

Concealed fixings and profile cover caps

KL6S00004	KAI 6 Bifold Centre Seal 1816mm x1
KL6S00005	KAI 6 Bifold Side Seal x2 Part H
KL6S00006	KAI 6 Handle x1 Part K
KLBIFOLDPACK	kai 6 Intsall Pack Bifold Door
KL6S00008	KAI 6 Profile Caps L, R Part A
KL6S00003	KAI 6 Wall Plug x8 Part C

Downloads

Instructions - PDF - KLBFSC0760 (English)

Specifications - PDF - KLBFSC0760
2D CAD-File - DWG - KLBFSC0760 (KLBFSC0760.dwg)

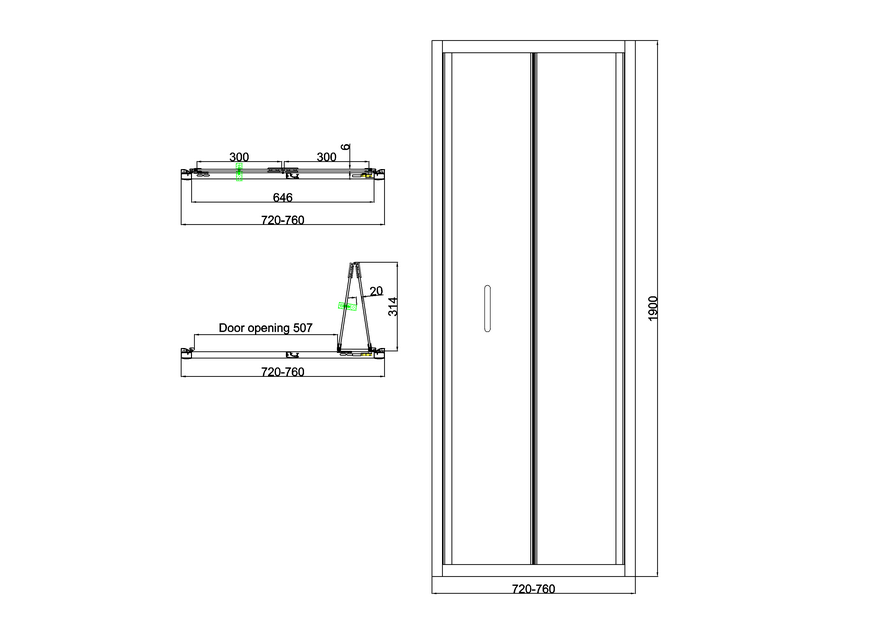

2D Drawing - PDF - KLBFSC0760 (KLBFSC0760.pdf) 2D Drawing - PDF - KLBFSC0760

3D IGS - File - IGS - KLBFSC0760 (KLBFSC0760.igs)
3D IGS - File - IGS - KLBFSC0760 (KLCESC0760.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
