Kai 6 Corner entry enclosure
Product Options

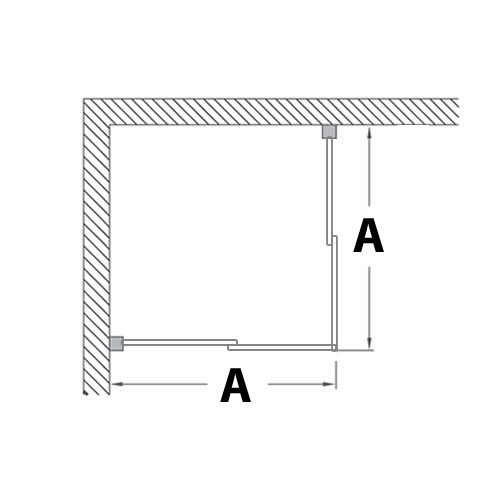

Sizes (click on size to refresh details)
76cm (A)
|
80cm (A)
|
90cm (A)
|
As Shown
| KLCESC0760 Kai 6 Corner Entry Sliding Door 760 |
Material
| KLCESC0760 - door - Aluminum |
Nett Weight
| KLCESC0760 - door - 39.5kg |
Gross Weight Including Packaging
| KLCESC0760 - door - 41.5kg |
Packed Dimension
| KLCESC0760 - 2000 x 435 x 145 = 0.1262 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
1900mm enclosure height |
|
Secure magnetic seal closing |
|
Silver anodised aluminium finish |
|
Concealed fixings and profile cover caps |
|
Sliding doors |
|
20mm width adjustment for easy fitting |
|
Quick release double rollers |
| KL6S00004 | KAI 6 Bifold Centre Seal 1816mm x1 |
| KL6S00016 | kai 6 Corner Entry Angle Set Parts K&Q |
| KLCORNERPACK | kai 6 Intsall Pack Corner Entry Door |
| KL6S00013 | kai 6 Long Seal 1881mm x2 Part O & S |
| KL6S00012 | kai 6 Magnetic Seal x2 Corn Entry Pt M |
| KL6S00008 | KAI 6 Profile Caps L, R Part A |
| KL6S00003 | KAI 6 Wall Plug x8 Part C |
| KL6S00017 | kai Washer, Cap x4 Corner Entry Pt O-R |
Downloads
- Specifications - PDF - KLCESC0760
-
2D CAD-File - DWG -
KLCESC0760
(KLCESC0760.dwg)
-

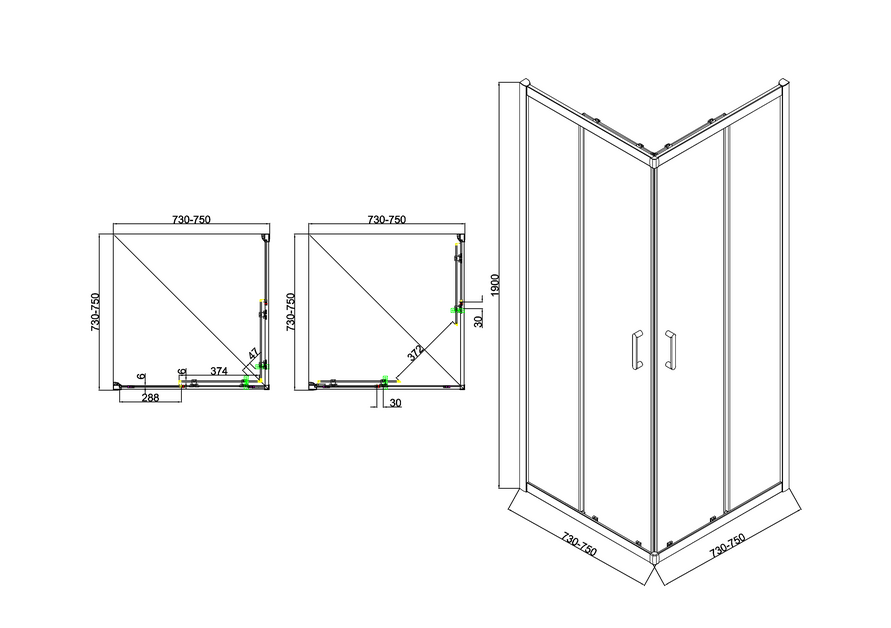

2D Drawing - PDF -
KLCESC0760
(KLCESC0760.pdf)
2D Drawing - PDF - KLCESC0760
