Kai 6 Quadrant double doors

asaq2.Model.Web_product_new?.web_name

Product Options

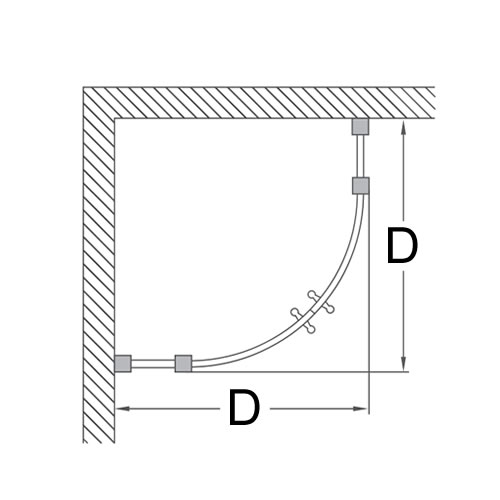

Sizes (click on size to refresh details)

80cm (D)

Kai 6 Quad Double Door 900

90cm (D)

Alternate Text

As Shown

KLQDS0800 Kai 6 Quad Double Door 800

Colour

KLQDS0800 - door - Polished Aluminum

Material

KLQDS0800 - door - Aluminum

Size

KLQDS0800 - 770 x 770 x 1900mm

Nett Weight

KLQDS0800 - door - 40kg

Gross Weight Including Packaging

KLQDS0800 - door - 42kg

Packed Dimension

KLQDS0800 - 2000 x 440 x 185 = 0.1628 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

Secure magnetic seal closing

1900mm enclosure height

Concealed fixings and profile cover caps

Silver anodised aluminium finish

Suitable for 550mm radius shower trays or tiled floors (wet room)

20mm width adjustment for easy fitting

Quick release double rollers

KL6S00004	KAI 6 Bifold Centre Seal 1816mm x1
KL6S00006	KAI 6 Handle x1 Part K
KLQUAD2PACK	kai 6 Intsall Pack Double Quad
KL6S00013	kai 6 Long Seal 1881mm x2 Part O & S
KL6S00008	KAI 6 Profile Caps L, R Part A
KL6S00023	KAI 6 Seal 1881mm x2 Dbl Quad Part O
KL6S00003	KAI 6 Wall Plug x8 Part C

Downloads

Instructions - PDF - KLQDS0800 (English)

Specifications - PDF - KLQDS0800
2D CAD-File - DWG - KLQDS0800 (KLQDS0800.dwg)

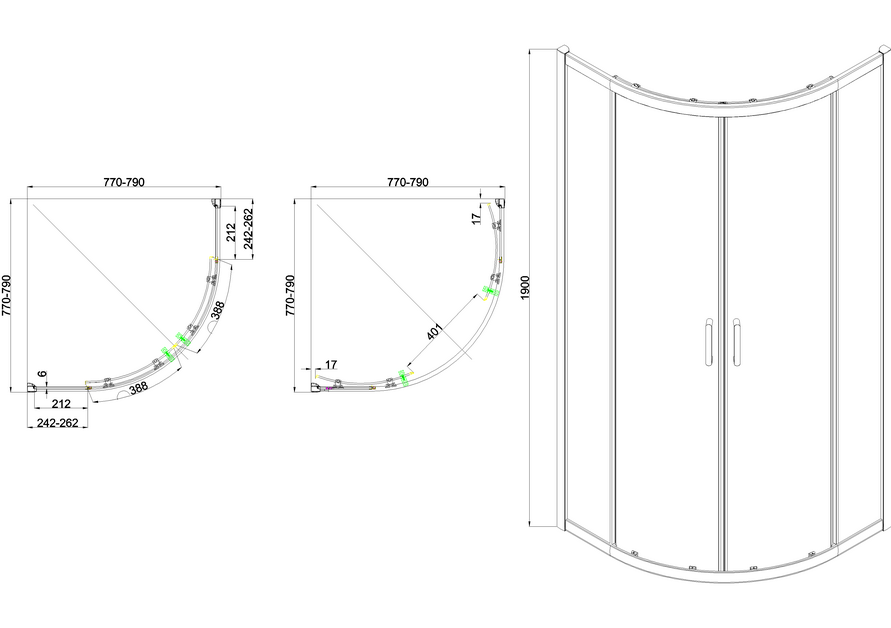

2D Drawing - PDF - KLQDS0800 (KLQDS0800.pdf) 2D Drawing - PDF - KLQDS0800

3D IGS - File - IGS - KLQDS0800 (KLQDS0800.igs)

Product image 1 - jpg
Product image 2 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
