Clear 6 Pivot Door
Product Options
Sizes (click on size to refresh details)
76cm (A)
|
80cm (A)
|
90cm (A)
|
100cm (A)
|
As Shown
| CAPDSC0760 Clear 6 Pivot Door 760 |
Material
| CAPDSC0760 - door - Aluminum |
Nett Weight
| CAPDSC0760 - door - 22.8kg |
Gross Weight Including Packaging
| CAPDSC0760 - door - 25.8kg |
Packed Dimension
| CAPDSC0760 - 2030 x 800 x 95 = 0.1543 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 12150-1:2015 |
|
BS EN14428:2015 |
Additional Information
|
1950mm enclosure height |
|
30mm width adjustment for easy fitting |
|
Concealed fixings and profile cover caps |
|
Hinges built into profile for easy cleaning |
|
Removable bottom seal |
|
Reversible door for left or right hand entry |
|
Silver anodised aluminium finish |
|
Suitable for tray or tiled floors (wet room) |
| CAPIVOTPACKC | clear 6 Install Pack Pivot Chrome |
| CA600006 | clear Chrome Handle All Models x1 |
| CA600016 | clear Pivot Door Long Seal 1889mm |
| CA600014 | clear Pivot Hinge Covers G H I J |
Downloads
- Specifications - PDF - CAPDSC0760
-
2D CAD-File - DWG -
CAPDSC0760
(CAPDSC0760.dwg)
-

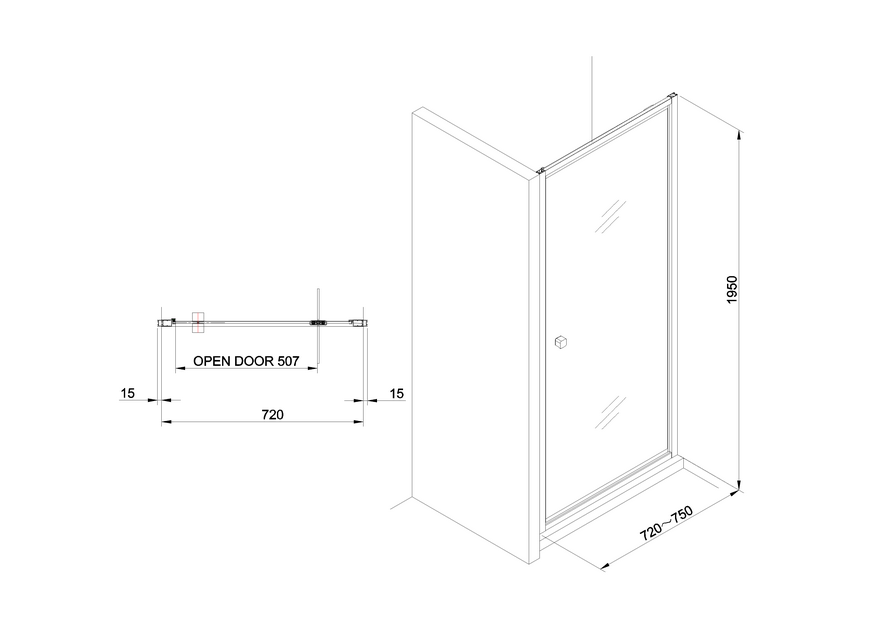

2D Drawing - PDF -
CAPDSC0760
(CAPDSC0760.pdf)
2D Drawing - PDF - CAPDSC0760
