Clear 6 Quadrant Single Door
Product Options

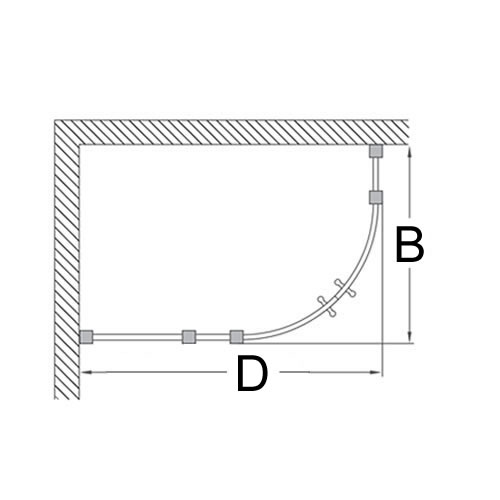

Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
100cm (D), 80cm (B)
|
120cm (D), 80cm (B)
|
120cm (D), 90cm (B)
|
As Shown
| CAQSSC0800A Clear 6 Quad Sgle Door 80 Box A |
| CAQSSC0800B Clear 6 Quad Sgle Door 80 Box B |
Gross Weight Including Packaging
| CAQSSC0800A - door - 23.4kg |
| CAQSSC0800B - door - 22.1kg |
Packed Dimension
| CAQSSC0800A - 2030 x 675 x 170 = 0.2329 m3 |
| CAQSSC0800B - 2015 x 620 x 130 = 0.1624 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 12150-1:2015 |
|
BS EN14428:2015 |
Additional Information
|
15mm width adjustment for easy fitting |
|
1950mm enclosure height |
|
Concealed fixings and profile cover caps |
|
Quick release double rollers |
|
Reversible door for left or right hand entry |
|
Silver anodised aluminium finish |
|
Suitable for 550mm radius shower trays or tiled floors (wet room) |
| CAQUADKITC | clear 6 Install Pack Quad Chrome |
| CA600006 | clear Chrome Handle All Models x1 |
| CA600032 | clear Rollers SilverTop Bottom for Quads |
| CA600008 | clear Seal Single Door Quad Part E, L=1930mm |
| CA600009 | clear Seal Single Door Quad Part F, L=1860mm |
| CA600007 | clear Seal Single Door Quad Part G, L=1860mm |
Downloads
- Specifications - PDF - CAQSSC0800
-
2D CAD-File - DWG -
CAQSSC0800
(CAQSSC0800.dwg)
-

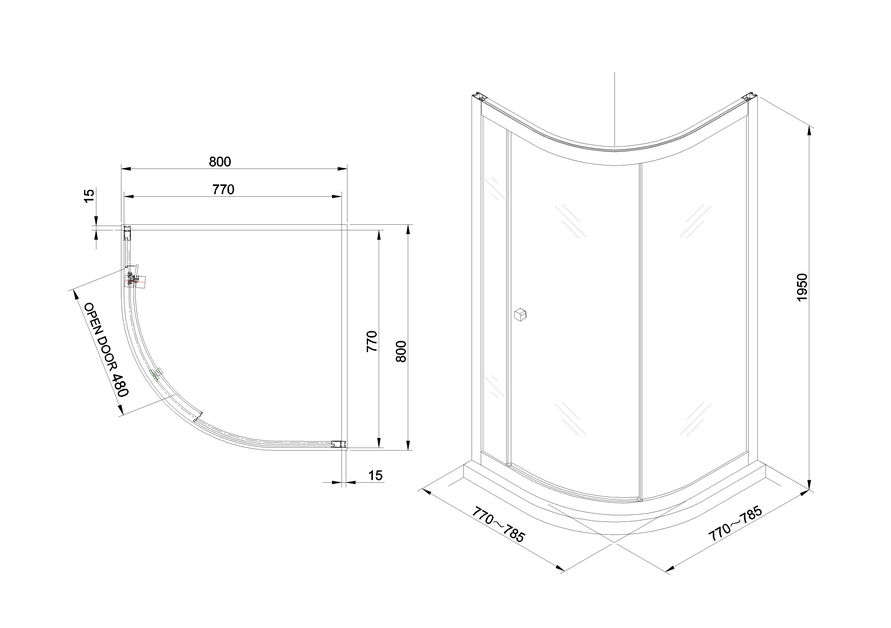

2D Drawing - PDF -
CAQSSC0800
(CAQSSC0800.pdf)
2D Drawing - PDF - CAQSSC0800
