Infinity 8 Walk In with Deflector Panel
Product Options
Sizes (click on size to refresh details)

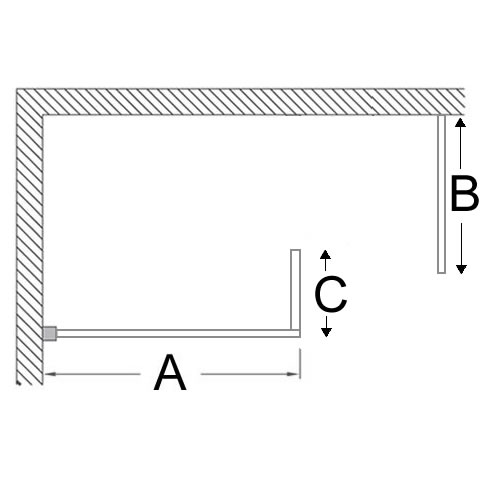

67.5cm (A), 55cm (B), 34.6cm (C)
|
87.5cm (A), 55cm (B), 34.6cm (C)
|
107.5cm (A), 55cm (B), 34.6cm (C)
|
As Shown
| IWESC1250+ Infinity 8 1235 walk-in stainless steel |
| IWKSC0550 Infinity 8 550 walk in end panel stainless steel |
Colour
| IWESC1250+ - walk in screen - Polished Stainless Steel |
| IWKSC0550 - walk in screen - Polished Stainless Steel |
Gross Weight Including Packaging
| IWESC1250+ - walk in screen - 54.4kg |
| IWKSC0550 - walk in screen - 25.7kg |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Suitable for tray or tiled floors (wet room) |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
180˚ hinged folding panel for easy access |
|
Reversible panel for left or right hand entry |
| IN0000059 | cover |
| IN0000010 | infinity Hinge Set x1 |
| IN0000055 | side waterproof strip L=2000 |
| IN0000057 | support Bar |
| IN0000058 | support Bar L=150 |
| DSL000029 | wall plug |
| IN0000056 | waterproof Strip L=346 |
Downloads
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
