Infinity hinged door stainless steel
Product Options
Sizes (click on size to refresh details)

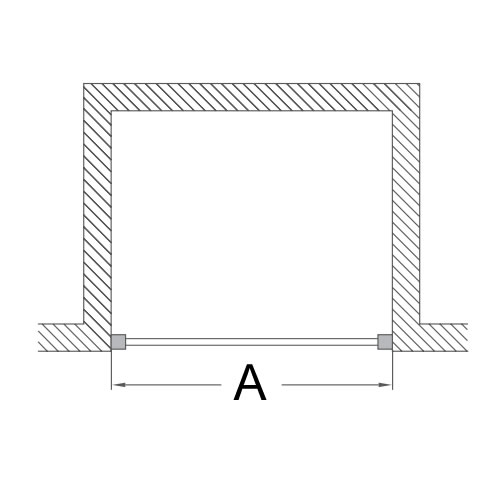

80cm (A)
|
90cm (A)
|
As Shown
| IHDSC0800+ Infinity 8 800 hinged door stainless steel |
Material
| IHDSC0800+ - door - Stainless Steel |
Nett Weight
| IHDSC0800+ - door - 35.5kg |
Gross Weight Including Packaging
| IHDSC0800+ - door - 38.5kg |
Packed Dimension
| IHDSC0800+ - 2100 x 875 x 85 = 0.1562 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Up to 40mm width adjustment for easy fitting |
|
Flush fit hinges |
|
Concealed fixings |
|
Suitable for tray or tiled floors (wet room) |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
Reversible door for left or right hand entry |
| IN0000019 | adjustment block |
| IN0000065 | cover |
| IN0000016 | handle |
| IN0000025 | sealing strip 2m |
| IN0000024 | sealing strip L=1950 |
| DSL000029 | wall plug |
Downloads
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
