Hinged Door With Inline Panel
Product Options

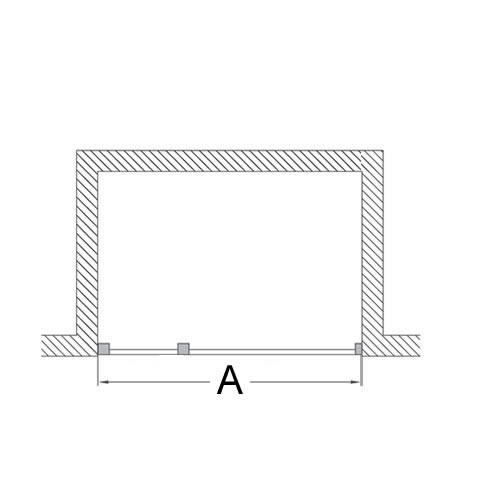

Sizes (click on size to refresh details)
80cm (A)
|
90cm (A)
|
100cm (A)
|
120cm (A)
|
140cm (A)
|
As Shown
| SHDSC0800 Svelte 8 Hinged Door 800 |
Nett Weight
| SHDSC0800 - door - 34.1kg |
Gross Weight Including Packaging
| SHDSC0800 - door - 36.6kg |
Packed Dimension
| SHDSC0800 - 2065 x 650 x 95 = 0.1275 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Flush fit hinges |
|
Polished stainless steel finish |
|
Suitable for tray or tiled floors (wet room) |
|
Reversible door for left or right hand entry |
|
25mm width adjustment for easy fitting |
|
2000mm enclosure height |
| SV0000022 | 1954mm Wall frame sealing strip |
| SV0000021 | 2.5mm Allen key |
| SV0000020 | 4mm Allen key |
| SV0000046 | alcohol Prep Pad |
| SV0000087 | bottom profile |
| SV0000060 | bottom seat |
| SV0000041 | bottom seat(LH) |
| SV0000044 | bottom seat(RH) |
| SV0000007 | bracket |
| SV0000003 | cap |
| SV0000029 | glass clamp assembly |
| SV0000015 | handle |
| SV0000074 | hinge |
| SV0000005 | M4X12mm Screw |
| SV0000084 | magnetic strip L=1982mm L=1962mm |
| SV0000069 | positioning template |
| SV0000078 | side waterproof strip L=1980mm |
| DSL000030 | ST4*40mm screw |
| SV0000068 | support bar L=1110mm |
| SV0000023 | top Cap |
| SV0000001 | wall frame sealing strip L=1982mm |
| SV0000085 | waterproof barrier bar |
Downloads
- 2D CAD-File - DWG - SHDSC0800 (SHDSC0800.dwg)
