Welcome to the Bathroom Brands Technical Whitebook


Svelte 8 Three Sided Hinged Door
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)

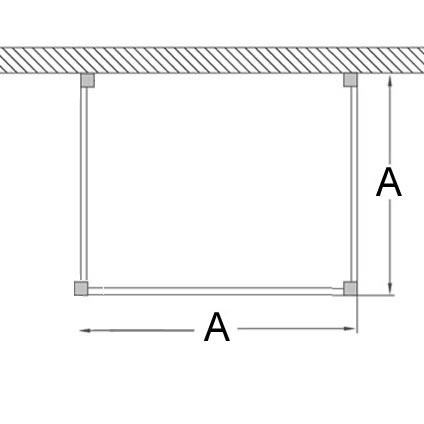

3_sided_hinged.jpg 90cm (A) Svelte 8 Three Sided Hinged Door 1000 100cm (A)
As Shown
STSSC0900A Svelte 3 Sided Enclosure 900 x 900 Box A
STSSC0900B Svelte 3 Sided Enclosure 900 x 900 Box B
STSSC0900C Svelte 3 Sided Enclosure 900 x 900 Box C
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN14428:2015
BS EN 12150-1:2015
Additional Information
Flush fit hinges
Polished stainless steel finish
Suitable for tray or tiled floors (wet room)
Reversible door for left or right hand entry
15mm per panel adjustment for easy fitting
2000mm enclosure height
SV0000022 1954mm Wall frame sealing strip
SV0000030 1970mm Wall frame sealing strip
SV0000021 2.5mm Allen key
SV0000020 4mm Allen key
SV0000046 alcohol Prep Pad
SV0000040 bottom profile L=842mm
SV0000041 bottom seat(LH)
SV0000042 bottom seat(LH)
SV0000032 bottom seat(RH)
SV0000044 bottom seat(RH)
SV0000050 bottom waterproof strip L=735mm
SV0000035 bottom waterproof strip L=875mm
SV0000034 connecting part
SV0000036 connecting part (LH)
SV0000043 connecting part (RH)
SV0000027 connector
SV0000029 glass clamp assembly
SV0000015 handle
SV0000037 hinge
SV0000005 M4X12mm Screw
SV0000026 M4X6mm Screw
SV0000031 magnetic strip L=1977mm L=1962mm
SV0000049 magnetic strip L=1980mm L=1962mm
SV0000045 positioning template
SV0000039 side waterproof strip L=1962mm
DSL000030 ST4*40mm screw
SV0000025 support bar
SV0000028 support bar
SV0000047 support bar L=905mm
SV0000023 top Cap
SV0000024 wall bracket assembling
SV0000033 waterproof barrier bar L=838mm
SV0000048 waterproof barrier bar L=938mm
