Svelte 8 Walk In
Product Options
Sizes (click on size to refresh details)

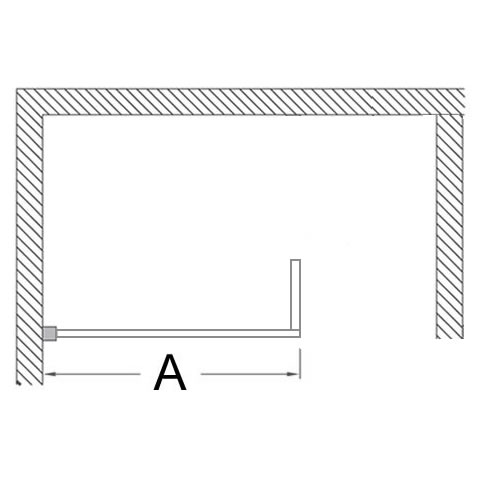

70cm (A)
|
80cm (A)
|
90cm (A)
|
100cm (A)
|
120cm (A)
|
As Shown
| SSPSC0700 Svelte 8 Side Panel 700 |
Nett Weight
| SSPSC0700 - side panel - 26.1kg |
Gross Weight Including Packaging
| SSPSC0700 - side panel - 28.6kg |
Packed Dimension
| SSPSC0700 - 2060 x 725 x 65 = 0.0971 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Suitable for tray or tiled floors (wet room) |
|
Polished stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Optional retro fit hinged deflector panel |
|
1985mm enclosure height |
| SV0000030 | 1970mm Wall frame sealing strip |
| SV0000021 | 2.5mm Allen key |
| SV0000020 | 4mm Allen key |
| SV0000042 | bottom seat(LH) |
| SV0000032 | bottom seat(RH) |
| SV0000015 | handle |
| DSL000030 | ST4*40mm screw |
| SV0000023 | top Cap |
Downloads
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
