Design 8 Walk In Easy Access Shower Enclosure with side panel
Product Options

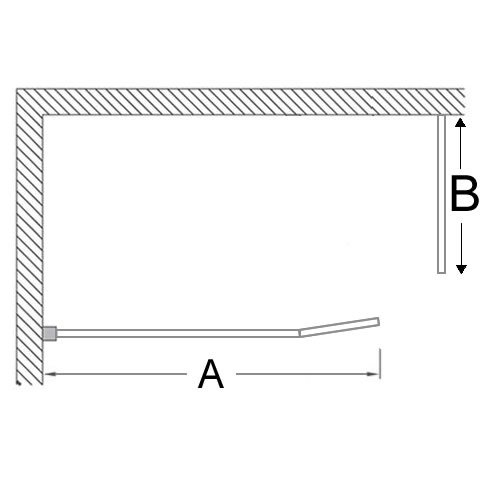

Sizes (click on size to refresh details)
100cm (A), 30cm (B)
|
100cm (A), 40cm (B)
|
100cm (A), 50cm (B)
|
100cm (A), 60cm (B)
|
100cm (A), 70cm (B)
|
|
100cm (A), 76cm (B)
|
100cm (A), 80cm (B)
|
100cm (A), 90cm (B)
|
130cm (A), 30cm (B)
|
130cm (A), 40cm (B)
|
|
130cm (A), 50cm (B)
|
130cm (A), 60cm (B)
|
130cm (A), 70cm (B)
|
130cm (A), 76cm (B)
|
130cm (A), 80cm (B)
|
|
130cm (A), 90cm (B)
|
||||
As Shown
| DSPSC0300+ Side panel 300mm |
| DWQSC1400_V2 Design 8 View Walk in Quadrant 1400 |
Gross Weight Including Packaging
| DSPSC0300+ - panel - 12.5kg |
| DWQSC1400_V2 - walk in screen - 43.15kg |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000005_V2 | bottom seat(LH) |
| DS0000006_V2 | bottom seat(RH) |
| DS0000012_V2 | cap |
| DS0000011_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000018_V2 | cover(LH) |
| DS0000017_V2 | cover(RH) |
| DS0000020_V2 | cover- IM-AL |
| DS0000007_V2 | end part(RH) |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000004_V2 | wall frame sealing strip I L=1926 |
| DS0000003_V2 | wall frame sealing strip, L=1950 |
| DS0000001_V2 | wall profile, L=1926 for Hinge door, Side panel, quadrant door |
Downloads
-
2D CAD-File - DWG -
DWQSC1400+ DSPSC0300+
(DWQSC1400_.dwg)
-

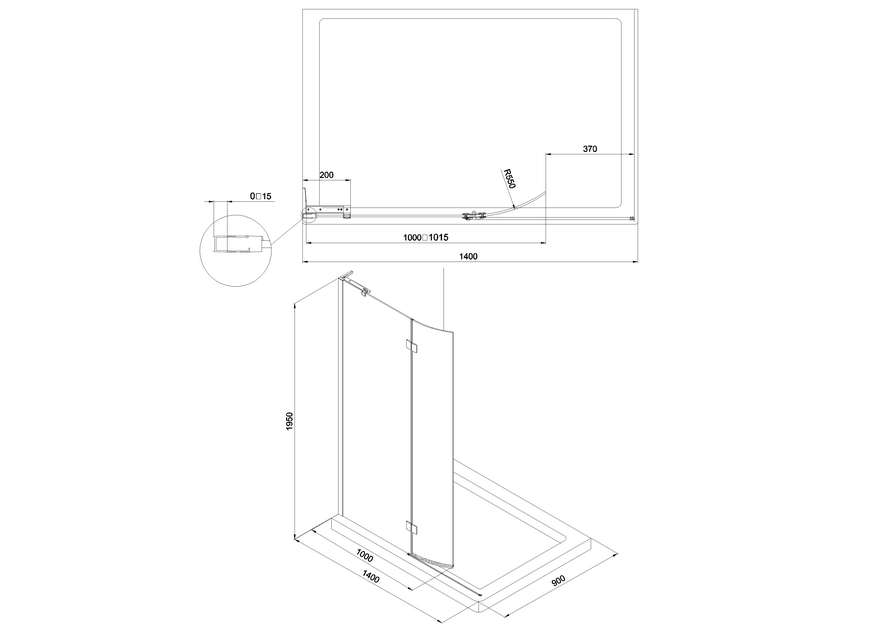

2D Drawing - PDF -
DWQSC1400+ DSPSC0300+
(DWQSC1400_.pdf)
2D Drawing - PDF - DWQSC1400+ DSPSC0300+
