Design 8 Pentagon

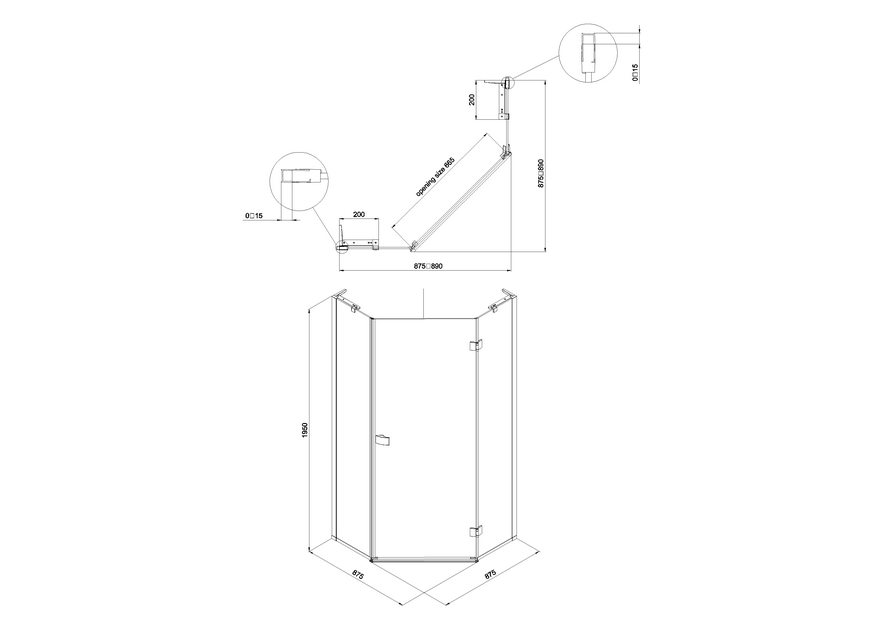

As Shown
| DPTSC0900+ Pentagon Enclosure 900mm |
Material
| DPTSC0900+ - pentagon - Aluminum |
Nett Weight
| DPTSC0900+ - pentagon - 50.7kg |
Gross Weight Including Packaging
| DPTSC0900+ - pentagon - 53.7kg |
Packed Dimension
| DPTSC0900+ - 2025 x 785 x 108 = 0.1717 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000011_V2 | cap |
| DS0000012_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000062_V2 | end Part LH Big x 1 for DPTSC0900+ |
| DS0000063_V2 | end Part RH Big x 1 for DPTSC0900+ |
| DS0000060_V2 | end Part RH Small x 1 for DPTSC0900+ |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000061_V2 | magnetic strip, AQ306=1948, AC133=1932 |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
Downloads
-
2D CAD-File - DWG -
DPTSC0900+
(DPTSC0900_.dwg)
-
2D Drawing - PDF -
DPTSC0900+
(DPTSC0900_.pdf)
2D Drawing - PDF - DPTSC0900+
