Design 8 Single Bath Screen

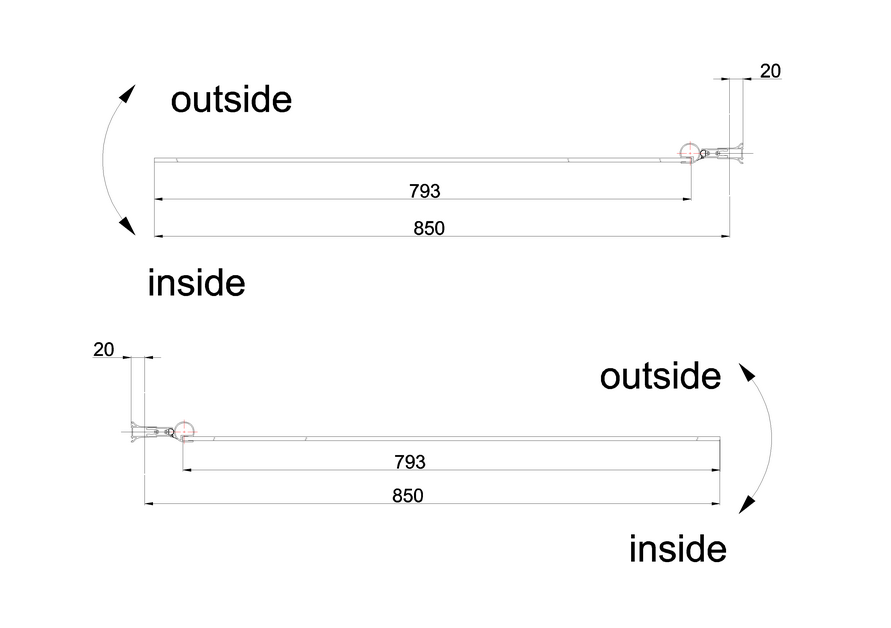

As Shown
| DBSSC0850 Design 8 Single Bath Screen |
Material
| DBSSC0850 - bathscreen - 0 |
Nett Weight
| DBSSC0850 - bathscreen - 20kg |
Gross Weight Including Packaging
| DBSSC0850 - bathscreen - 22.3kg |
Packed Dimension
| DBSSC0850 - 1555 x 880 x 85 = 0.1163 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000011_V2 | cap |
| DS0000012_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000103 | des Bottom hinge cover R Hinge (MP041) |
| DS0000100 | des Bottom Pivot Kit Left Hinge(MP024) |
| DS0000101 | des Bottom Pivot Kit Right Hinge(MP025) |
| DS0000102 | design bottom hinge cover left hinge |
| DS0000104 | design bottom pivot |
| DS0000094 | design Bottom Waterproof strip 777mm |
| DS0000009 | design cover |
| DS0000012 | design screw M35*25(ST3.5*25) |
| DS0000106 | design Top Hinge Cover(MP021) |
| DS0000107 | design Top Hinge Cover(MP027) |
| DS0000105 | design Top Pivot-MP197 |
| DS0000004 | design Wall Profile 1500mm (MP010) |
| DS0000008 | design Washer-PC071 |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000013 | ST4*50mm Screw |
| DS0000099 | top pivot kit(HR) |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000006 | wall Plug |
Downloads
-
2D CAD-File - DWG -
DBSSC0850
(DBSSC0850.dwg)
-
2D Drawing - PDF -
DBSSC0850
(DBSSC0850.pdf)
2D Drawing - PDF - DBSSC0850
-
3D STP - File - STP
-
DBSSC0850
