Design 8 Double Bath Screen

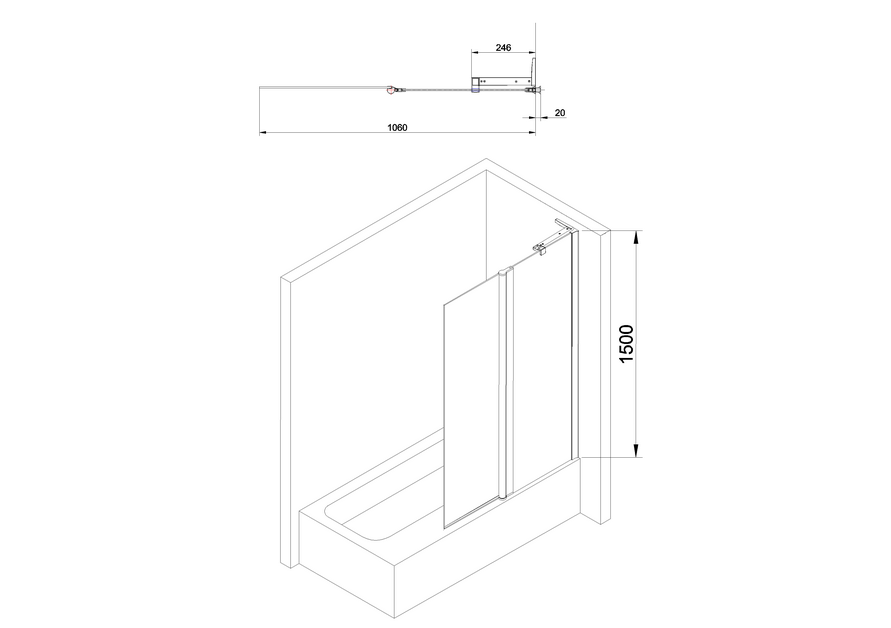

As Shown
| DBDSC1060+ Double Bath Screen |
Material
| DBDSC1060+ - bathscreen - 0 |
Nett Weight
| DBDSC1060+ - bathscreen - 24.5kg |
Gross Weight Including Packaging
| DBDSC1060+ - bathscreen - 27.5kg |
Packed Dimension
| DBDSC1060+ - 1580 x 630 x 85 = 0.0846 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000011+ | cap |
| DS0000012+ | cap |
| DS0000009+ | cover of hinge for all Design products |
| DS0000016+ | fixed part |
| DS0000021+ | hinge for all Design products |
| DS0000010+ | M4 *8mm Screw for all Design products |
| DS0000014+ | wall bracket |
| DS0000015+ | wall bracket cover |
Downloads
-
2D CAD-File - DWG -
DBDSC1060+
(DBDSC1060_.dwg)
-
2D Drawing - PDF -
DBDSC1060+
(DBDSC1060_.pdf)
2D Drawing - PDF - DBDSC1060+
-
3D STP - File - STP
-
DBDSC1060+
pending
