Design 8 Triple Bath Screen

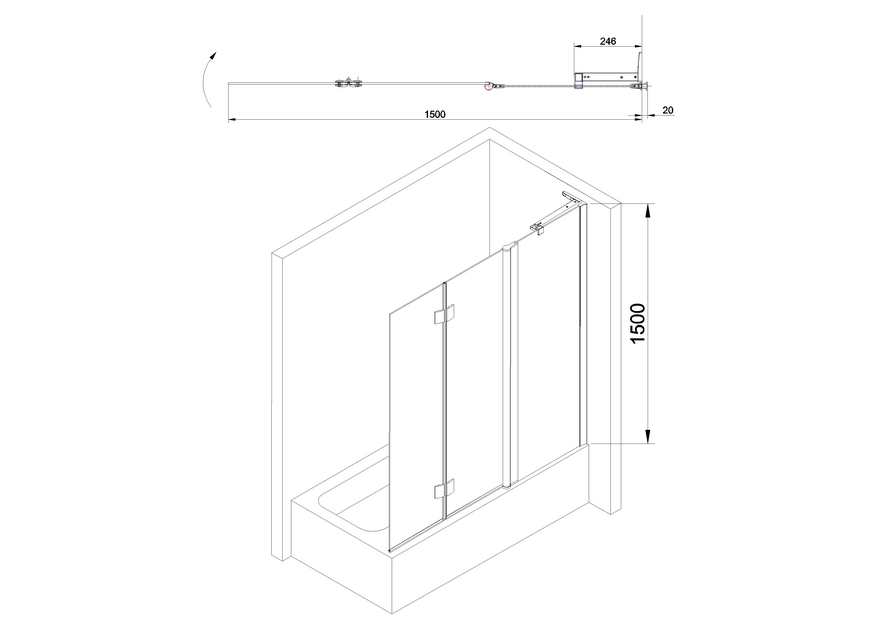

As Shown
| DBTSC1500+ Triple Bath Screen |
Material
| DBTSC1500+ - bathscreen - 0 |
Nett Weight
| DBTSC1500+ - bathscreen - 35kg |
Gross Weight Including Packaging
| DBTSC1500+ - bathscreen - 37.8kg |
Packed Dimension
| DBTSC1500+ - 1660 x 645 x 95 = 0.1017 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000011+ | cap |
| DS0000012+ | cap |
| DS0000023+ | cap(LH) |
| DS0000022+ | cap(RH) |
| DS0000009+ | cover of hinge for all Design products |
| DS0000016+ | fixed part |
| DS0000021+ | hinge for all Design products |
| DS0000010+ | M4 *8mm Screw for all Design products |
| DS0000014+ | wall bracket |
| DS0000015+ | wall bracket cover |
Downloads
-
2D CAD-File - DWG -
DBTSC1500+
(DBTSC1500_.dwg)
-
2D Drawing - PDF -
DBTSC1500+
(DBTSC1500_.pdf)
2D Drawing - PDF - DBTSC1500+
-
3D STP - File - STP
-
DBTSC1500+
pending
