130 Freestanding Vanity Unit with Doors
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Freestanding 130 Vanity Unit with doors - Dark Olive and Minerva Carrara white worktop with two integrated white basins Dark Olive Freestanding 130 Vanity Unit with doors - Sand and Minerva Carrara white worktop with two integrated white basins Sand Freestanding 130 Vanity Unit with doors - Matt White and Minerva Carrara white worktop with two integrated white basins Matt White
Freestanding 130 Vanity Unit with doors - Classic Grey and Minerva Carrara white worktop with two integrated white basins Classic Grey Freestanding 130 Vanity Unit with doors - Blue and Minerva Carrara white worktop with two integrated white basins Blue 1300 Freestanding Vanity Unit with Doors - Matt Green Matt Green
Worktop options

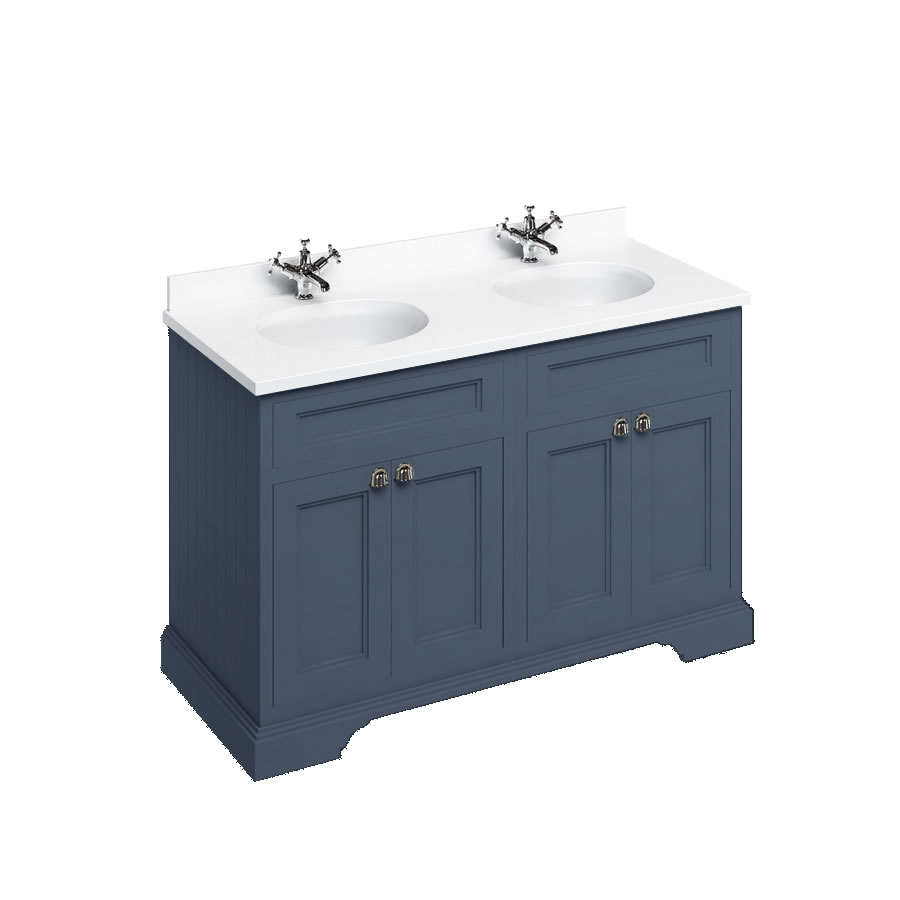

Freestanding 130 Vanity Unit with doors - Blue and Minerva Carrara white worktop with two integrated white basins Minerva Carrara white worktop Freestanding 130 Vanity Unit with doors - Blue and Minerva white worktop with two integrated white basins Minerva white worktop Freestanding 130 Vanity Unit with doors - Blue and Minerva black granite worktop with two integrated white basins Minerva black granite worktop
Alternate Text
As Shown
FC9B Freestanding 130 Vanity Unit with doors - Blue
BC12 Minerva carrara white with double vanity bowl
FC9B_BC12  -  Combined product code
Colour
FC9B - base unit - Blue
BC12 - worktop with intergrated basin - carrara white
Material
FC9B - base unit - Engineered Wood - MDF
BC12 - worktop with intergrated basin - minerva solid surface material
Size
FC9B - 1296 x 548 x 820mm
Nett Weight
FC9B - base unit - 60.5kg
BC12 - worktop with intergrated basin - 41kg
Gross Weight Including Packaging
FC9B - base unit - 72kg
BC12 - worktop with intergrated basin - 44kg
Packed Dimension
FC9B - 1384 x 660 x 1075 = 0.9819 m3
BC12 - 1420 x 625 x 255 = 0.2263 m3
Tap Hole Options
Tap holes are drilled by the installer.
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
EN14749:2016
Additional Information
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes.
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight.
Doors are soft closing
Chrome plated metal handles
Fully assembled
One adjustable glass shelf
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon.
SP945 assembling screws & fixings for Burlington and Aqua furniture (10pcs for one set)
SP1617 flat door panel for FF8B, FC9B, FC1B, FC2B, FC3B
SP1638 packaging for P130 plinth
SP1637 spare FC9 Carcass packaging box including inner honeycomb cardboards & plastic bag (no label)
Downloads
  • Instructions - PDF - FC9B (English)
  • Instructions - PDF - FC9B (French)
  • 3D DWG - File - DWG  -  FC9B_BC12 (90554.dwg)
  • 3D DXF - File - DXF  -  FC9B_BC12 (90554.dxf)
  • 3D IGS - File - IGS  -  FC9B_BC12 (90554.igs)
  • 3D RFA BIMM Objects - File - RFA  -  FC9B_BC12 (90554.rfa)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
