|A51 CHR Burlington seat handle Chrome|
|BOTA Bespoke Botanical Pink|
|C1 510mm close coupled/low level ceramic lever cistern|
|P2 Low/high level pan|
|S18 Gloss white soft close hinge seat|
|T31 CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector|
|A51 CHR - accessories - chrome plated|
|BOTA - bespoke finish - Botanical Pink|
|C1 - cistern - white|
|P2 - pan - white|
|S18 - seat - white|
|T31 CHR - fittings - chrome plated|
|A51 CHR - accessories - brass|
|BOTA - bespoke finish - n/a|
|C1 - cistern - vitreous china|
|P2 - pan - vitreous china|
|S18 - seat - carbamide|
|T31 CHR - fittings - brass|
|A51 CHR - 56 x 50 x 8mm|
|C1 - 205 x 515 x 320mm|
|P2 - 524 x 360 x 403mm|
|S18 - 370 x 439 x 56mm|
|T31 CHR - 221 x 38 x 461mm|
|A51 CHR - accessories - 0.04kg|
|C1 - cistern - 16.15kg|
|P2 - pan - 17kg|
|S18 - seat - 2.53kg|
|T31 CHR - fittings - 1.19kg|
|A51 CHR - accessories - 0.07kg|
|C1 - cistern - 18.45kg|
|P2 - pan - 18.7kg|
|S18 - seat - 2.76kg|
|T31 CHR - fittings - 1.64kg|
|A51 CHR - 60 x 60 x 100 = 0.0004 m3|
|C1 - 225 x 540 x 370 = 0.045 m3|
|P2 - 380 x 550 x 438 = 0.0915 m3|
|S18 - 462 x 376 x 72 = 0.0125 m3|
|T31 CHR - 505 x 245 x 75 = 0.0093 m3|
*Full terms & conditions here
|BOTA||-||WRAS Not Applicable|
|C1||-||WRAS Approved (Cistern Fittings)|
|T31 CHR||-||WRAS Not Applicable|
|P2||-||WRAS Not Applicable|
|S18||-||WRAS Not Applicable|
|A51 CHR||-||WRAS Not Applicable|
BS EN 248:2002
BS EN 33:2019
BS EN 14055:2018
BS EN 997:2018

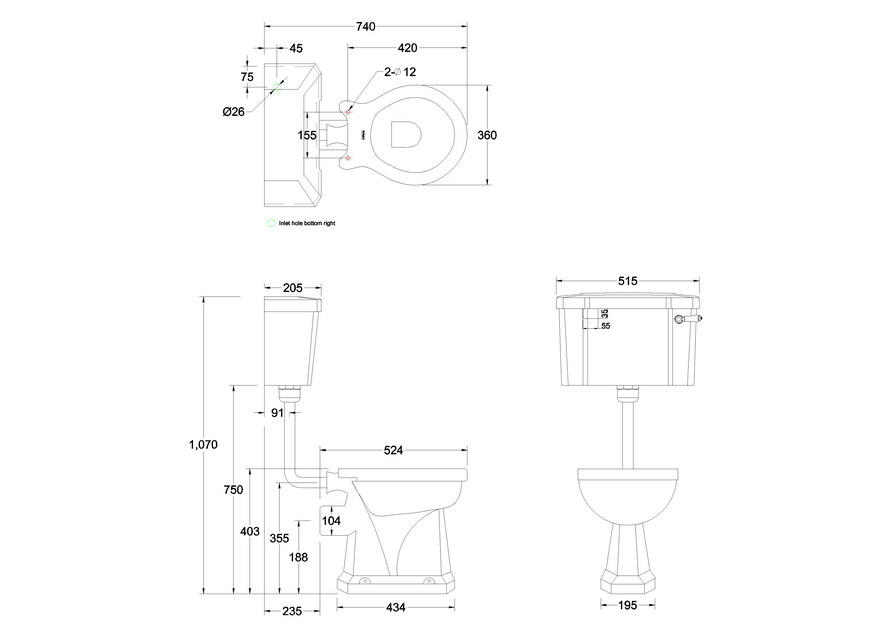

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.
Water Inlet valve hole is located on the base of cistern tank on the right hand side.
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
P trap standard height pan - height from floor to pan rim is 40cm.
Recommended to be used with cistern tank isolation valve W25.
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.
Regal Height pan ( floor to pan rim height 48cm ) available : P16.
Cistern can be used with optional decorative Ornate Brackets T32 CHR.
Low level wc must be used with standard Burlington toilet seats.
Supplied with floor fixings.
|SP11||51cm Cistern Lid for C1 & C2|
|SP511||back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug|
|SP1021||bottom sealing washer of flush valve for product C1, C3, C3, C4|
|SP965||brass decorative cover of cistern connection for product T31 CHR|
|SP1353||brass fixing nut for T30 CHR, T31 CHR T33 CHR, T34 CHR, T30 GOLD, T30 NKL|
|SP476||buffers for seat lid (set)|
|SP475||buffers for seat ring (set)|
|SP8||ceramic Cistern lever for Close Coupled, Low Level Cistern|
|SP84||cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)|
|SP390 GOLD||cistern Lever for C1, C3 - GOLD|
|SP973||cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D|
|SP890||flush pipe of product T31 CHR|
|SP830||hinge covers of product S13 & S18|
|SP443||hinge fixings for S13, S18 seat|
|SP504-2||inlet valve for Burlington close coupled cisterns|
|SP975||inner box of product S18|
|SP508||kit for close couple cistern|
|SP507||kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR|
|SP160||l shape bracket(pair) for T31CHR|
|SP5A||lever Flush Bottom Entry cistern fitting with ceramic lever|
|SP17||screw fixing pack for pan and bidet|
|SP410||SP410 Soft close hinge fixings of S18 seat (one set)|
|SP802||the bigger stopper for SP5A, ARCSP7, C24C, SP7|
