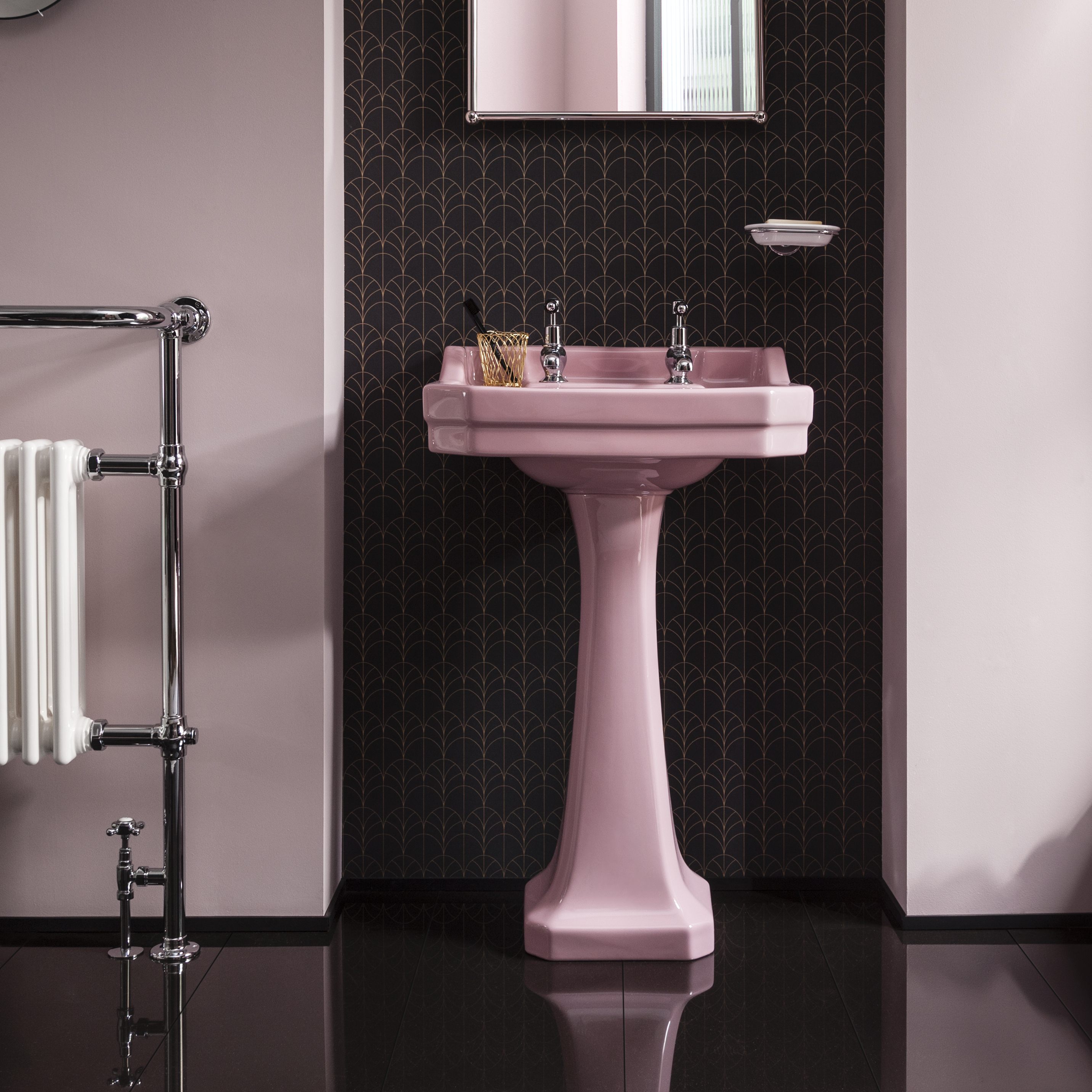

Bespoke Confetti Pink Edwardian 61cm Basin with Standard Pedestal
As Shown
| B51TH Edwardian 61cm basin one tap hole |
| P1 Standard pedestal |
| PINK Bespoke Confetti Pink |
Colour
| B51TH - basin - Gloss White |
| P1 - pedestal - Gloss White |
| PINK - bespoke finish - Confetti Pink |
Nett Weight
| B51TH - basin - 18.45kg |
| P1 - pedestal - 13.3kg |
Gross Weight Including Packaging
| B51TH - basin - 21.65kg |
| P1 - pedestal - 15.15kg |
Packed Dimension
| B51TH - 650 x 534 x 298 = 0.1034 m3 |
| P1 - 702 x 307 x 270 = 0.0582 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
B5 1TH PINK P1 PINK
(B5 1TH_P1_20201127.dwg)
-
2D Drawing - PDF -
B5 1TH PINK P1 PINK
(B5 1TH_P1_20201127.pdf)
2D Drawing - PDF - B5 1TH PINK P1 PINK
-
3D STP - File - STP
-
B5 1TH PINK P1 PINK
(B5 1TH.stp)
-
3D STP - File - STP
-
B5 1TH PINK P1 PINK
(P1.stp)
