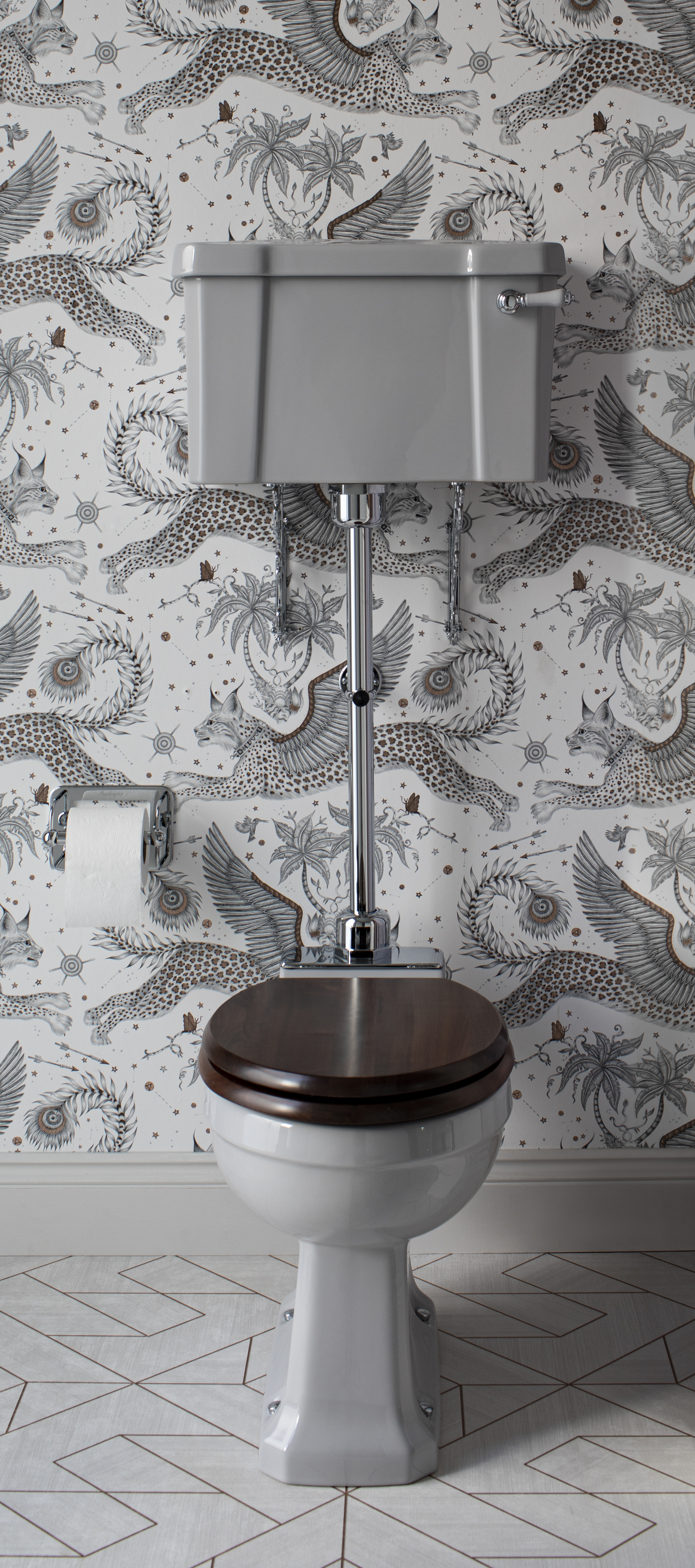

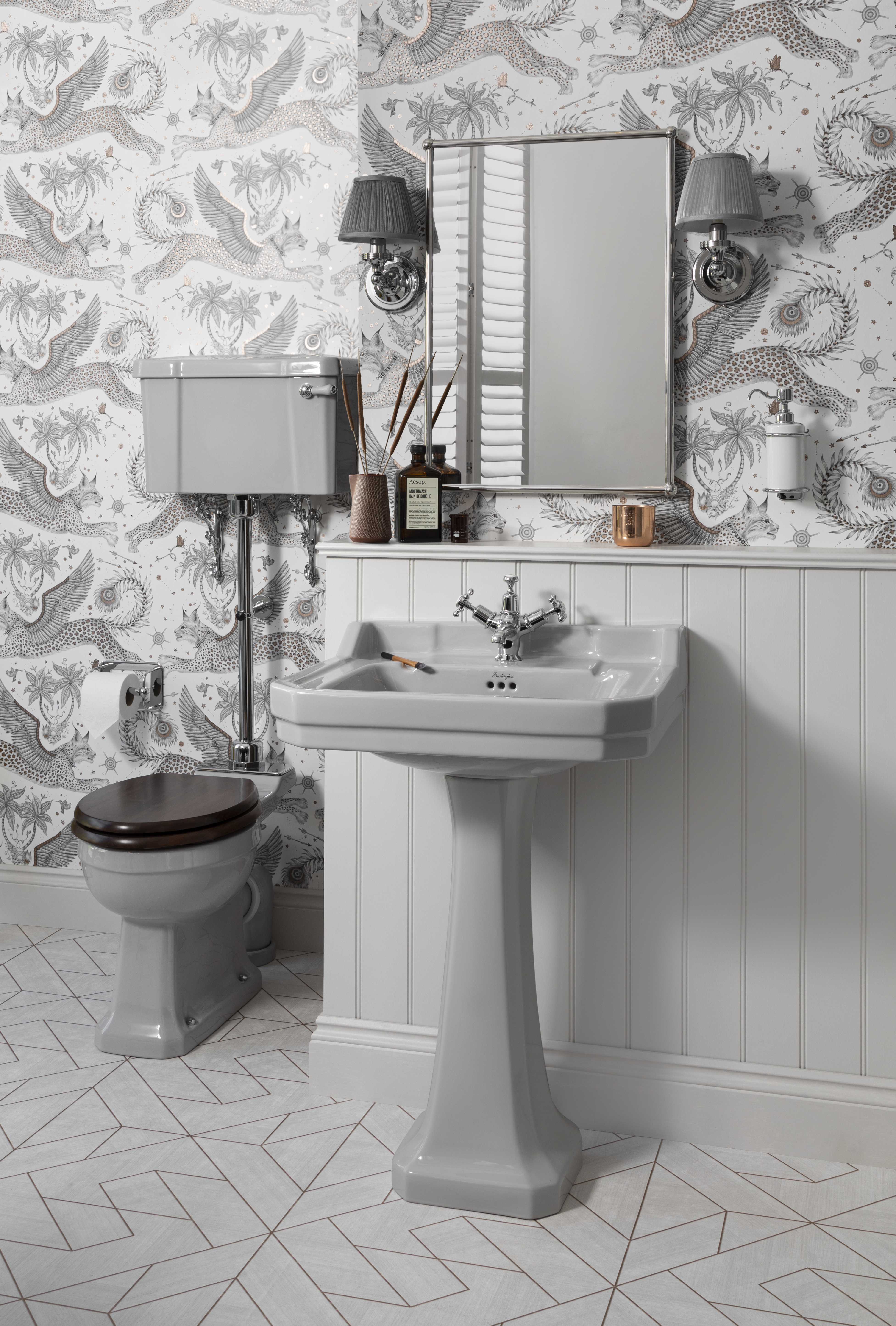

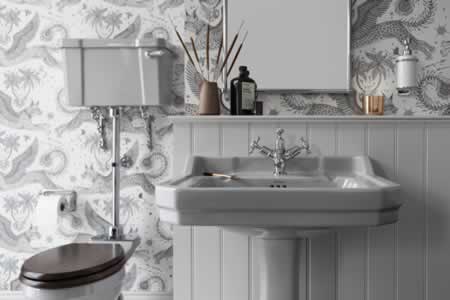

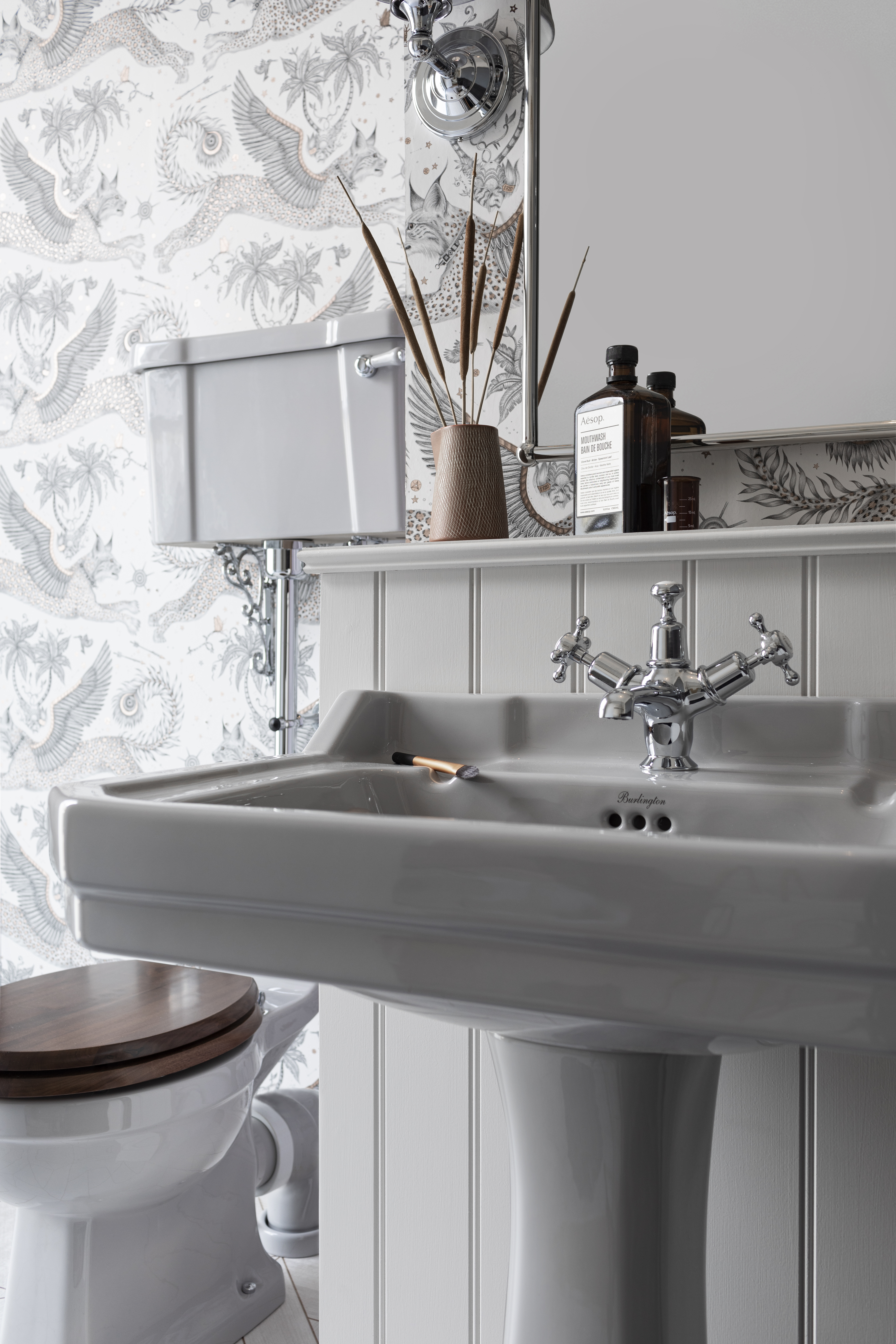

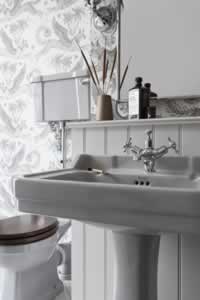

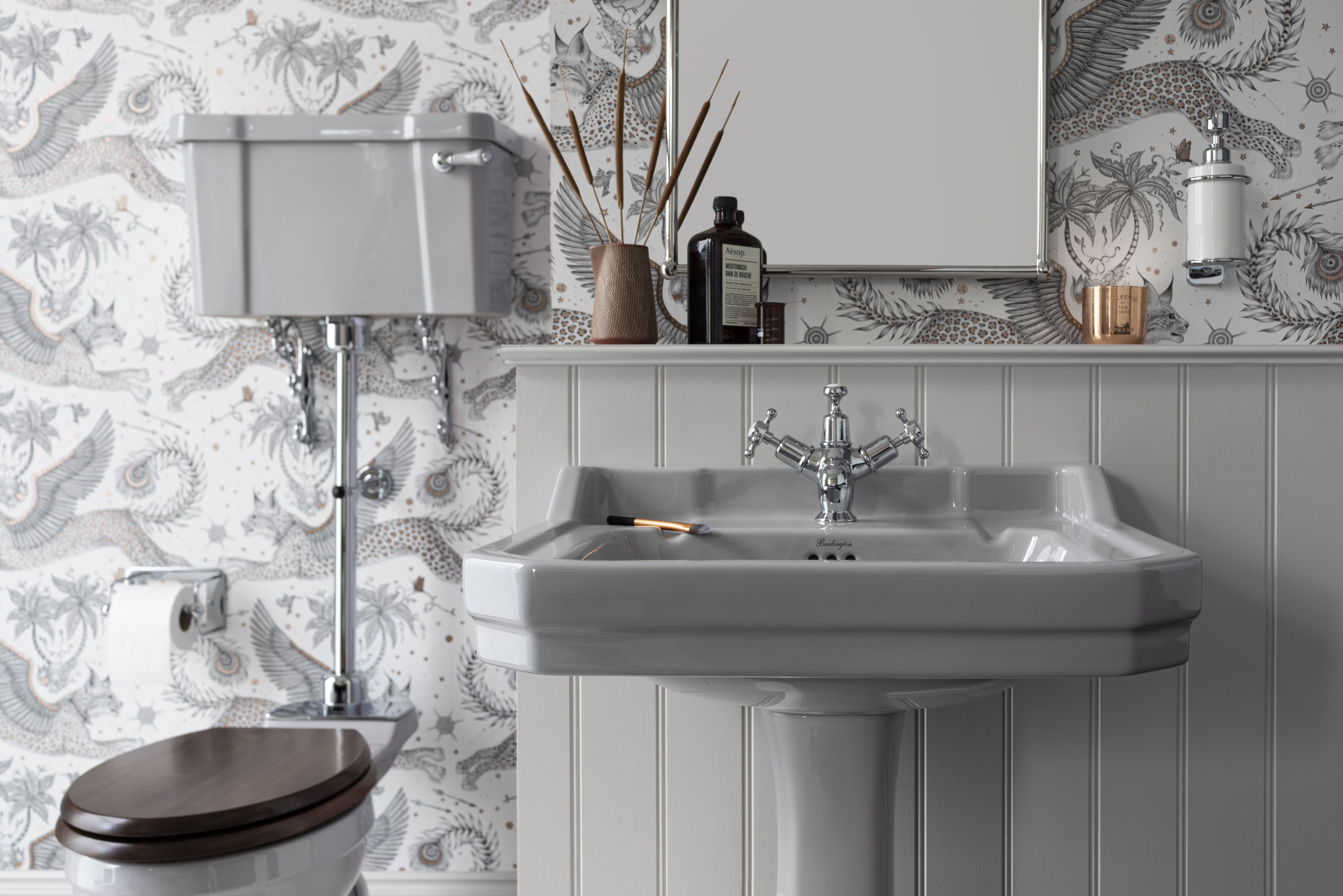

Bespoke Moon Grey Standard Medium Level WC with 520 Lever Cistern
As Shown
| C1 510mm close coupled/low level ceramic lever cistern |
| GREY Bespoke Moon Grey |
| P5 Close coupled pan |
| S101 Un-painted Seat with the buffers |
| SP462 Burlington soft close hinges with screws (pair) - Chrome |
| T33CHR Medium Level Flush Pipe Kit Including Medium Ornate Brackets In Chrome |
Colour
| C1 - cistern - Gloss White |
| GREY - bespoke finish - Moon Grey |
| P5 - pan - Gloss White |
| S101 - seat - No Finish |
| SP462 - hinge - Polished Chrome |
| T33CHR - fittings - Polished Chrome |
Material
| C1 - cistern - Vitreous China |
| GREY - bespoke finish - n/a |
| P5 - pan - Vitreous China |
| S101 - seat - Engineered Wood - MDF |
| SP462 - hinge - Zinc Alloy |
| T33CHR - fittings - Brass |
Size
| C1 - 205 x 515 x 330mm |
| P5 - 655 x 355 x 450mm |
| S101 - 432 x 371 x 67mm |
| SP462 - 80 x 85 x 40mm |
| T33CHR - 105 x 220 x 703mm |
Nett Weight
| C1 - cistern - 16.15kg |
| P5 - pan - 21.45kg |
| S101 - seat - 2.6kg |
| SP462 - hinge - 0.52kg |
| T33CHR - fittings - 3.23kg |
Gross Weight Including Packaging
| C1 - cistern - 18.45kg |
| P5 - pan - 24.15kg |
| S101 - seat - 2.85kg |
| SP462 - hinge - 0.52kg |
| T33CHR - fittings - 3.94kg |
Packed Dimension
| C1 - 537 x 227 x 360 = 0.0439 m3 |
| P5 - 672 x 370 x 475 = 0.1181 m3 |
| S101 - 455 x 400 x 64 = 0.0116 m3 |
| SP462 - 85 x 240 x 40 = 0.0008 m3 |
| T33CHR - 785 x 220 x 65 = 0.0112 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 248:2002 |
|
BS EN 33:2019 |
Additional Information
|
Press lever down for 6 litre flush and up for 3 litre flush. |
|
P trap standard height pan - height from floor to pan rim is 40cm. |
|
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26. |
|
The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR. |
|
The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards). |
|
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side. |
|
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug. |
|
Dual flush cistern fittings with ceramic lever on the right. |
| SP11 | 51cm Cistern Lid for C1 & C2 |
| SP511 | back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug |
| SP1021 | bottom sealing washer of flush valve for product C1, C3, C3, C4 |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP462 | burlington soft close hinges with screws (pair) - Chrome |
| SP8 | ceramic Cistern lever for Close Coupled, Low Level Cistern |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP84 | cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve) |
| SP390GOLD | cistern Lever for C1, C3 - GOLD |
| SP119 | decorative cover of cistern connection for T30CHR & T33CHR |
| SP1355 | fixings for T33 CHR |
| SP136 | flush cone washer for T33 CHR |
| SP187 | flush pipe for T33CHR |
| SP1323 | flush pipe wall bracket for T33 CHR |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504_2 | inlet valve for Burlington close coupled cisterns |
| SP508 | kit for close couple cistern |
| SP507 | kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR |
| SP5A | lever Flush Bottom Entry cistern fitting with ceramic lever |
| SP898 | pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR |
| SP169 | rubber insert for all finishes products of T30, T33, SP20 clip |
| SP17 | screw fixing pack for pan and bidet |
| SP802 | the bigger stopper for SP5A, ARCSP7, C24C, SP7 |
| SP460 | thick rubber washer for T33CHR |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP864 | white buffers for the seat ring & lid for product S45, ARCS45 NKL, S46, RIV.025, S101 |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
