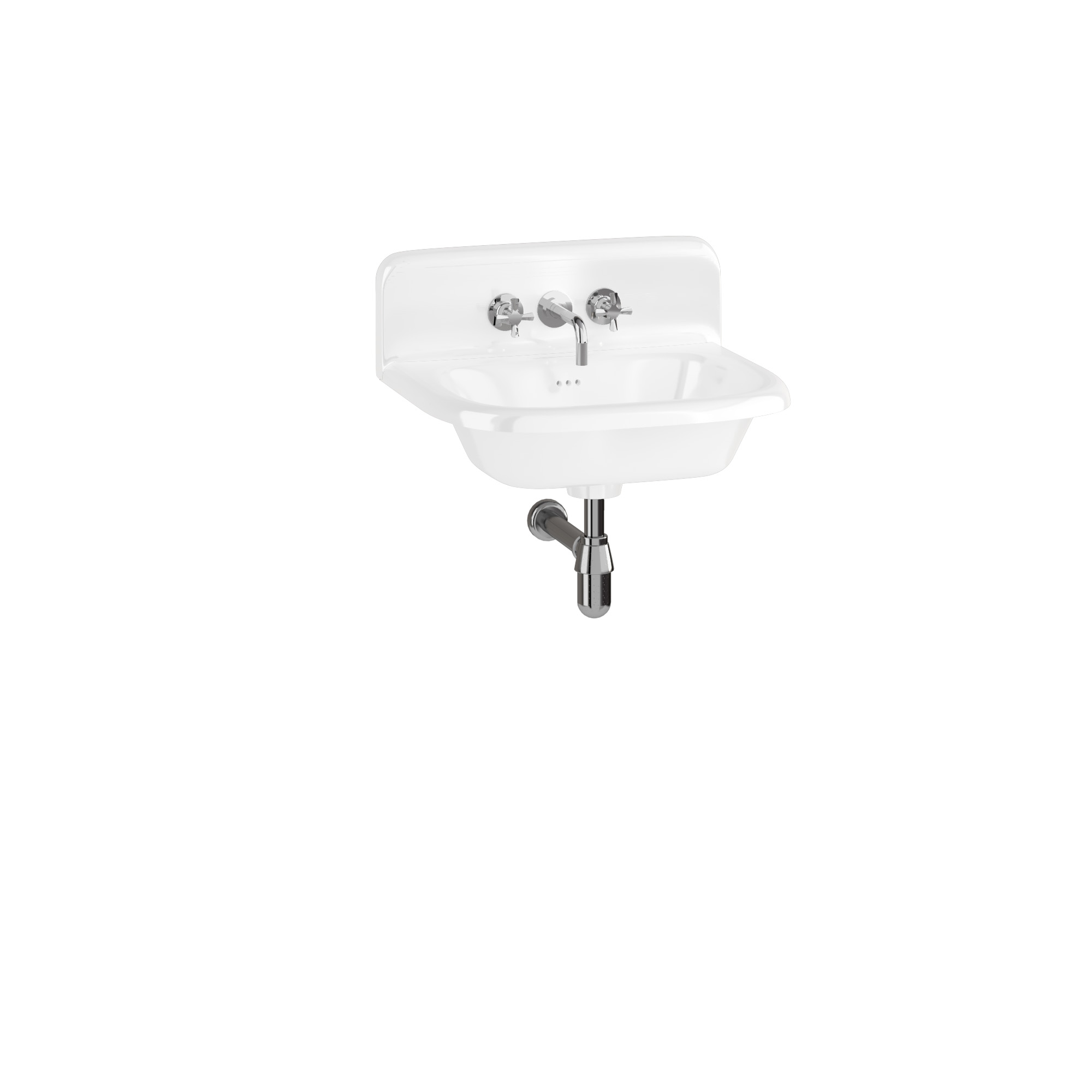

55 x 47 Roll Top Basin with overflow and up-stand
Product Options
installation options
|
with basin stand
|

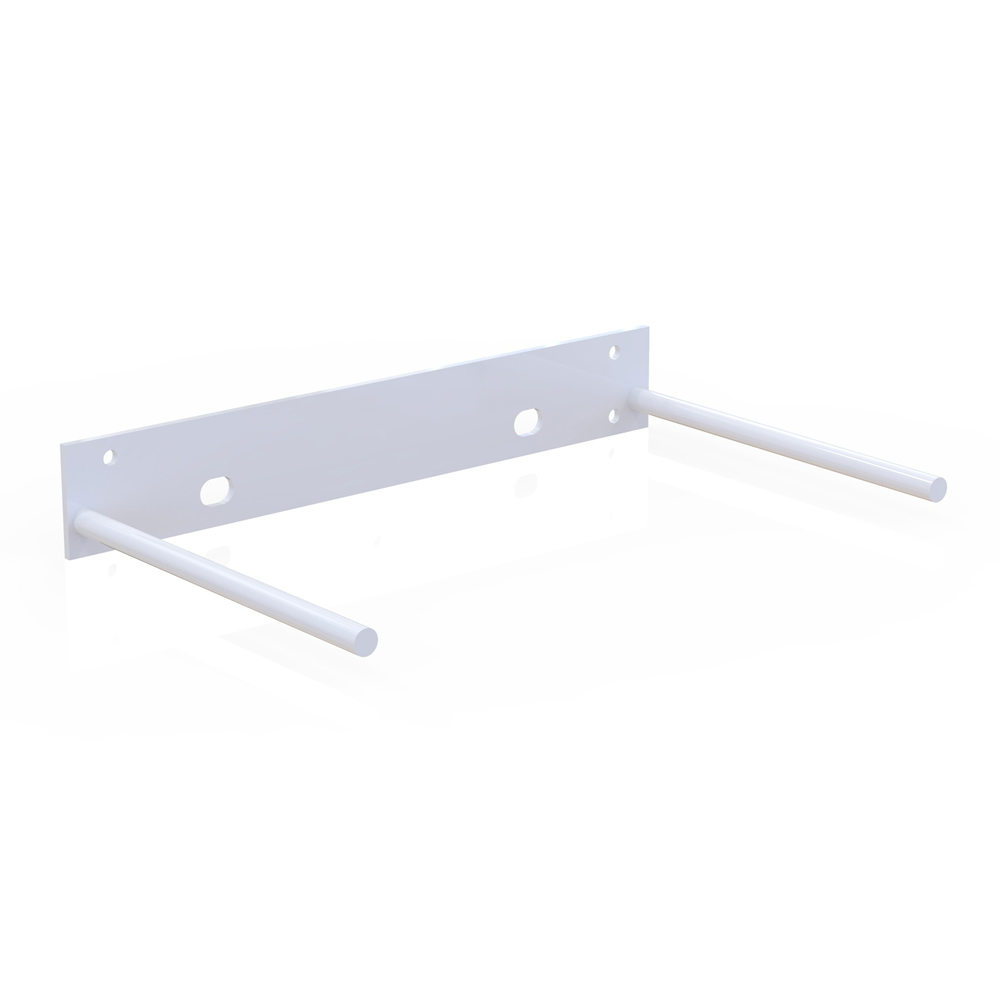

with wall bracket
|
As Shown
| B7E UPS 55x47 roll top basin with overflow and up-stand |
| B7ES Roll top basin stand |
Nett Weight
| B7E UPS - basin stand - 11kg |
| B7ES - basin stand - 5kg |
Gross Weight Including Packaging
| B7E UPS - basin stand - 15.5kg |
| B7ES - basin stand - 5.6kg |
Packed Dimension
| B7E UPS - 610 x 530 x 385 = 0.1245 m3 |
| B7ES - 530 x 460 x 86 = 0.021 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
Supplied with a template to define the taps holes.Overflow hole is predrilled. |
| SP968 | small adjustable supports for the basin stands |
Downloads
- Instructions - PDF - B7E UPS (English)
- Instructions - PDF - B7ES (English)
- Instructions - PDF - B7E UPS (French)
- Instructions - PDF - B7ES (French)
- 2D CAD-File - DWG - B7E UPS B7ES (B7E UPS_B7ES.dwg)
-

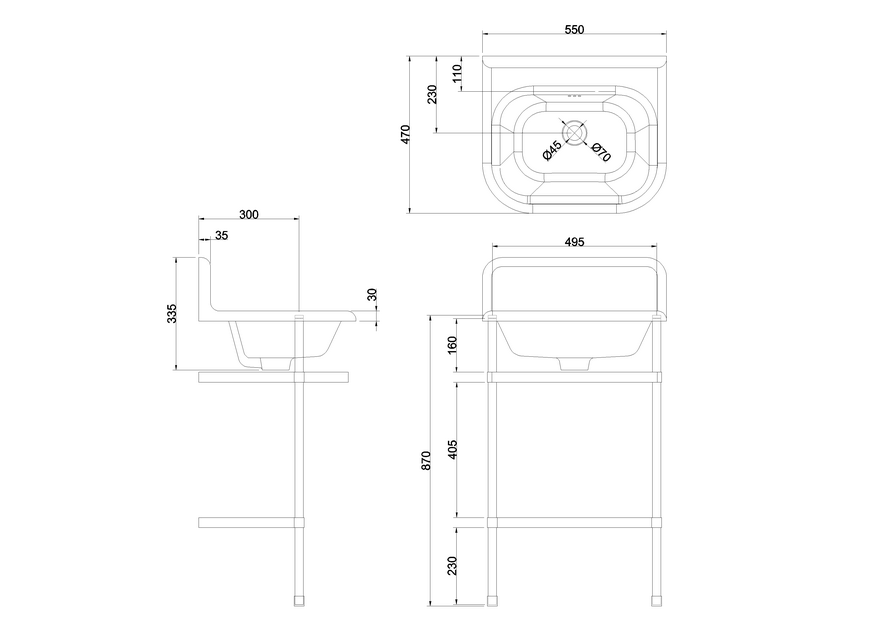

2D Drawing - PDF -
B7E UPS B7ES
(B7E UPS_B7ES.pdf)
2D Drawing - PDF - B7E UPS B7ES
-
3D DWG - File - DWG
-
B7E UPS B7ES
(B7E UPS B7ES-3d.DWG)
-
3D RFA BIMM Objects - File - RFA
-
B7E UPS B7ES
(B7E UPS B7ES-3d.rfa)
-
3D STP - File - STP
-
B7E UPS B7ES
(B7E UPS B7ES-3d.stp)
-
3D STP - File - STP
-
B7E UPS B7ES
(B7E UPS.stp)
