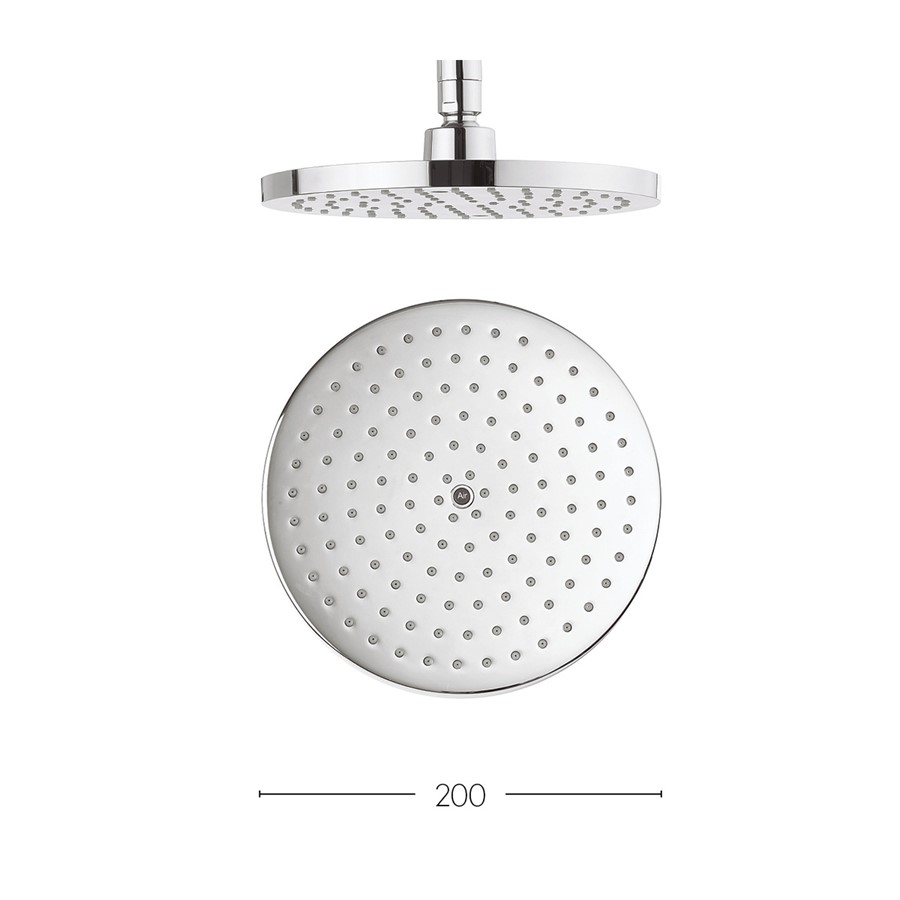

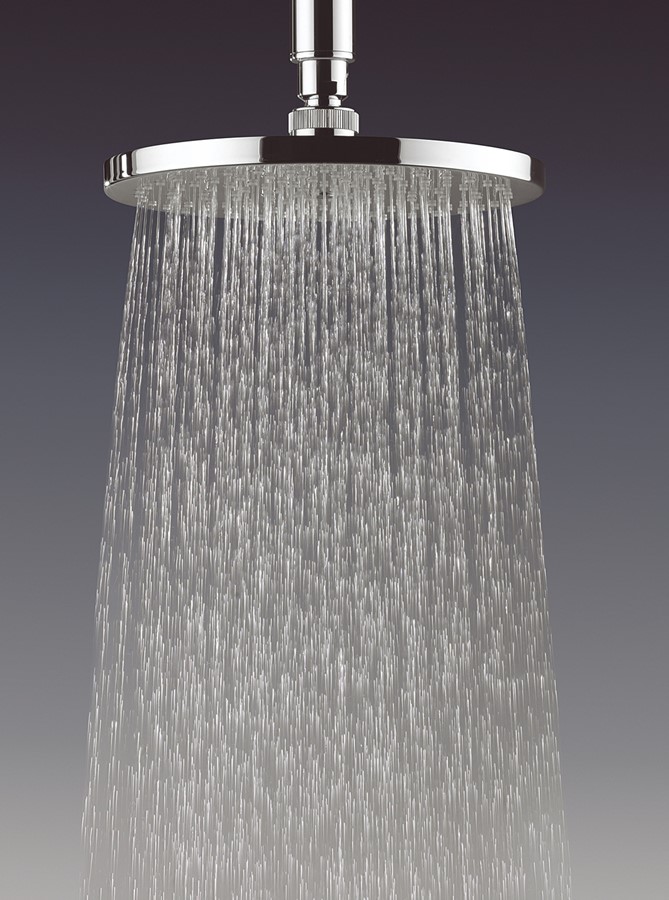

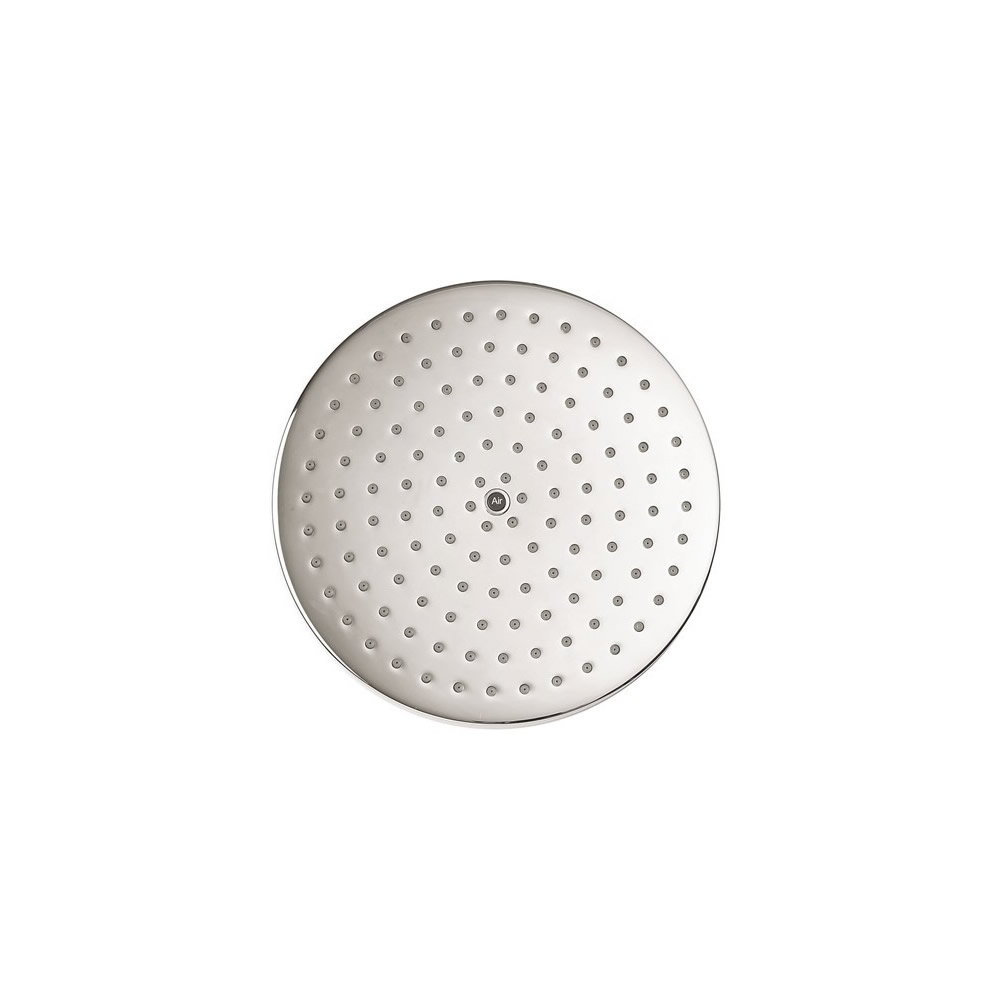

Central 200mm Showerhead
As Shown
| FH200C_V2 − |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Style: Round |
|
Mount Type: Ceiling or wall mount |
|
Range: Central |
|
Product Notes: Shower arm sold separately |
|
Water Pressure: HP1 |
|
Material: Brass |
|
Spray Modes: Single mode |
|
Diameter: Ø200mm |
|
Head Thickness: 12mm |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| n/a | n/a | 9.9 | 14.4 | 17.75 | n/a | n/a |
Downloads
- Specifications - PDF - FH200C+
-

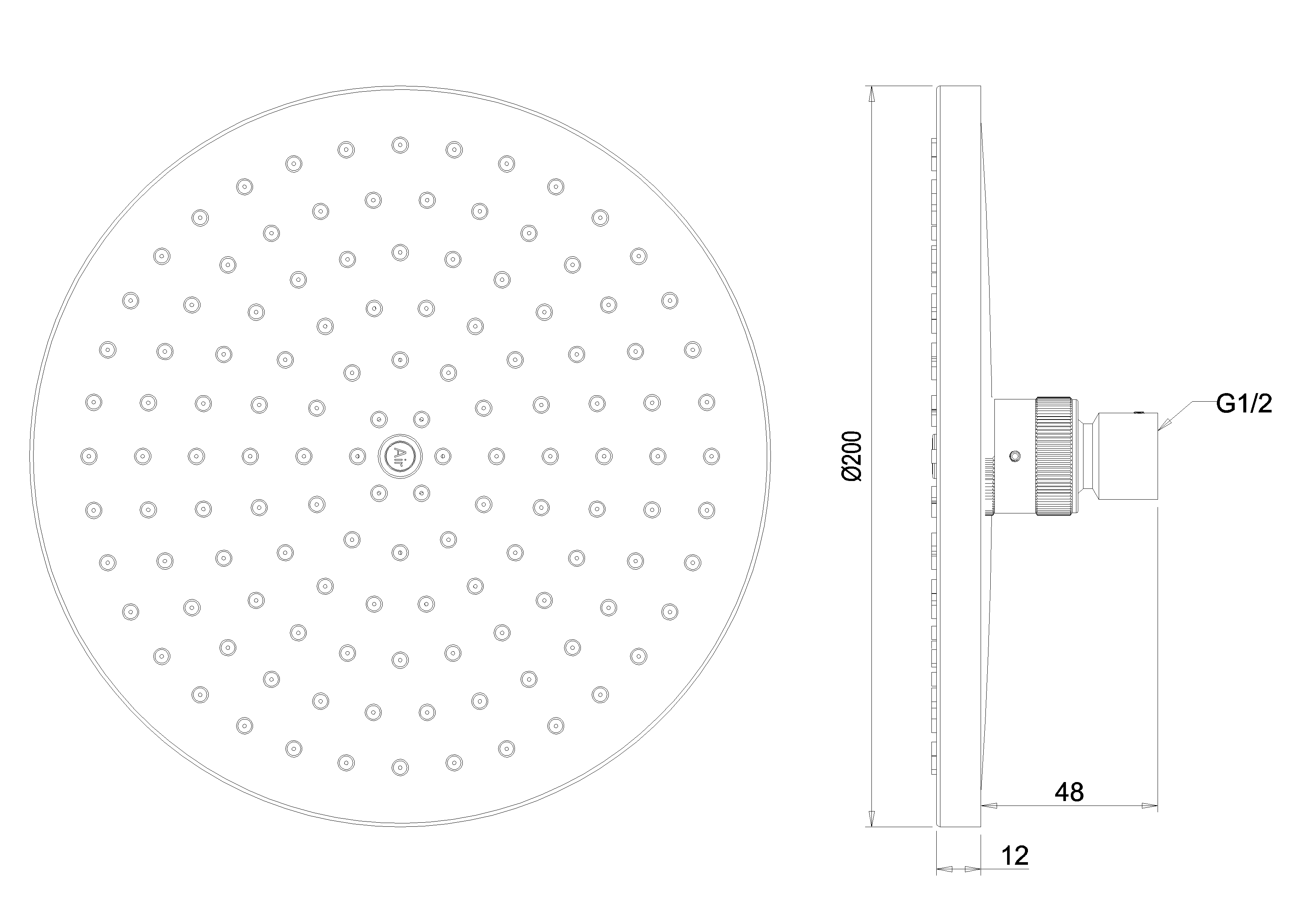

2D CAD-File - DWG -
FH200C+
(fh200c-cad.dwg)
-
2D Drawing - PDF -
FH200C+
(fh200c-cad.pdf)
2D Drawing - PDF - FH200C+
