Design Basin Monobloc
As Shown
| DE110DNC Basin Monobloc W/O Pop-up-waste |
Material
| DE110DNC - basin monobloc - Brass |
Nett Weight
| DE110DNC - basin monobloc - 1.75kg |
Gross Weight Including Packaging
| DE110DNC - basin monobloc - 1.85kg |
Packed Dimension
| DE110DNC - 285 x 235 x 72 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Mount Type: Basin Mounted |
|
Range: Design |
|
Spout Projection: 116mm |
|
Spout Style: Fixed Spout |
|
Lever Type: Single Lever |
|
Water Pressure: LP |
|
Waste: Without pop-up-waste |
| BS110FA1 | base ring from design range |
| X1A030N | BASIN CARTRIDGE FROM DESIGEN RANGE (DE110, WP120, PRO120) |
| FT110FB1 | basin flexitail from blade basin monoblo |
| DE001 | DE110DPC POP UP ROD |
| FT110FC1 | design Basin Flexitail |
Downloads
- Specifications - PDF - DE110DNC
-
2D CAD-File - DWG -
DE110DNC
(de110dnc.dwg)
-

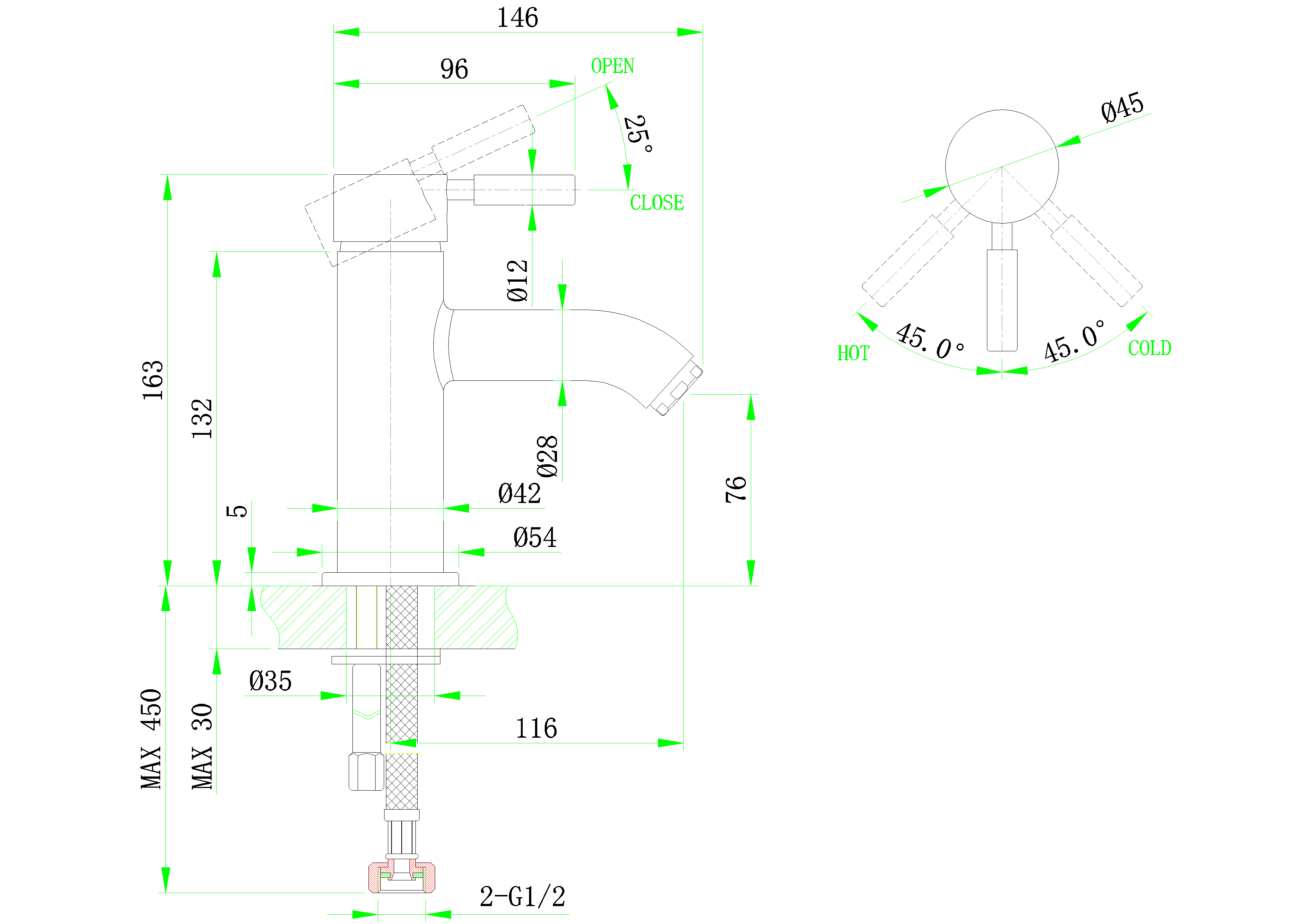

2D Drawing - PDF -
DE110DNC
(de110dnc.pdf)
2D Drawing - PDF - DE110DNC
-
