Design Bidet Monobloc
As Shown
| DE210DPC Bidet Monobloc with pop up waste |
Material
| DE210DPC - bidet monobloc - Brass |
Nett Weight
| DE210DPC - bidet monobloc - 1.9kg |
Gross Weight Including Packaging
| DE210DPC - bidet monobloc - 2kg |
Packed Dimension
| DE210DPC - 285 x 235 x 72 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Mount Type: Bidet Mounted |
|
Range: Design |
|
Spout Projection: 129mm |
|
Spout Style: Fixed Spout |
|
Lever Type: Single Lever |
|
Water Pressure: LP |
|
Waste: With pop-up-waste |
| BS110FA1 | base ring from design range |
| FT110FB1 | basin flexitail from blade basin monoblo |
| DE004 | design Pop up Plug |
Downloads
- Specifications - PDF - DE210DPC
- Specifications - PDF - DE210DPC
-
2D CAD-File - DWG -
DE210DPC
(de210dpc_cad.dwg)
-

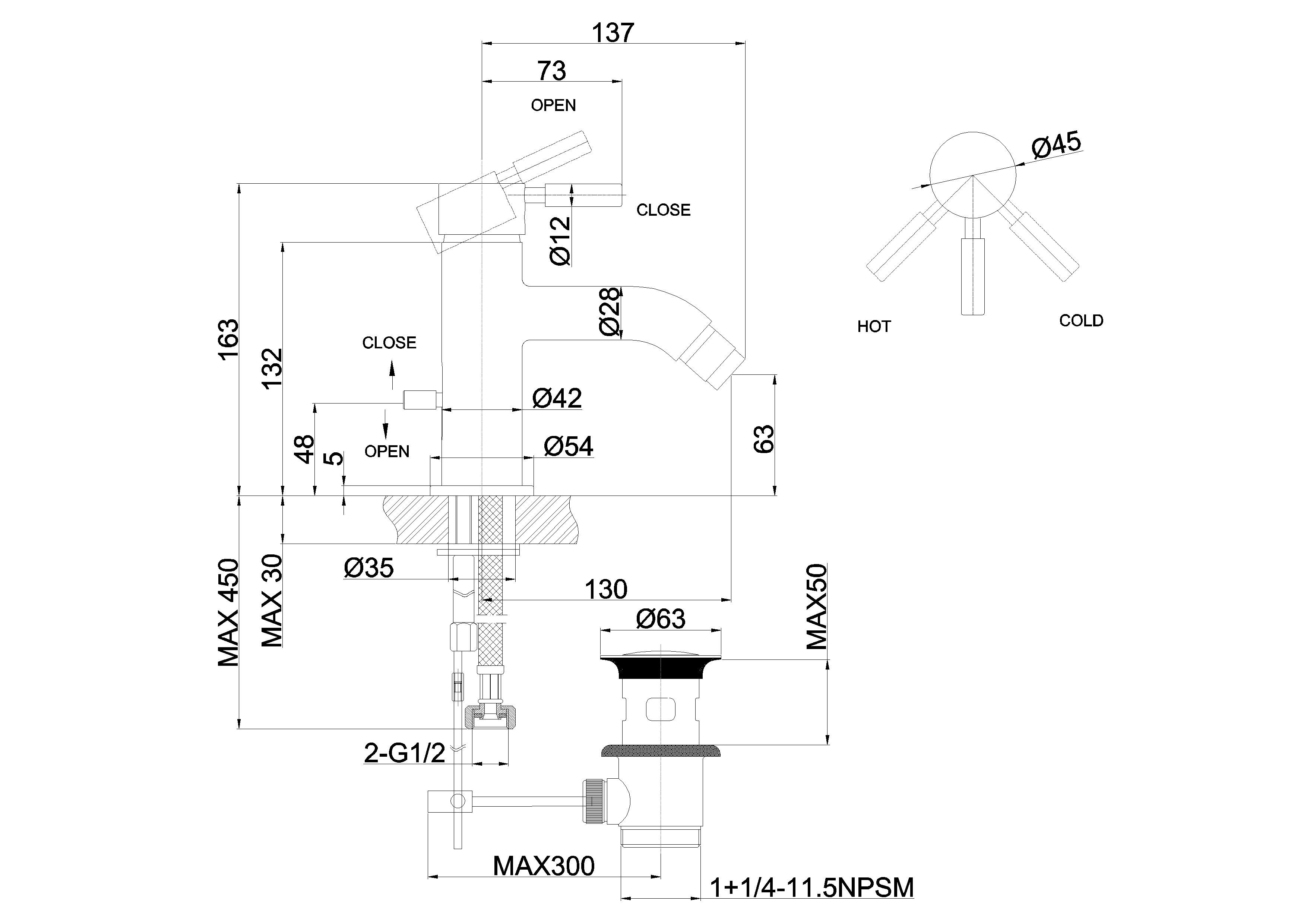

2D Drawing - PDF -
DE210DPC
(de210dpc_cad.pdf)
2D Drawing - PDF - DE210DPC
