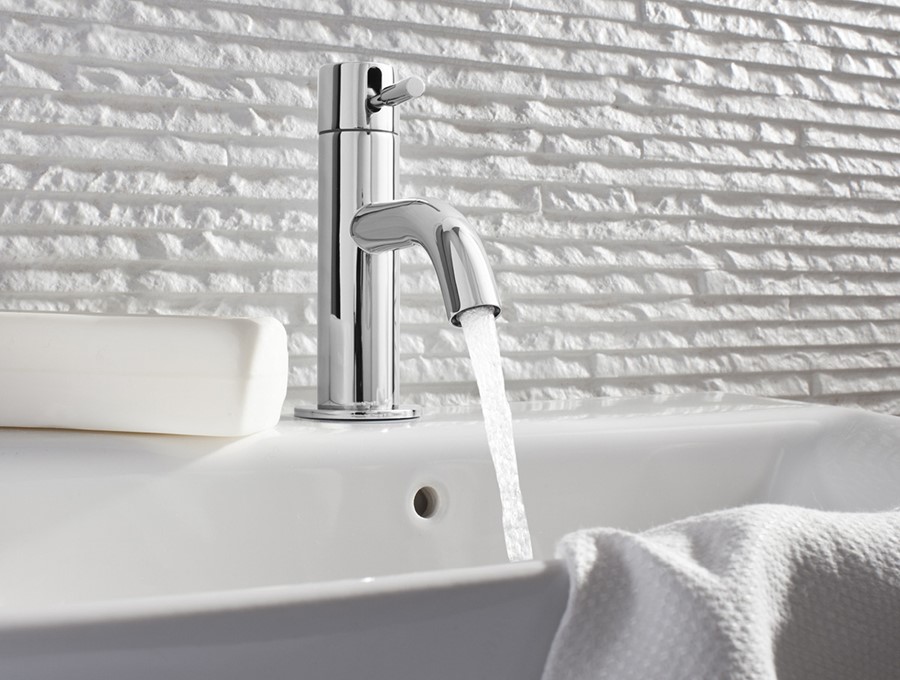

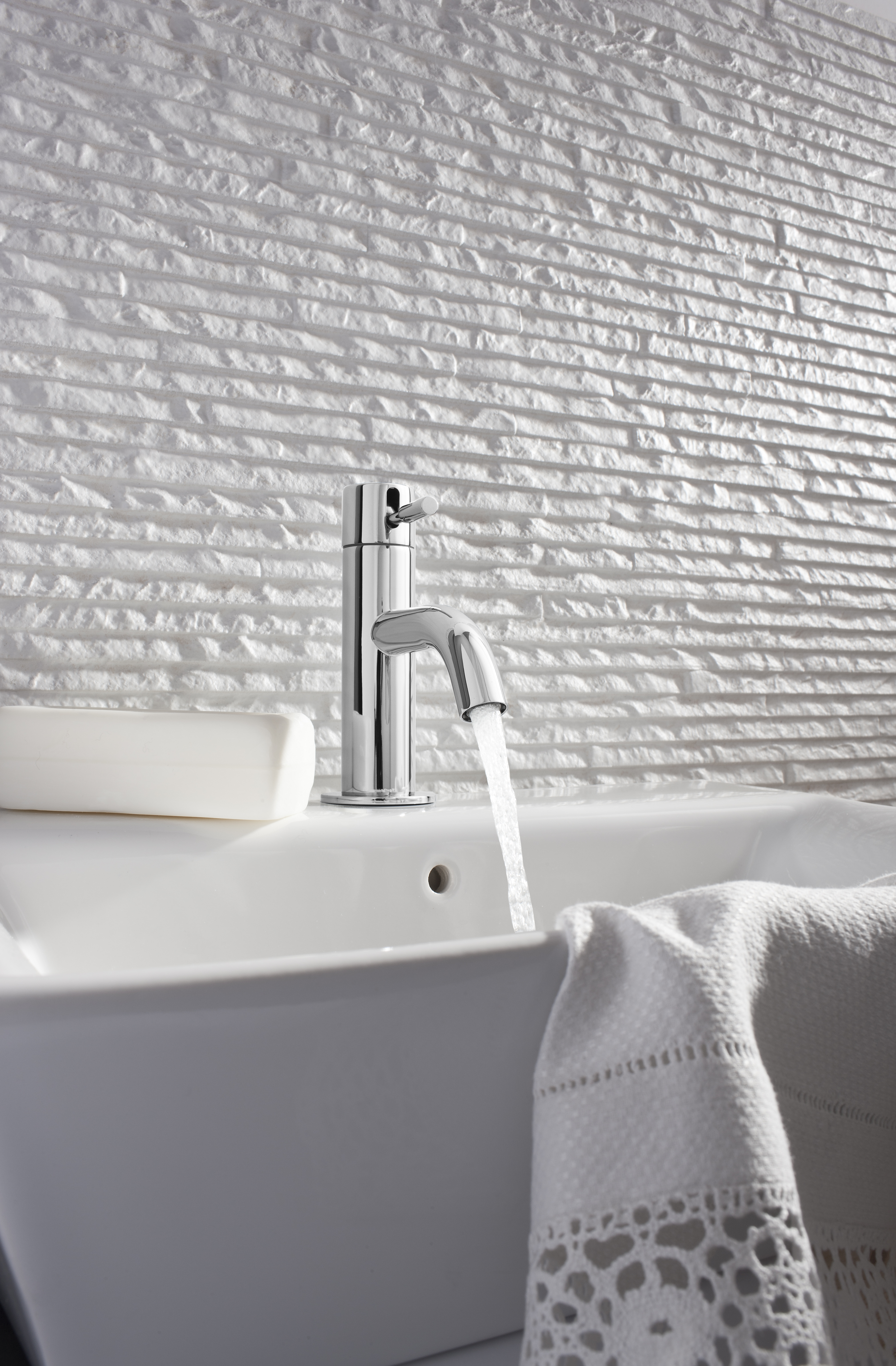

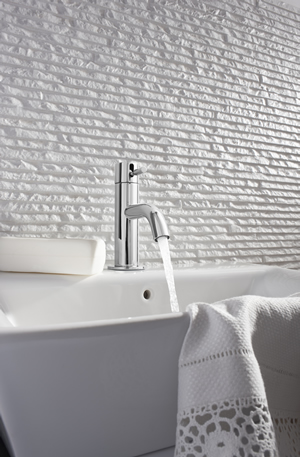

Design Mini Basin Monobloc
As Shown
| DE114DNC Basin Mini Monobloc-No Pop-up Waste |
Material
| DE114DNC - basin monobloc - Brass |
Nett Weight
| DE114DNC - basin monobloc - 1.13kg |
Gross Weight Including Packaging
| DE114DNC - basin monobloc - 1.25kg |
Packed Dimension
| DE114DNC - 199 x 199 x 85 = 0.0034 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Mount Type: Basin Mounted |
|
Range: Design |
|
Spout Projection: 92mm |
|
Spout Style: Fixed Spout |
|
Lever Type: Single Lever |
|
Water Pressure: LP |
|
Waste: Without pop-up-waste |
| BS110FA1 | base ring from design range |
| 2211_0046_1_N0 | c clamping single nipple mounted |
| X1A031N | cartridge for DE114DNC |
| FT110FC1 | design Basin Flexitail |
| Z0A461C | LEVER FROM DESIGN MINI BASIN MONOBLOC |
| W_X1A031N | WRAS cartridge for DE114DNC |
Downloads
- Specifications - PDF - DE114DNC
-
2D CAD-File - DWG -
DE114DNC
(de114dnc.dwg)
-

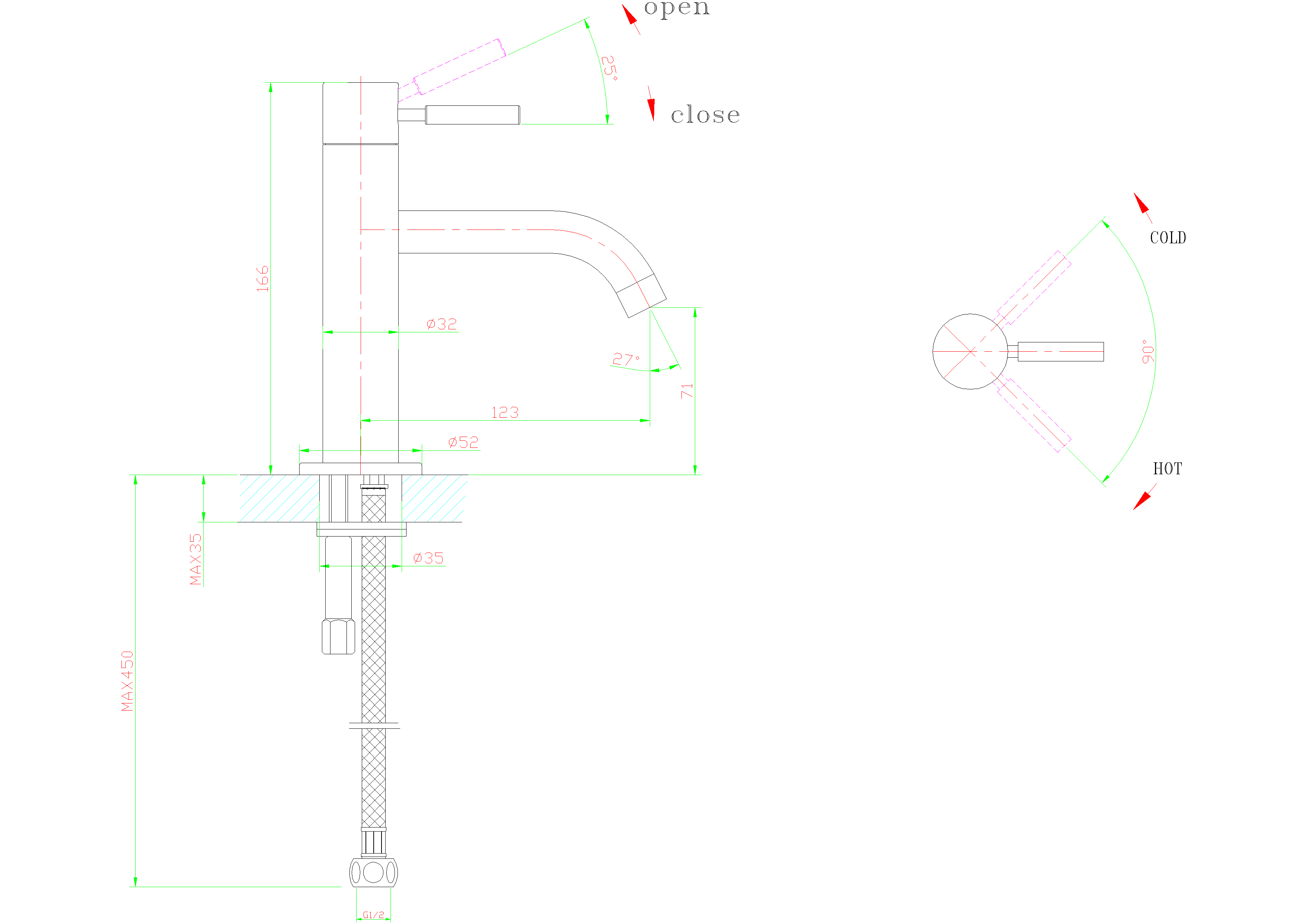

2D Drawing - PDF -
DE114DNC
(de114dnc.pdf)
2D Drawing - PDF - DE114DNC
