Flip Top Basin Wastes

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

BSW0141C Flip Top Basin Waste (slotted)

Colour

BSW0141C - basin Waste - Polished Chrome

Material

BSW0141C - basin Waste - Brass

Size

BSW0141C - 60 x 60 x 90mm

Nett Weight

BSW0141C - basin Waste - 0.294kg

Gross Weight Including Packaging

BSW0141C - basin Waste - 0.35kg

Packed Dimension

BSW0141C - 110 x 70 x 70 = 0.0005 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - BSW0141C (English)

Specifications - PDF - BSW0141C
2D CAD-File - DWG - BSW0141C (bsw0141c.dwg)

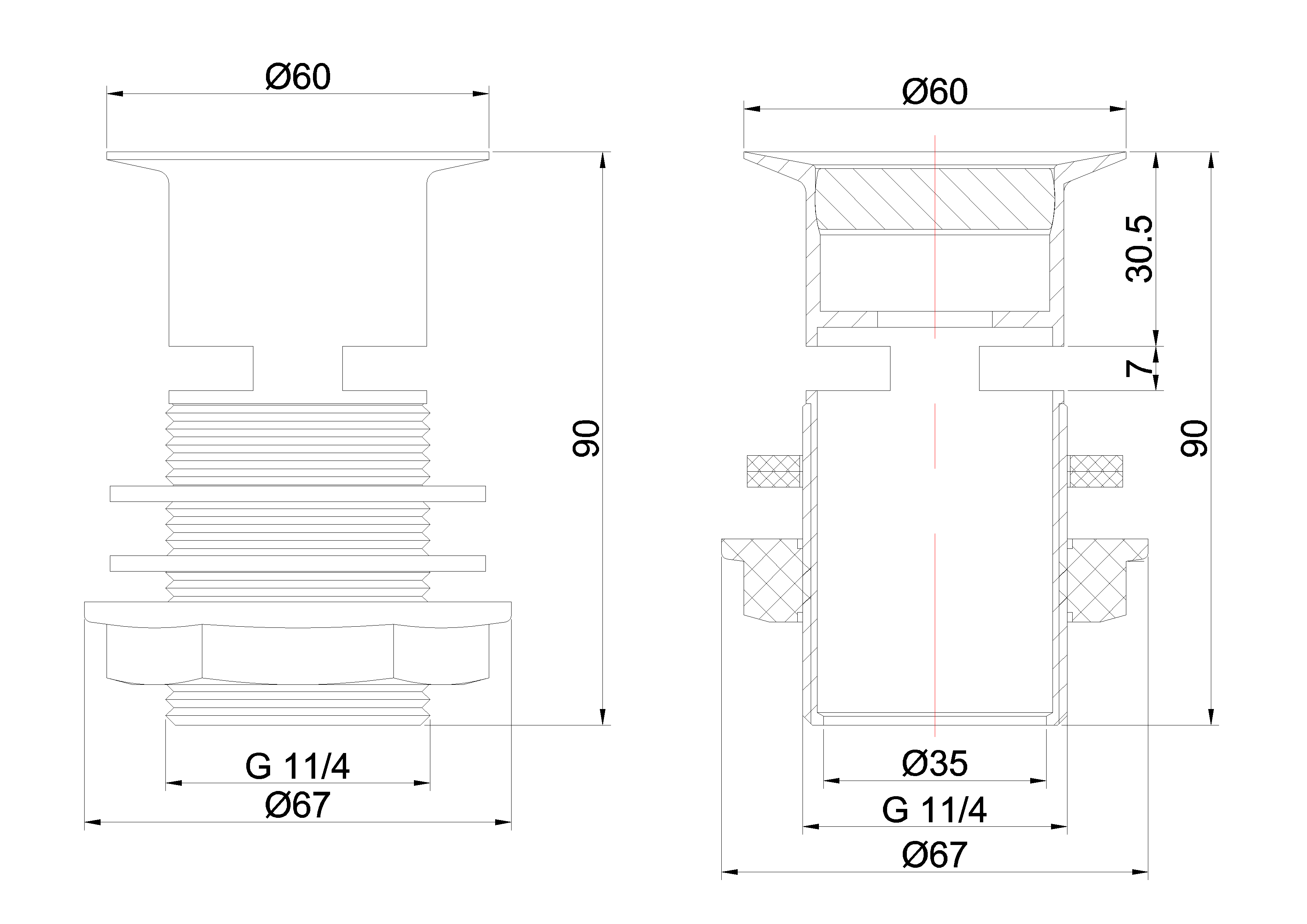

2D Drawing - PDF - BSW0141C (bsw0141c.pdf) 2D Drawing - PDF - BSW0141C

3D IGS - File - IGS - BSW0141C (BSW0141C.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
