Fusion Bath Shower Mixer with Kit

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

MBFU422D Bath Shower Mixer Dual Lever With Kit

Colour

MBFU422D - tap - Polished Chrome

Material

MBFU422D - tap - Brass

Size

MBFU422D - 150 x 230 x 132mm

Nett Weight

MBFU422D - tap - 2.225kg

Gross Weight Including Packaging

MBFU422D - tap - 2.73kg

Packed Dimension

MBFU422D - 270 x 220 x 160 = 0.0095 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Projection: 110mm

Style: Modern

Mount Type: Deck Mounted

Range: Fusion

Water Pressure: LP

MB1002_01	adora cold bath cartridge
MB1028	adora Diverter Assembelly
MB1002_02	adora Hot Bath Cartridge
MB60092	base Ring with EVA Washer

Downloads

Instructions - PDF - MBFU422D (English)

Specifications - PDF - MBFU422D
Specifications - PDF - MBFU422D
2D CAD-File - DWG - MBFU422D (mbfu422d.dwg)

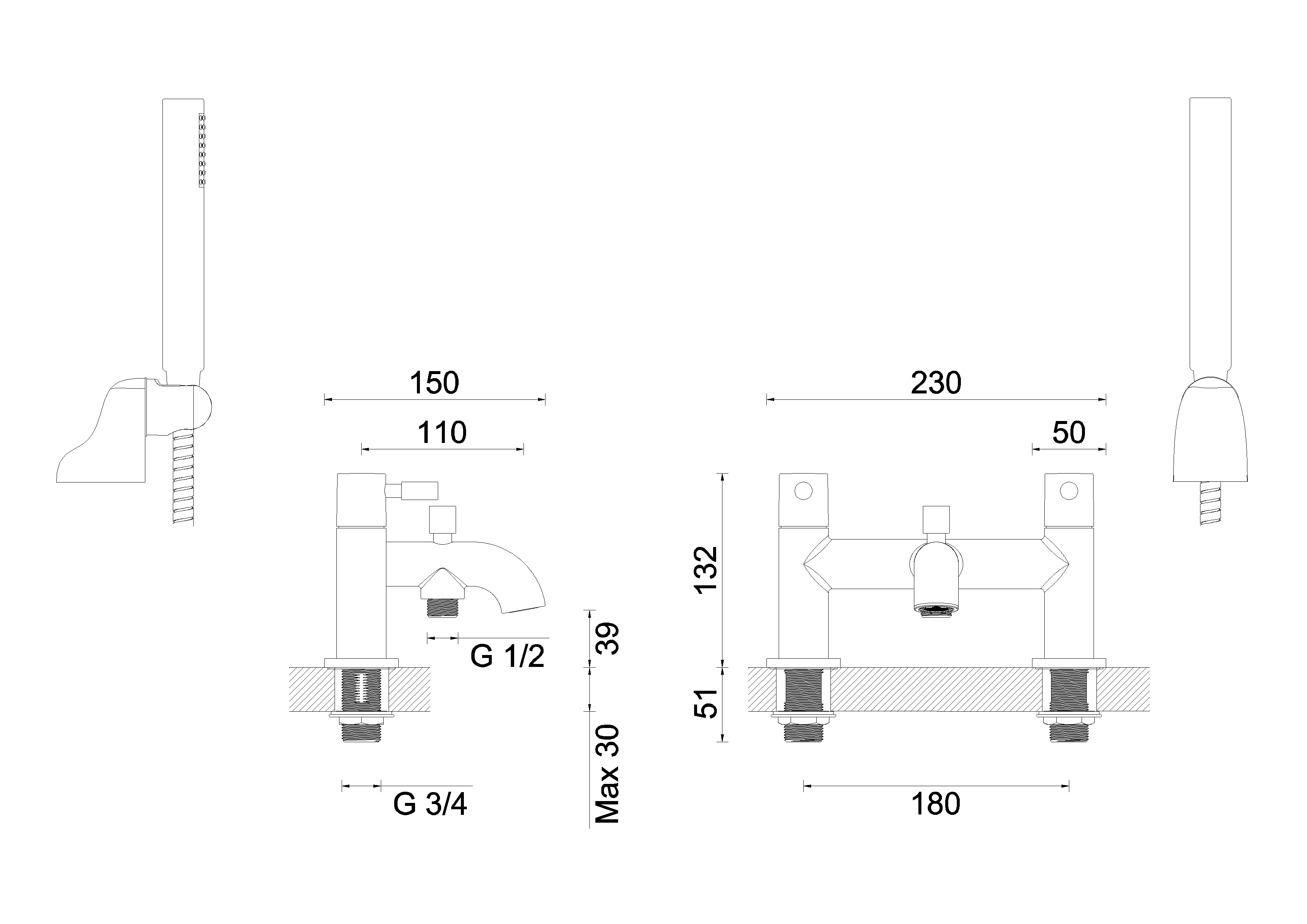

2D Drawing - PDF - MBFU422D (mbfu422d.pdf) 2D Drawing - PDF - MBFU422D

3D IGS - File - IGS - MBFU422D (MBFU422D.igs)

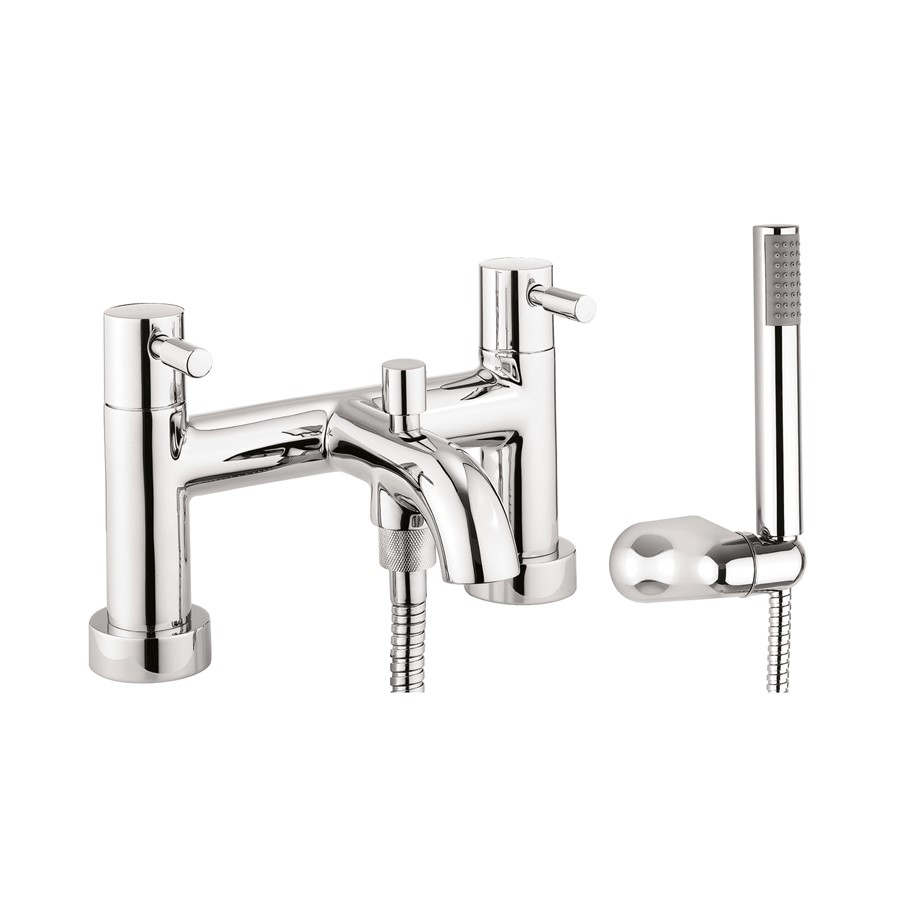

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
