Fusion Multifunction Thermostatic Shower Valve with Fixed Head & Three Mode Shower Kit
As Shown
| MB500RM Fusion thermo exp multi function valve |
Colour
| MB500RM - - Polished Chrome |
Material
| MB500RM - - Brass |
Nett Weight
| MB500RM - - 4.333kg |
Gross Weight Including Packaging
| MB500RM - - 4.99kg |
Packed Dimension
| MB500RM - 1070 x 260 x 80 = 0.0223 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Certificates: WRAS Approved |
|
Certificates: WRAS Approval |
Additional Information
|
Style: Modern |
|
Range: Fusion |
|
Water Pressure: HP1 |
|
Spray Modes: Three mode |
|
WRAS Approval Number 1405377 |
| MB1107 | 3 Mode Handset for MB500RM |
| A07087-1 | bracket for shower kits SK9 |
| MB1106 | fixed Head for MB500RM |
| MB1114 | flow Handle for MB500RM |
| MB1109 | shower Hose for MB500RM, MB510SQ |
| MB1113 | thermostatic Cartridge for MB500RM |
Downloads
- Specifications - PDF - MB500RM
- Specifications - PDF - MB500RM
-
2D CAD-File - DWG -
MB500RM
(mb500rm-cad.dwg)
-

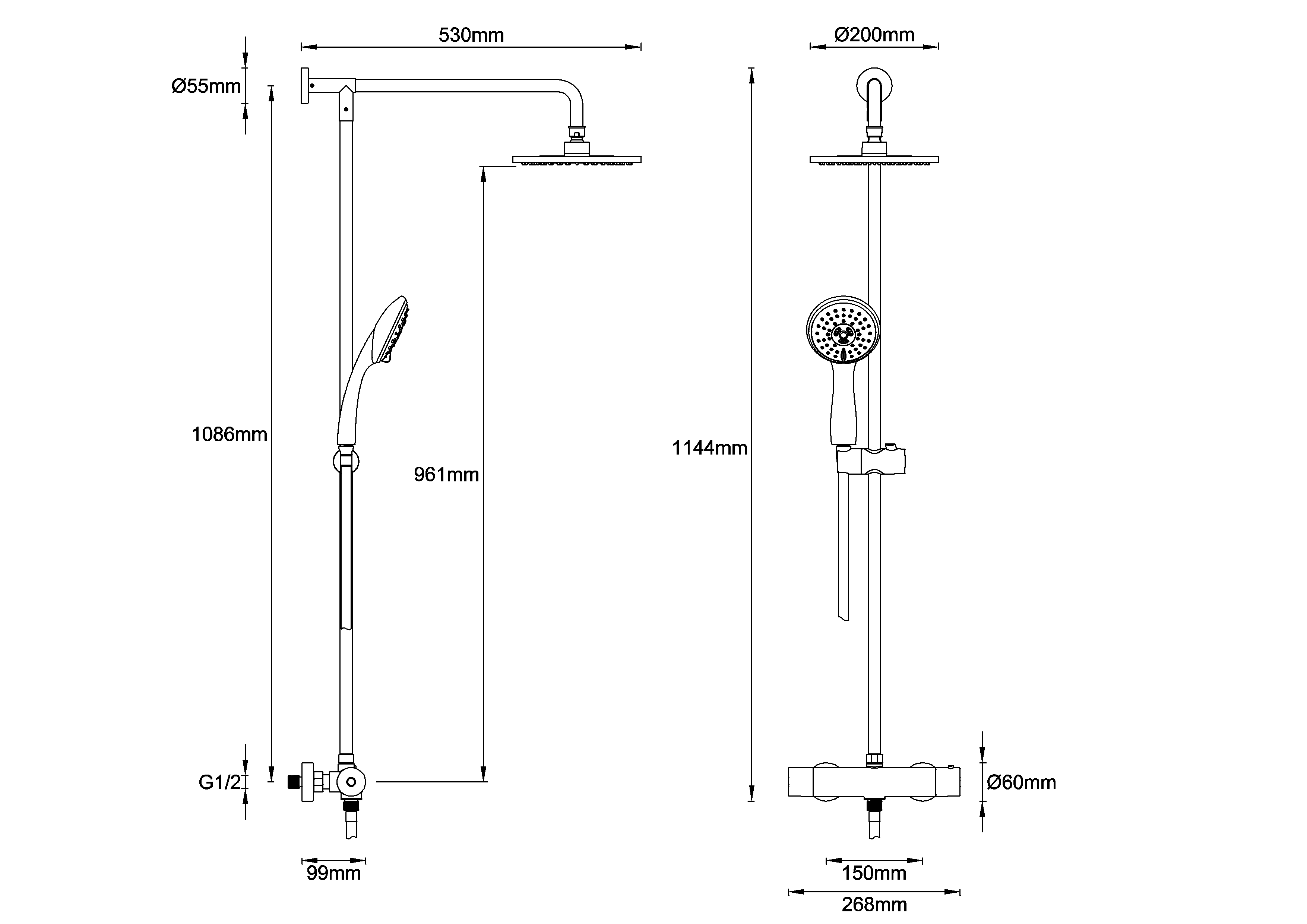

2D Drawing - PDF -
MB500RM
(mb500rm-cad.pdf)
2D Drawing - PDF - MB500RM
