Kai Lever Bath Shower Mixer with Kit
As Shown
| KL422DC Bath Shower Mixer Dual Lever |
Material
| KL422DC - bath shower mixer - Brass |
Nett Weight
| KL422DC - bath shower mixer - 4kg |
Gross Weight Including Packaging
| KL422DC - bath shower mixer - 4.3kg |
Packed Dimension
| KL422DC - 250 x 250 x 235 = 0.0147 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Mount Type: Deck Mounted |
|
Range: Kai Lever |
|
Spout Projection: 122mm |
|
Spout Style: Fixed Spout |
|
Lever Type: Twin Lever |
|
Water Pressure: LP |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 10.32 | 17.95 | 22.4 | 31.7 | 19.3 | n/a | n/a |
| PRO974C | c finish 1.5m hose |
| X1A018N_C | KL422DC COLD VALVE |
| X2A018N_H | KL422DC HOT VALVE |
Downloads
- Specifications - PDF - KL422DC
-

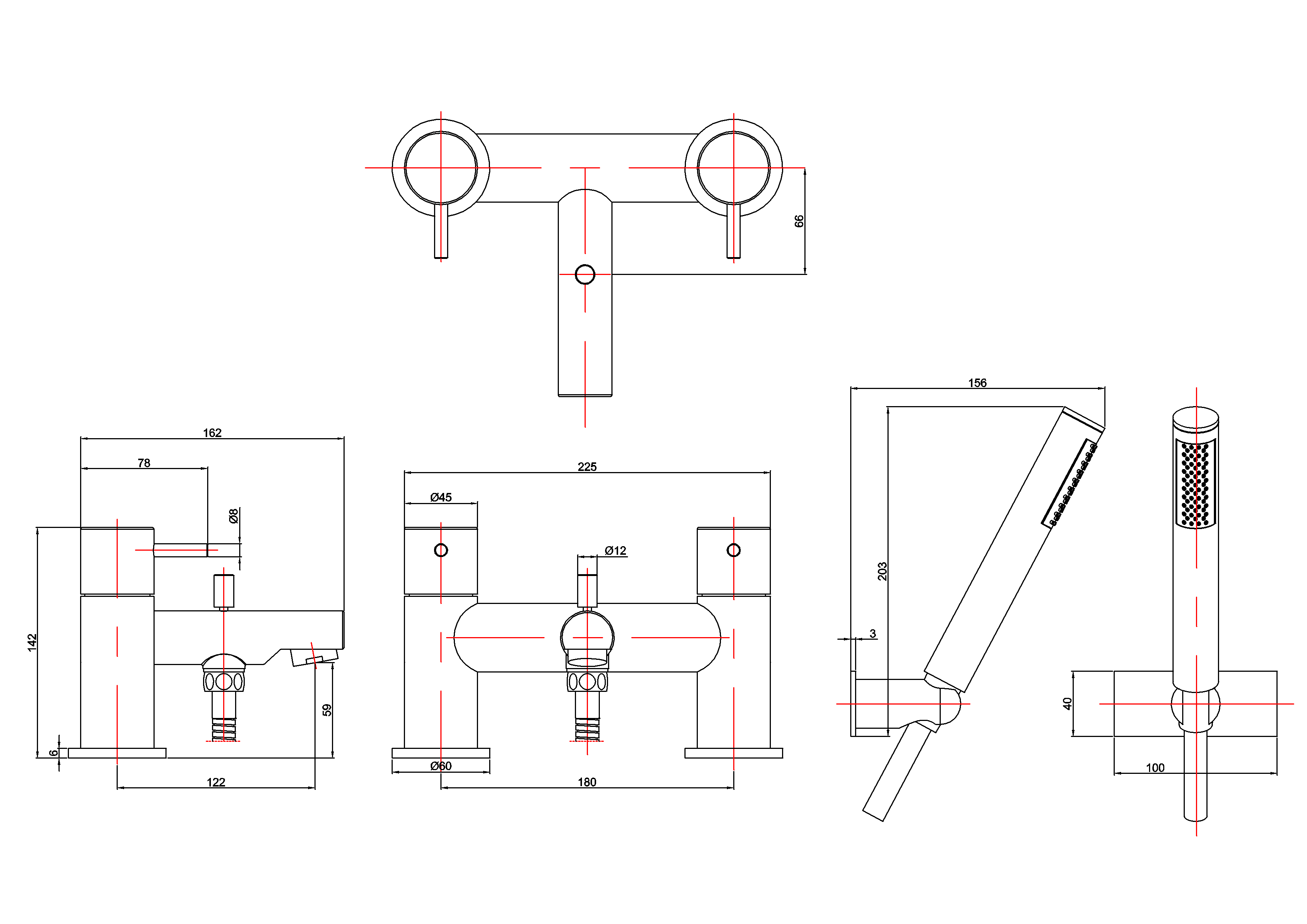

2D CAD-File - DWG -
KL422DC
(kl422dc-cad.dwg)
-
2D Drawing - PDF -
KL422DC
(kl422dc-cad.pdf)
2D Drawing - PDF - KL422DC
