Kai Thermostatic Shower Valve
As Shown
| EV1210EC Thermostatic shower mixer |
Colour
| EV1210EC - - Polished Chrome |
Material
| EV1210EC - - Brass |
Nett Weight
| EV1210EC - - 1.52kg |
Gross Weight Including Packaging
| EV1210EC - - 1.73kg |
Packed Dimension
| EV1210EC - 380 x 90 x 70 = 0.0024 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Style: Modern |
|
Mount Type: Wall Mounted |
|
Range: Kai |
|
Product Notes: Perfect for use with any Crosswater shower kit |
|
Product Notes: Compatible with RM-SHUTOFF |
|
Water Pressure: HP1 |
|
Thermo Type: Thermostatic |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 4 | 8 | 9.5 | 14.7 | 18.8 | n/a | n/a |
| CG1210FA2 | flow cartridge |
| LV1210FB2 | handle Flow |
| LV1210FA2 | handle On, Off |
| TCG1210FA2 | thermostatic cartridge |
Downloads
- Specifications - PDF - EV1210EC
-
2D CAD-File - DWG -
EV1210EC
(ev1210ec-cad.dwg)
-

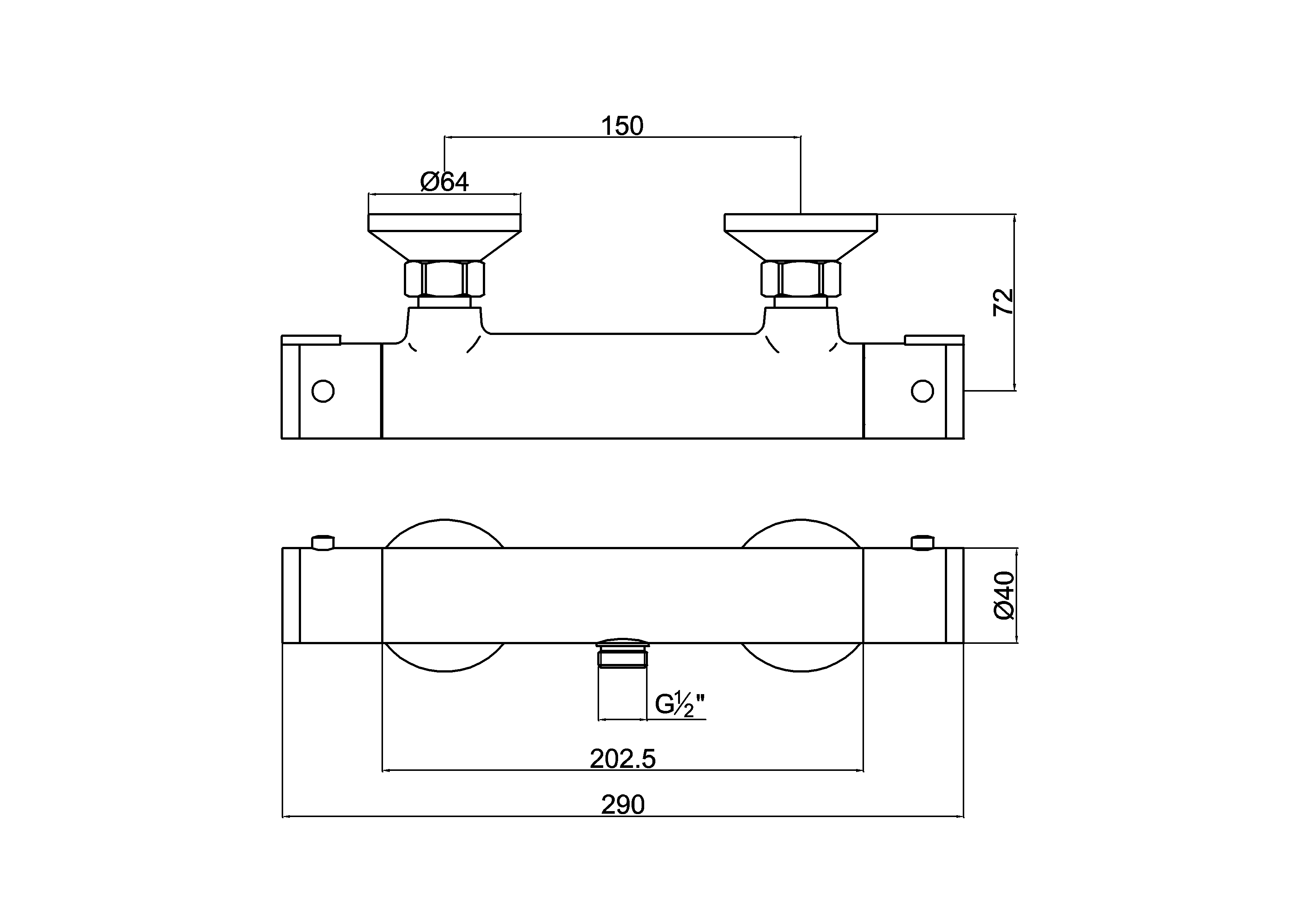

2D Drawing - PDF -
EV1210EC
(ev1210ec-cad.pdf)
2D Drawing - PDF - EV1210EC
