Wisp Thermostatic Bath Shower Mixer with Kit
Product Options
finish options
Matt Black
|
Chrome
|
As Shown
| WP418TFC Thermostatic floor standing BSM with kit |
Material
| WP418TFC - bath filler - Brass |
Nett Weight
| WP418TFC - bath filler - 11.67kg |
Gross Weight Including Packaging
| WP418TFC - bath filler - 12kg |
Packed Dimension
| WP418TFC - 1085 x 360 x 150 = 0.0586 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Certificates: WRAS Approved |
Additional Information
|
Style: Modern |
|
Mount Type: Floor Standing |
|
Range: Wisp |
|
Spout Projection: 300mm |
|
Spout Style: Fixed Spout |
|
Lever Type: Single Lever |
|
Water Pressure: HP2 |
|
Thermo Type: Thermostatic |
|
WRAS Approval Number 1610031 |
| X1A138N | diverter cartridge (part 22) from WP418TFC |
| M9B532C | WP418TFC spout (parts #1.2, 8.18, 19, 39) |
Downloads
- Specifications - PDF - WP418TFC
-
2D CAD-File - DWG -
WP418TFC
(wp418tfc-cad.dwg)
-

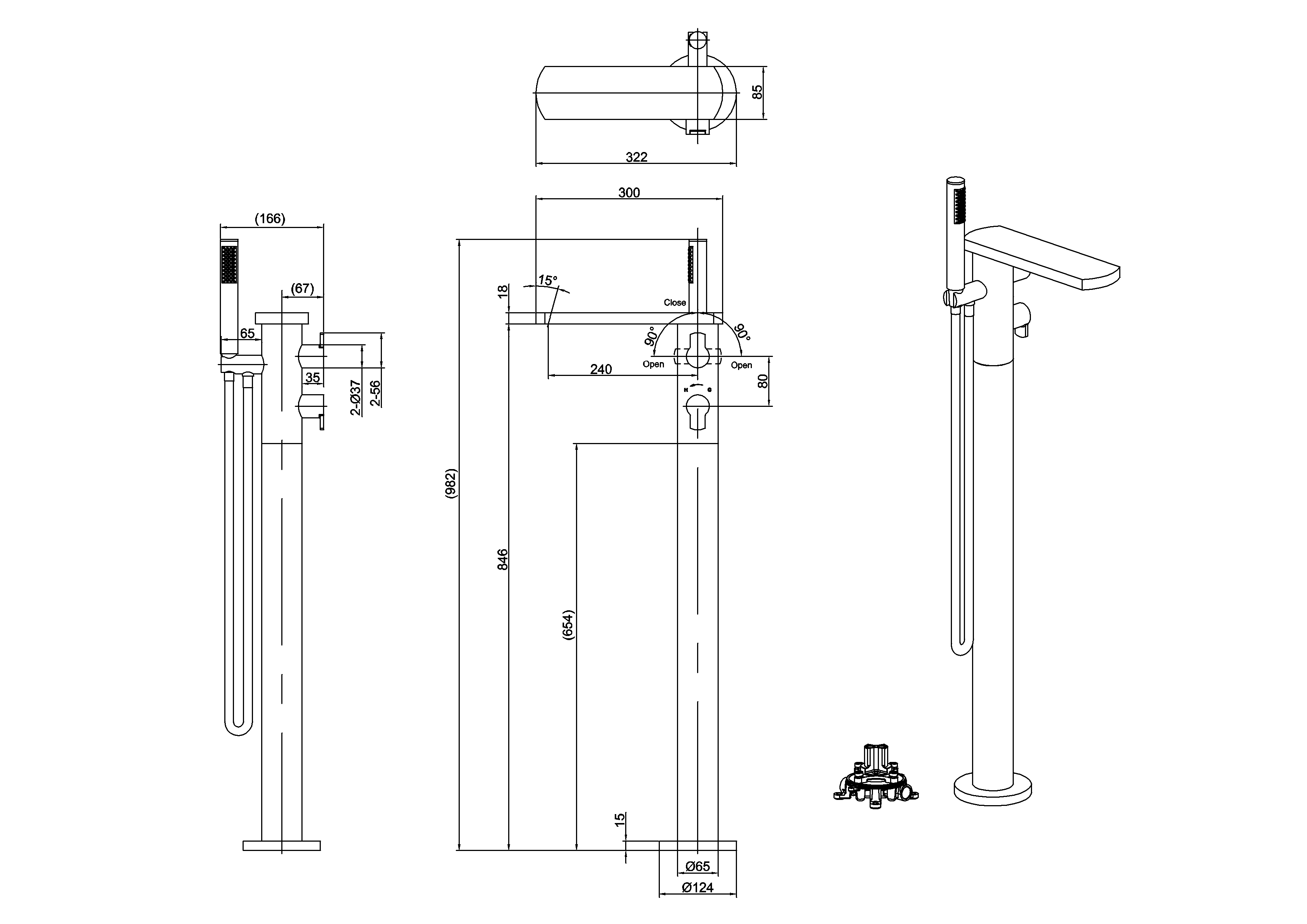

2D Drawing - PDF -
WP418TFC
(wp418tfc-cad.pdf)
2D Drawing - PDF - WP418TFC
