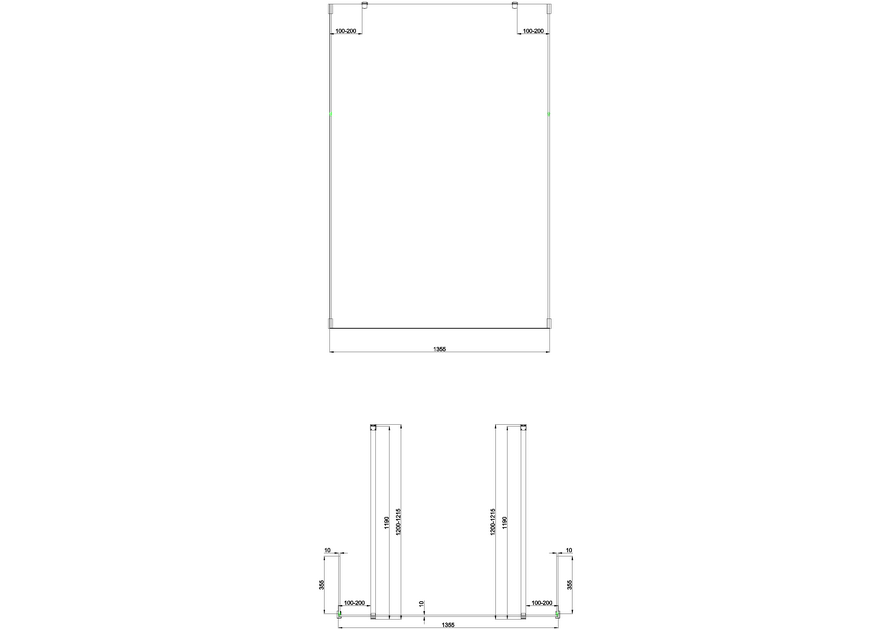

Walk Through with Fixed Deflector Panels
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GR030010CF_V2 Gallery 10 Panel 1997x255 Clear |
| GRBRACEF Gallery Glass-Wall Brace Br Brass |
| GRBRACKF Gallery Glass-Glass Bracket Br Brass |
| GRBUBBLESEAL Gallery Bubble Seal 2000mm for GRBRACK |
Colour
| GR140010CF_V2 - walk in profile - Clear |
| GR030010CF_V2 - walk in profile - Clear |
| GRBRACEF - bracing bar - Brushed Brass+ |
| GRBRACKF - bracket - Brushed Brass+ |
| GRBUBBLESEAL - seal - |
Material
| GR140010CF_V2 - walk in profile - Glass |
| GR030010CF_V2 - walk in profile - Glass |
| GRBRACEF - bracing bar - Stainless Steel |
| GRBRACKF - bracket - Stainless Steel |
| GRBUBBLESEAL - seal - 0 |
Size
| GR140010CF_V2 - 10 x 1355 x 1997mm |
| GR030010CF_V2 - 10 x 255 x 1997mm |
| GRBRACEF - 1280 x 45 x 45mm |
| GRBRACKF - 115 x 75 x 45mm |
| GRBUBBLESEAL - 1880 x 20 x 10mm |
Nett Weight
| GR140010CF_V2 - walk in profile - 69kg |
| GR030010CF_V2 - walk in profile - 13kg |
| GRBRACEF - bracing bar - 1.2kg |
| GRBRACKF - bracket - 0.5kg |
| GRBUBBLESEAL - seal - 0.6kg |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GR030010CF_V2 - walk in profile - 15kg |
| GRBRACEF - bracing bar - 1.25kg |
| GRBRACKF - bracket - 0.58kg |
| GRBUBBLESEAL - seal - 0.75kg |
Packed Dimension
| GR140010CF_V2 - 75 x 1415 x 2080 = 0.2207 m3 |
| GR030010CF_V2 - 75 x 315 x 2080 = 0.0491 m3 |
| GRBRACEF - 1290 x 50 x 50 = 0.0032 m3 |
| GRBRACKF - 125 x 85 x 55 = 0.0006 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Brushed brass finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR140010CF+ GR030010CF+ GRBRACKF GRBUBBLESEAL GRBRACEF
(Gallery WALK IN--straight bracing bar x 2 and fixed panel x 2.dwg)
-
2D Drawing - PDF -
GR140010CF+ GR030010CF+ GRBRACKF GRBUBBLESEAL GRBRACEF
(Gallery WALK IN--straight bracing bar x 2 and fixed panel x 2.pdf)
2D Drawing - PDF - GR140010CF+ GR030010CF+ GRBRACKF GRBUBBLESEAL GRBRACEF
-
3D STEP - File - STEP
-
GR140010CF+ GR030010CF+ GRBRACKF GRBUBBLESEAL GRBRACEF
(Gallery WALK IN straight bracing bar x2 with fixed panel x2.STEP)
