Recess with Wall Bracing Bar
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GRPROFILEF Gallery Wall Profile Brushed Brass |
| GRBRACEF Gallery Glass-Wall Brace Br Brass |
Colour
| GR140010CF_V2 - walk in profile - Clear |
| GRPROFILEF - walk in profile - Brushed Brass+ |
| GRBRACEF - bracing bar - Brushed Brass+ |
Material
| GR140010CF_V2 - walk in profile - Glass |
| GRPROFILEF - walk in profile - Stainless Steel |
| GRBRACEF - bracing bar - Stainless Steel |
Nett Weight
| GR140010CF_V2 - walk in profile - 69kg |
| GRPROFILEF - walk in profile - 2.8kg |
| GRBRACEF - bracing bar - 1.2kg |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GRPROFILEF - walk in profile - 3kg |
| GRBRACEF - bracing bar - 1.25kg |
Packed Dimension
| GR140010CF_V2 - 75 x 1415 x 2080 = 0.2207 m3 |
| GRPROFILEF - 2100 x 50 x 50 = 0.0053 m3 |
| GRBRACEF - 1290 x 50 x 50 = 0.0032 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Brushed brass finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-

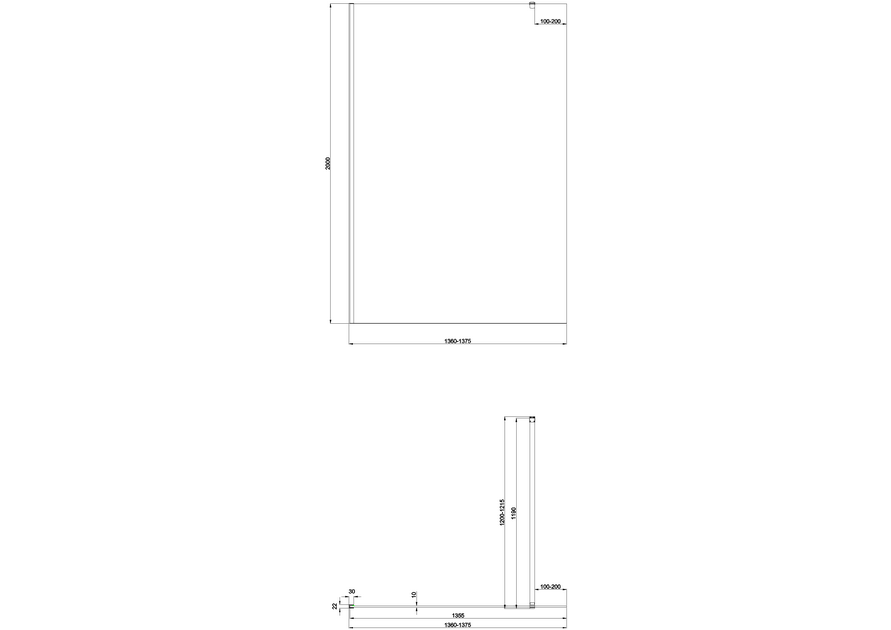

2D CAD-File - DWG -
GR140010CF+ GRPROFILEF GRBRACEF
(Gallery WALK IN--straight bracing bar.dwg)
-
2D Drawing - PDF -
GR140010CF+ GRPROFILEF GRBRACEF
(Gallery WALK IN--straight bracing bar.pdf)
2D Drawing - PDF - GR140010CF+ GRPROFILEF GRBRACEF
