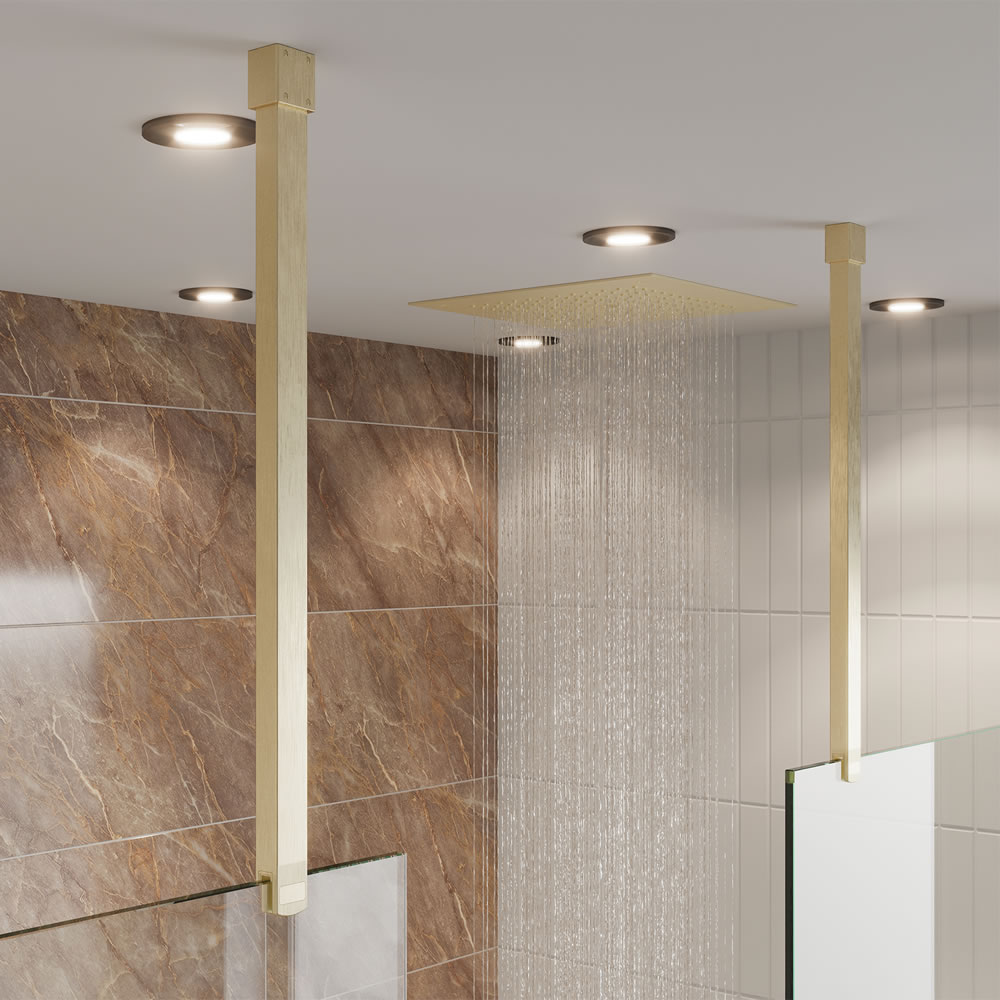

Recess with Double Panel
As Shown
| GR100010CF_V2 Gallery 10 Panel 1997x955 Clear |
| GRPROFILEF Gallery Wall Profile Brushed Brass |
| GRCEILBRACEF Gallery Ceiling Brace Br Brass |
Colour
| GR100010CF_V2 - walk in profile - Clear |
| GRPROFILEF - walk in profile - Brushed Brass+ |
| GRCEILBRACEF - bracing bar - Brushed Brass+ |
Material
| GR100010CF_V2 - walk in profile - Glass |
| GRPROFILEF - walk in profile - Stainless Steel |
| GRCEILBRACEF - bracing bar - Stainless Steel |
Nett Weight
| GR100010CF_V2 - walk in profile - 48kg |
| GRPROFILEF - walk in profile - 2.8kg |
| GRCEILBRACEF - bracing bar - 0.4kg |
Gross Weight Including Packaging
| GR100010CF_V2 - walk in profile - 50kg |
| GRPROFILEF - walk in profile - 3kg |
| GRCEILBRACEF - bracing bar - 0.43kg |
Packed Dimension
| GR100010CF_V2 - 75 x 1015 x 2080 = 0.1583 m3 |
| GRPROFILEF - 2100 x 50 x 50 = 0.0053 m3 |
| GRCEILBRACEF - 680 x 60 x 60 = 0.0024 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Brushed brass finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR100010CF+ GRPROFILEF GRCEILBRACEF
(Gallery WALK IN--ceiling bracing bar x 2.dwg)
-

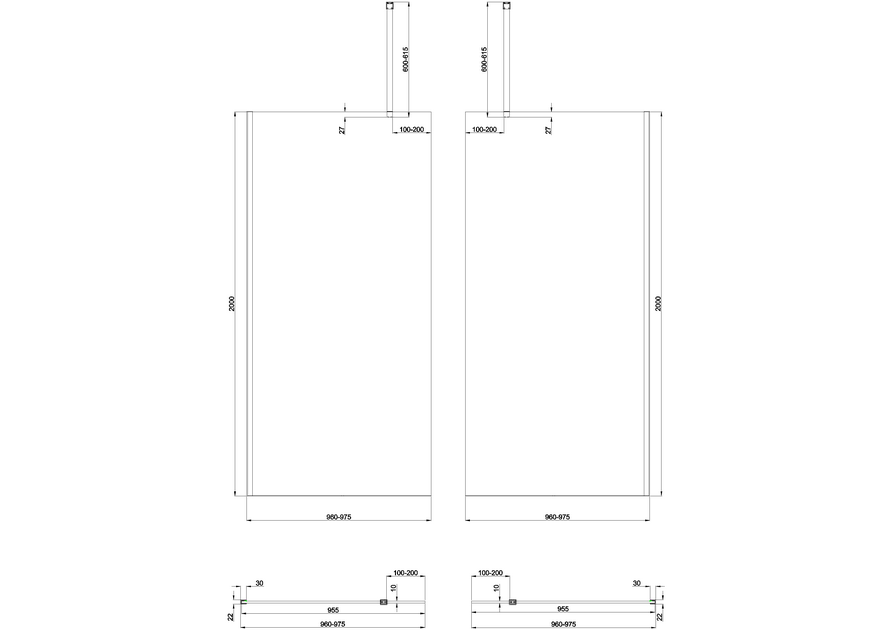

2D Drawing - PDF -
GR100010CF+ GRPROFILEF GRCEILBRACEF
(Gallery WALK IN--ceiling bracing bar x 2.pdf)
2D Drawing - PDF - GR100010CF+ GRPROFILEF GRCEILBRACEF
-
3D STEP - File - STEP
-
GR100010CF+ GRPROFILEF GRCEILBRACEF
(Gallery WALK IN ceiling bracing bar x2.STEP)
