Corner with Hinged Deflector
As Shown
| GR100010CF_V2 Gallery 10 Panel 1997x955 Clear |
| GR050010CF_V2 Gallery 10 Panel 1997x455 Clear |
| GRPROFILEF Gallery Wall Profile Brushed Brass |
| GRDEFLEC300 Gallery Deflector Panel 2000x300 |
| GRDEFHINGEF Gallery Defl Panel Hinge x2 Br Brass |
| GRBRACEF Gallery Glass-Wall Brace Br Brass |
Colour
Material
Size
| GR100010CF_V2 - 10 x 955 x 1997mm |
| GR050010CF_V2 - 10 x 455 x 1997mm |
| GRPROFILEF - 2000 x 30 x 22mm |
| GRDEFLEC300 - 8 x 300 x 2000mm |
| GRDEFHINGEF - 100 x 100 x 60mm |
| GRBRACEF - 1280 x 45 x 45mm |
Nett Weight
Gross Weight Including Packaging
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Brushed brass finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
- Instructions - PDF - GR100010CF_V2 (English)
- Instructions - PDF - GR050010CF_V2 (English)
- Instructions - PDF - GRDEFLEC300 (English)
-
2D CAD-File - DWG -
GR100010CF+ GRPROFILEF GRDEFLEC300 GRDEFHINGEF GRBRACEF
(Gallery WALK IN--straight bracing bar with side panel and deflector panel 2.dwg)
-

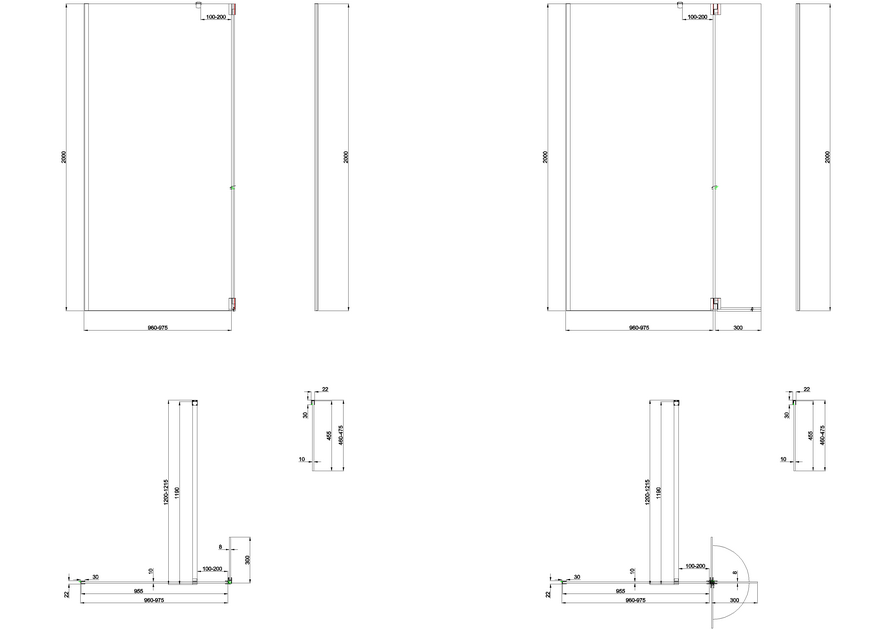

2D Drawing - PDF -
GR100010CF+ GRPROFILEF GRDEFLEC300 GRDEFHINGEF GRBRACEF
(Gallery WALK IN--straight bracing bar with side panel and deflector panel 2.pdf)
2D Drawing - PDF - GR100010CF+ GRPROFILEF GRDEFLEC300 GRDEFHINGEF GRBRACEF
-
3D STEP - File - STEP
-
GR100010CF+ GRPROFILEF GRDEFLEC300 GRDEFHINGEF GRBRACEF
(Gallery WALK IN--straight bracing bar with side panel and deflector panel 2.STEP)
