Recess with Fixed Deflector
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GR030010CF_V2 Gallery 10 Panel 1997x255 Clear |
| GRPROFILEV Gallery Wall Profile Brushed Stainless |
| GRBRACEV Gallery Glass-Wall Brace Br Stainless |
| GRBRACKV Gallery Glass-Glass Bracket Br Stain |
| GRBUBBLESEAL Gallery Bubble Seal 2000mm for GRBRACK |
Colour
Material
Size
| GR140010CF_V2 - 10 x 1355 x 1997mm |
| GR030010CF_V2 - 10 x 255 x 1997mm |
| GRPROFILEV - 2000 x 30 x 22mm |
| GRBRACEV - 1280 x 45 x 45mm |
| GRBRACKV - 115 x 75 x 45mm |
| GRBUBBLESEAL - 1880 x 20 x 10mm |
Nett Weight
Gross Weight Including Packaging
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Brushed stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR140010CF+GR030010CF+ GRPROFILEV GRBRACKV GRBUBBLESEAL GRBRACEV
(Gallery WALK IN--straight bracing bar with fixed panel.dwg)
-

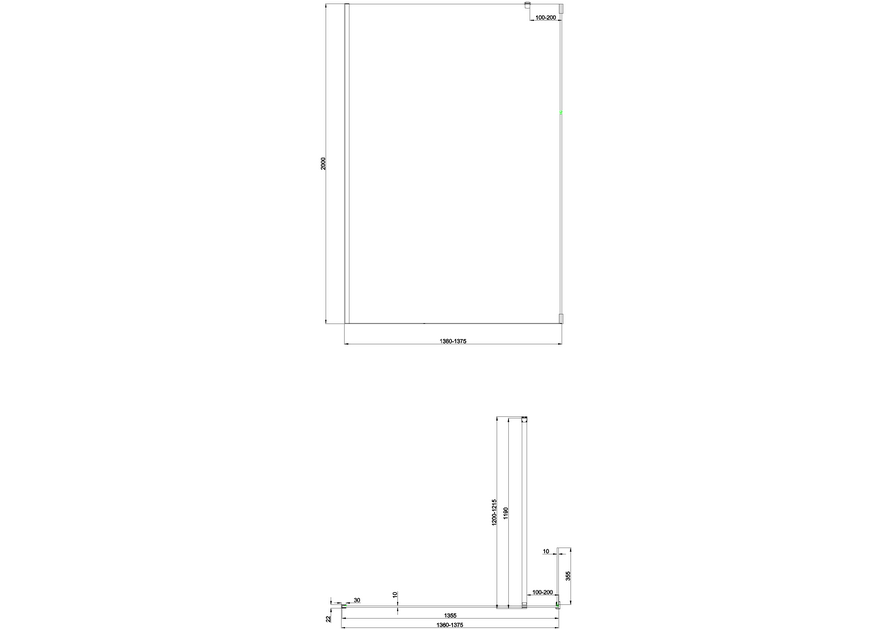

2D Drawing - PDF -
GR140010CF+GR030010CF+ GRPROFILEV GRBRACKV GRBUBBLESEAL GRBRACEV
(Gallery WALK IN--straight bracing bar with fixed panel.pdf)
2D Drawing - PDF - GR140010CF+GR030010CF+ GRPROFILEV GRBRACKV GRBUBBLESEAL GRBRACEV
-
3D STEP - File - STEP
-
GR140010CF+GR030010CF+ GRPROFILEV GRBRACKV GRBUBBLESEAL GRBRACEV
(Gallery WALK IN staight bracing bar with fixed panel.STEP)
