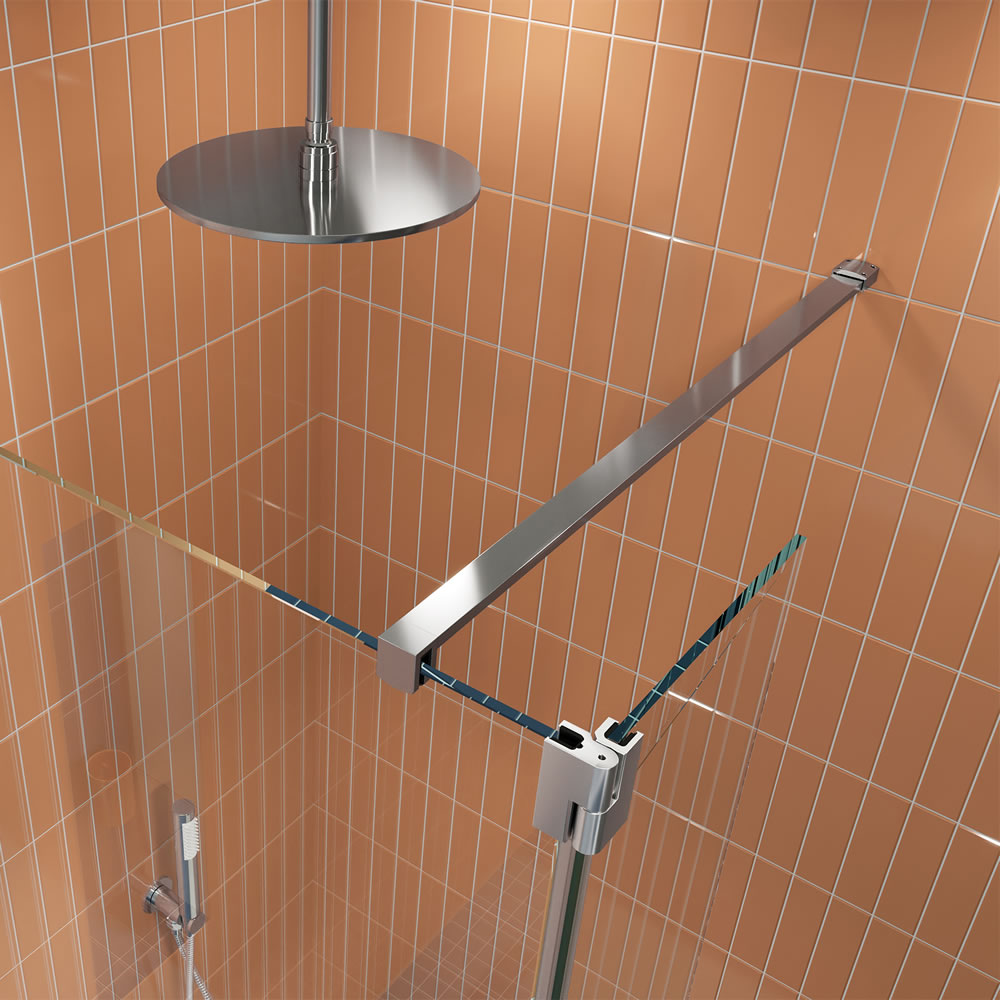

Recess with Glass to Wall Bracing Bar and Hinged Deflector Panel
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GRPROFILEPSS Gallery Wall Profile Polished Stainless |
| GRDEFLEC300 Gallery Deflector Panel 2000x300 |

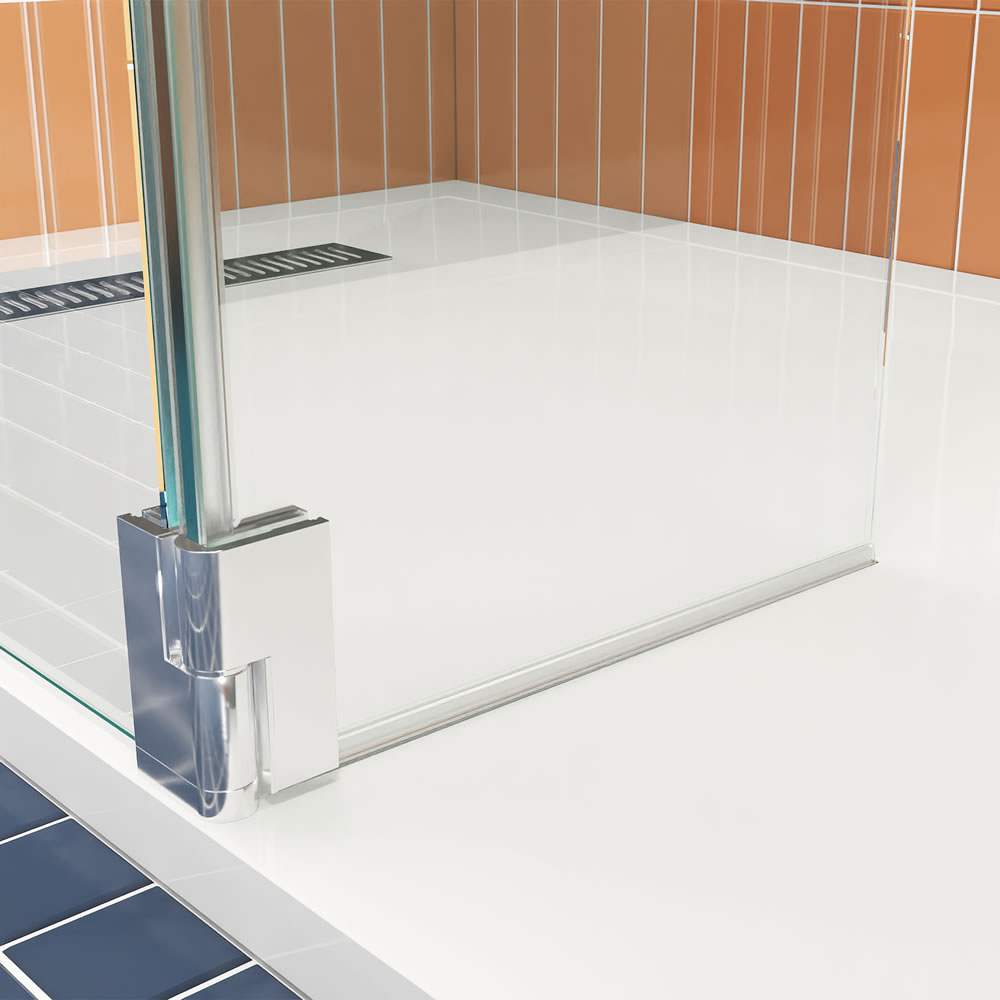

| GRDEFHINGEPSS Gallery Defl Panel Hinge x2 Pol Stain |
| GRBRACEPSS Gallery Glass-Wall Brace Pol Stainless |
Colour
Material
Size
| GR140010CF_V2 - 10 x 1355 x 1997mm |
| GRPROFILEPSS - 2000 x 30 x 22mm |
| GRDEFLEC300 - 8 x 300 x 2000mm |
| GRDEFHINGEPSS - 100 x 100 x 60mm |
| GRBRACEPSS - 1280 x 45 x 45mm |
Nett Weight
| GR140010CF_V2 - walk in profile - 69kg |
| GRPROFILEPSS - walk in profile - 2.8kg |
| GRDEFLEC300 - walk in profile - 12kg |
| GRDEFHINGEPSS - hinge - 1kg |
| GRBRACEPSS - bracing bar - 1.2kg |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GRPROFILEPSS - walk in profile - 3kg |
| GRDEFLEC300 - walk in profile - 13.5kg |
| GRDEFHINGEPSS - hinge - 1.05kg |
| GRBRACEPSS - bracing bar - 1.25kg |
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR140010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRBRACEPSS
(Gallery WALK IN--straight bracing bar with deflector panel.dwg)
-

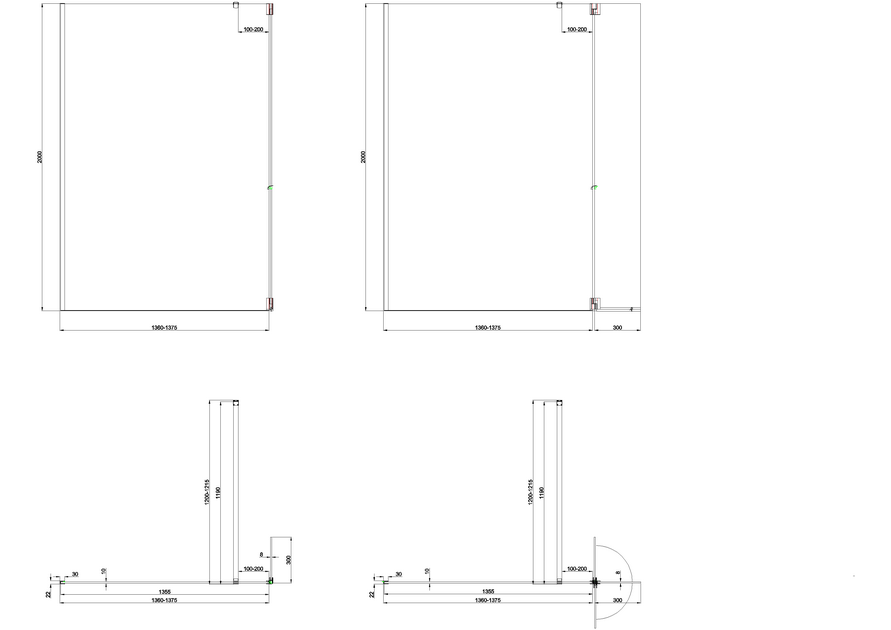

2D Drawing - PDF -
GR140010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRBRACEPSS
(Gallery WALK IN--straight bracing bar with deflector panel.pdf)
2D Drawing - PDF - GR140010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRBRACEPSS
-
3D STEP - File - STEP
-
GR140010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRBRACEPSS
(Gallery WALK IN staight bracing bar with deflector panel.STEP)
