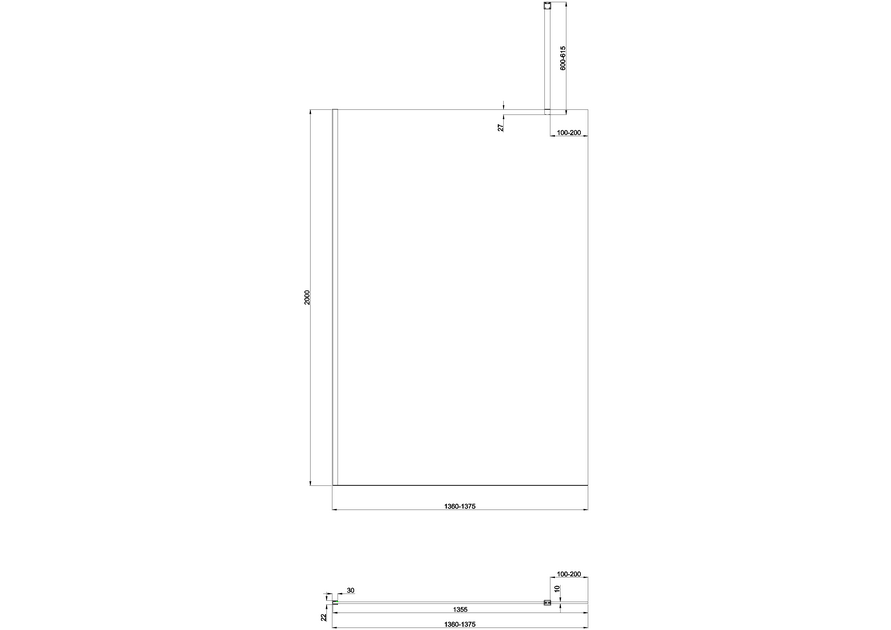

Open Ended with Glass to Ceiling Bracing Bar
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GRPROFILEPSS Gallery Wall Profile Polished Stainless |
| GRCEILBRACEPSS Gallery Ceiling Brace Pol Stainless |
Colour
| GR140010CF_V2 - walk in profile - Clear |
| GRPROFILEPSS - walk in profile - Polished Stainless Steel |
| GRCEILBRACEPSS - bracing bar - Polished Stainless Steel |
Material
| GR140010CF_V2 - walk in profile - Glass |
| GRPROFILEPSS - walk in profile - Stainless Steel |
| GRCEILBRACEPSS - bracing bar - Stainless Steel |
Size
| GR140010CF_V2 - 10 x 1355 x 1997mm |
| GRPROFILEPSS - 2000 x 30 x 22mm |
| GRCEILBRACEPSS - 670 x 50 x 50mm |
Nett Weight
| GR140010CF_V2 - walk in profile - 69kg |
| GRPROFILEPSS - walk in profile - 2.8kg |
| GRCEILBRACEPSS - bracing bar - 0.4kg |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GRPROFILEPSS - walk in profile - 3kg |
| GRCEILBRACEPSS - bracing bar - 0.43kg |
Packed Dimension
| GR140010CF_V2 - 75 x 1415 x 2080 = 0.2207 m3 |
| GRPROFILEPSS - 2100 x 50 x 50 = 0.0053 m3 |
| GRCEILBRACEPSS - 680 x 60 x 60 = 0.0024 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR140010CF+ GRPROFILEPSS GRCEILBRACEPSS
(Gallery WALK IN--ceiling bracing bar.dwg)
-
2D Drawing - PDF -
GR140010CF+ GRPROFILEPSS GRCEILBRACEPSS
(Gallery WALK IN--ceiling bracing bar.pdf)
2D Drawing - PDF - GR140010CF+ GRPROFILEPSS GRCEILBRACEPSS
-
3D STEP - File - STEP
-
GR140010CF+ GRPROFILEPSS GRCEILBRACEPSS
(Gallery WALK IN ceiling bracing bar.STEP)
